Component Inspection: Injector

  1. Disconnect injector harness connector.
  2. Check resistance between terminals as shown in Fig 1 .

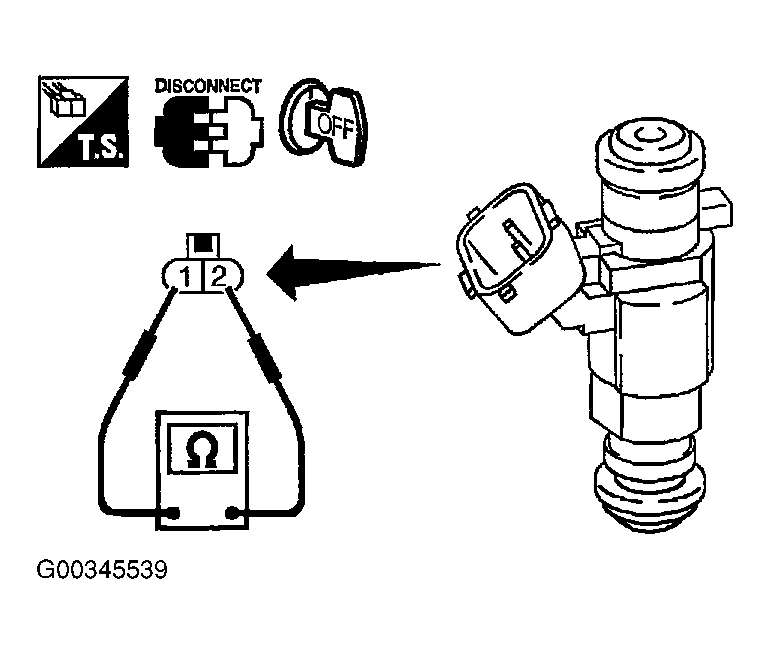

    Fig 1: Testing Injector Resistance
    G00345539Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Resistance: 13.5 - 17.5 ohm [at 10 - 60 O C (50 - 140O F)]
