Monitored Item

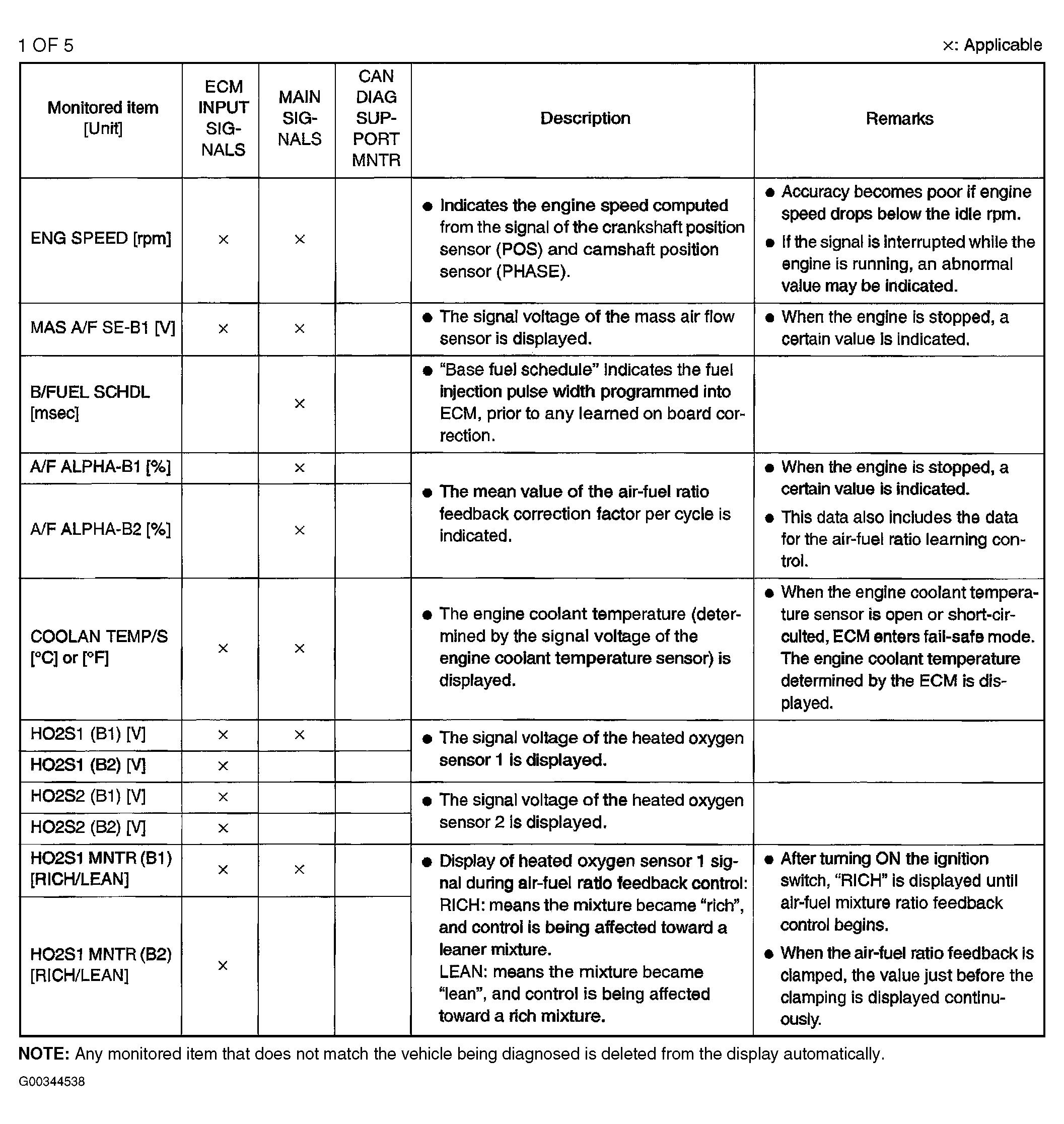

Fig 1: Describing Items Monitored By CONSULT-II In Data Monitor Mode (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

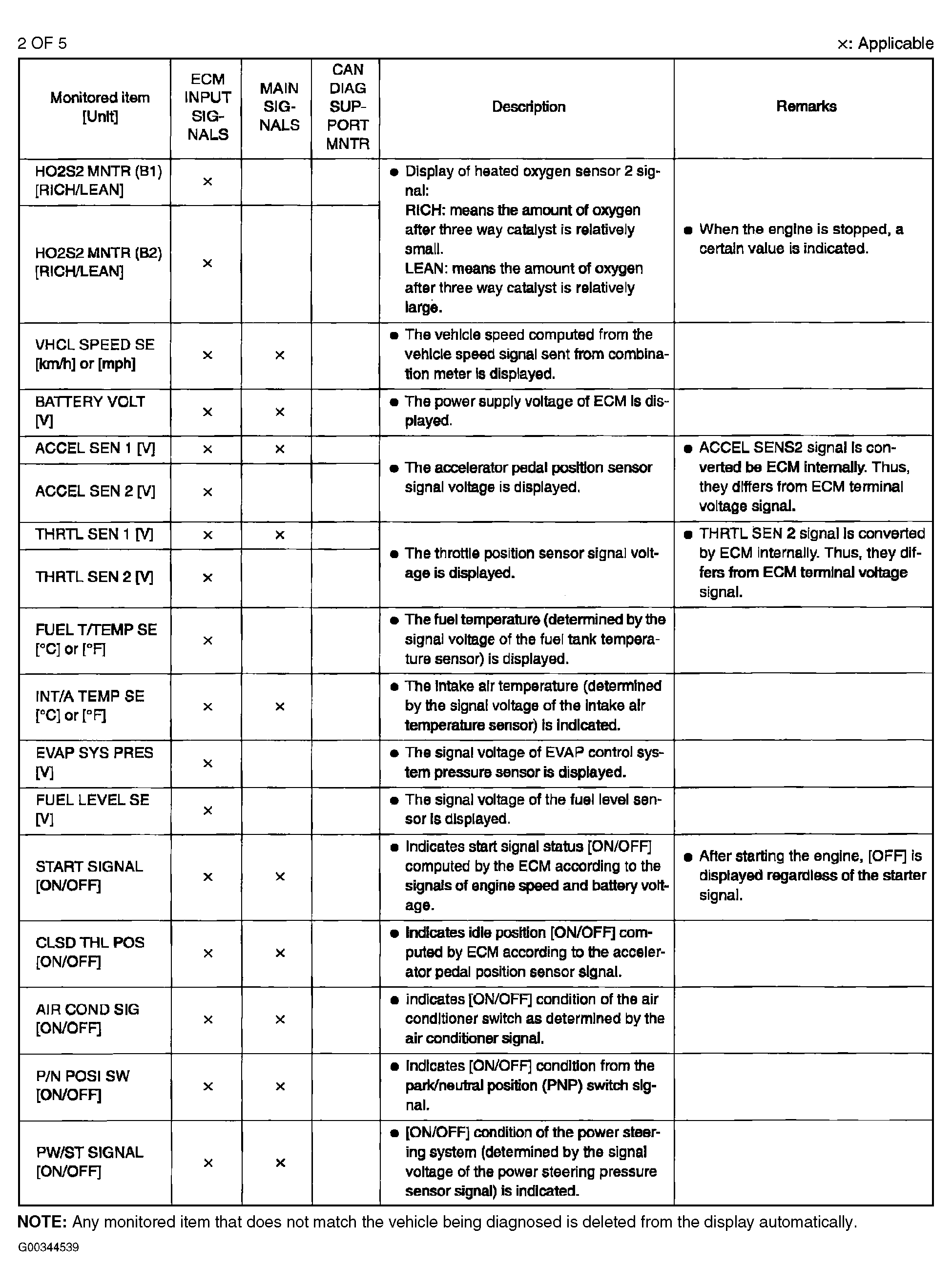

Fig 2: Describing Items Monitored By CONSULT-II In Data Monitor Mode (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

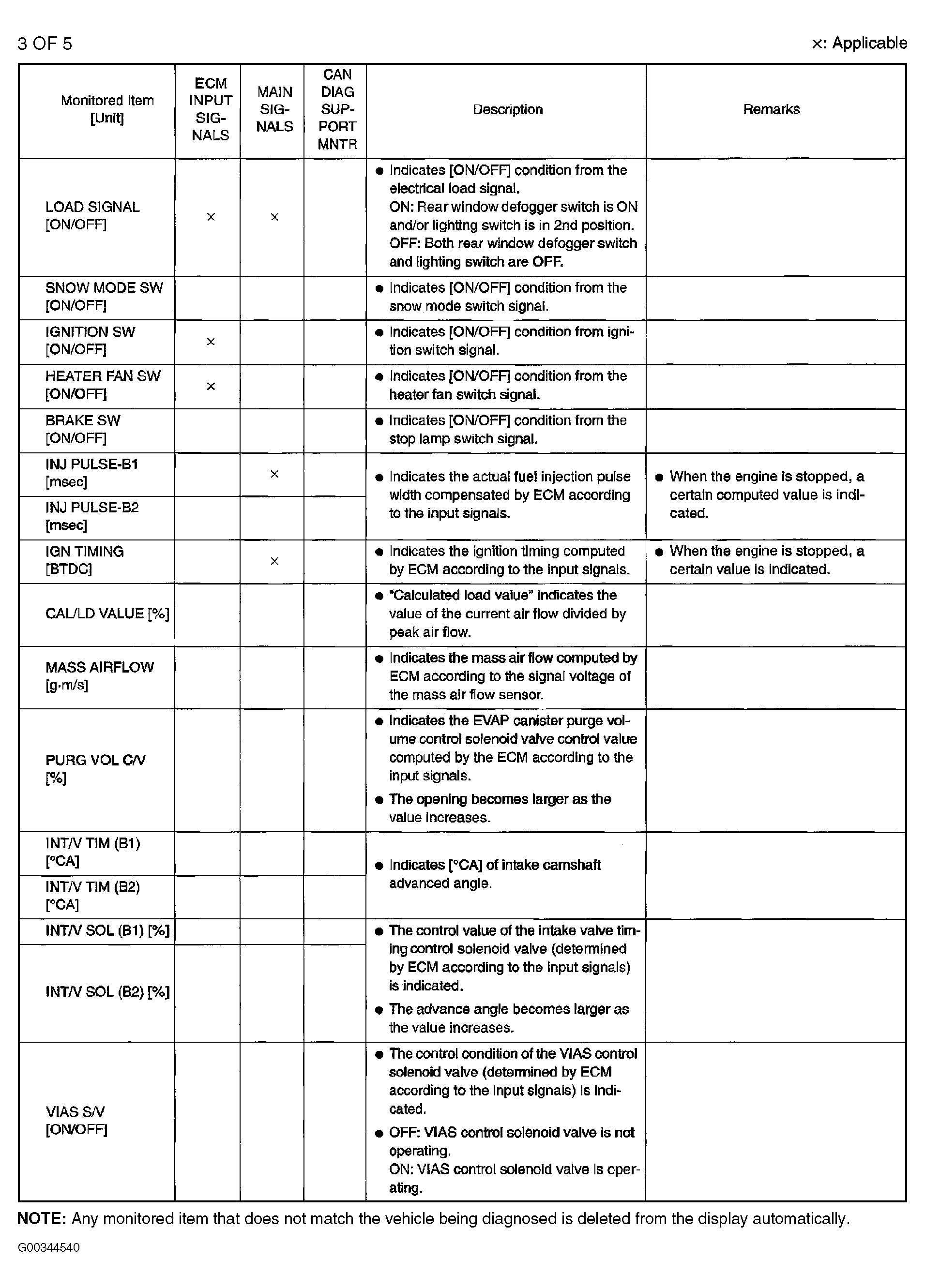

Fig 3: Describing Items Monitored By CONSULT-II In Data Monitor Mode (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

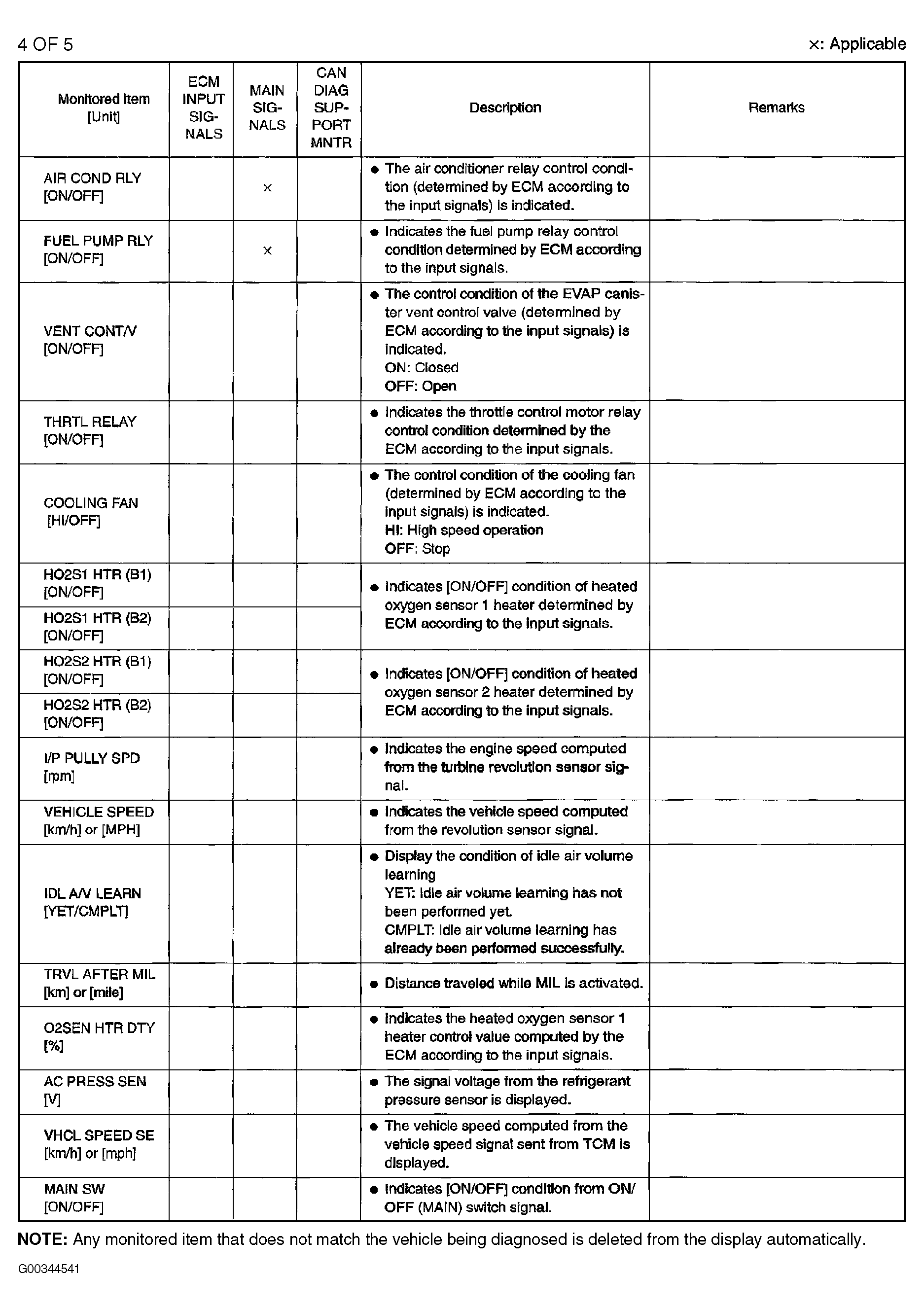

Fig 4: Describing Items Monitored By CONSULT-II In Data Monitor Mode (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

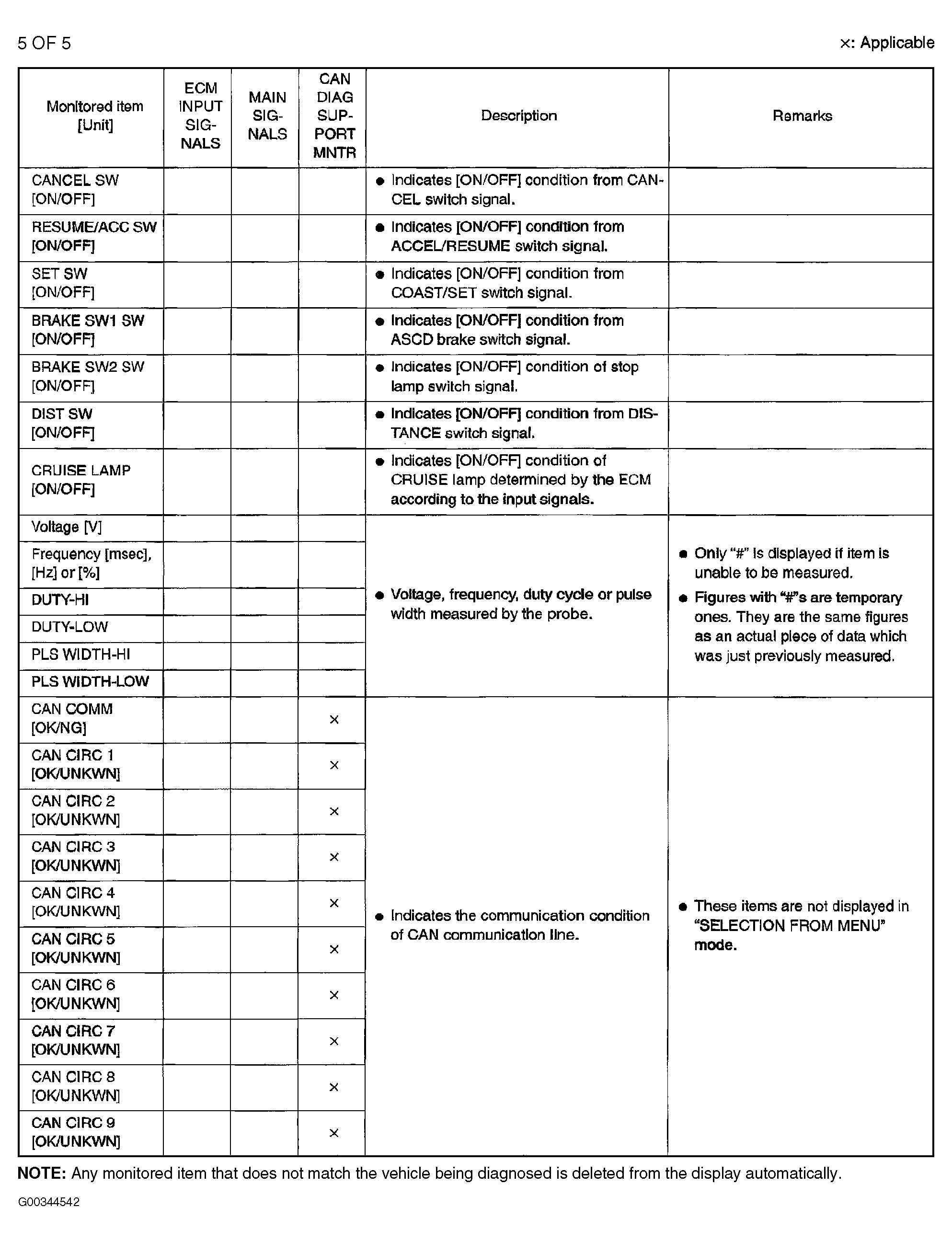

Fig 5: Describing Items Monitored By CONSULT-II In Data Monitor Mode (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
