CONSULT-II Reference Value in Data Monitor

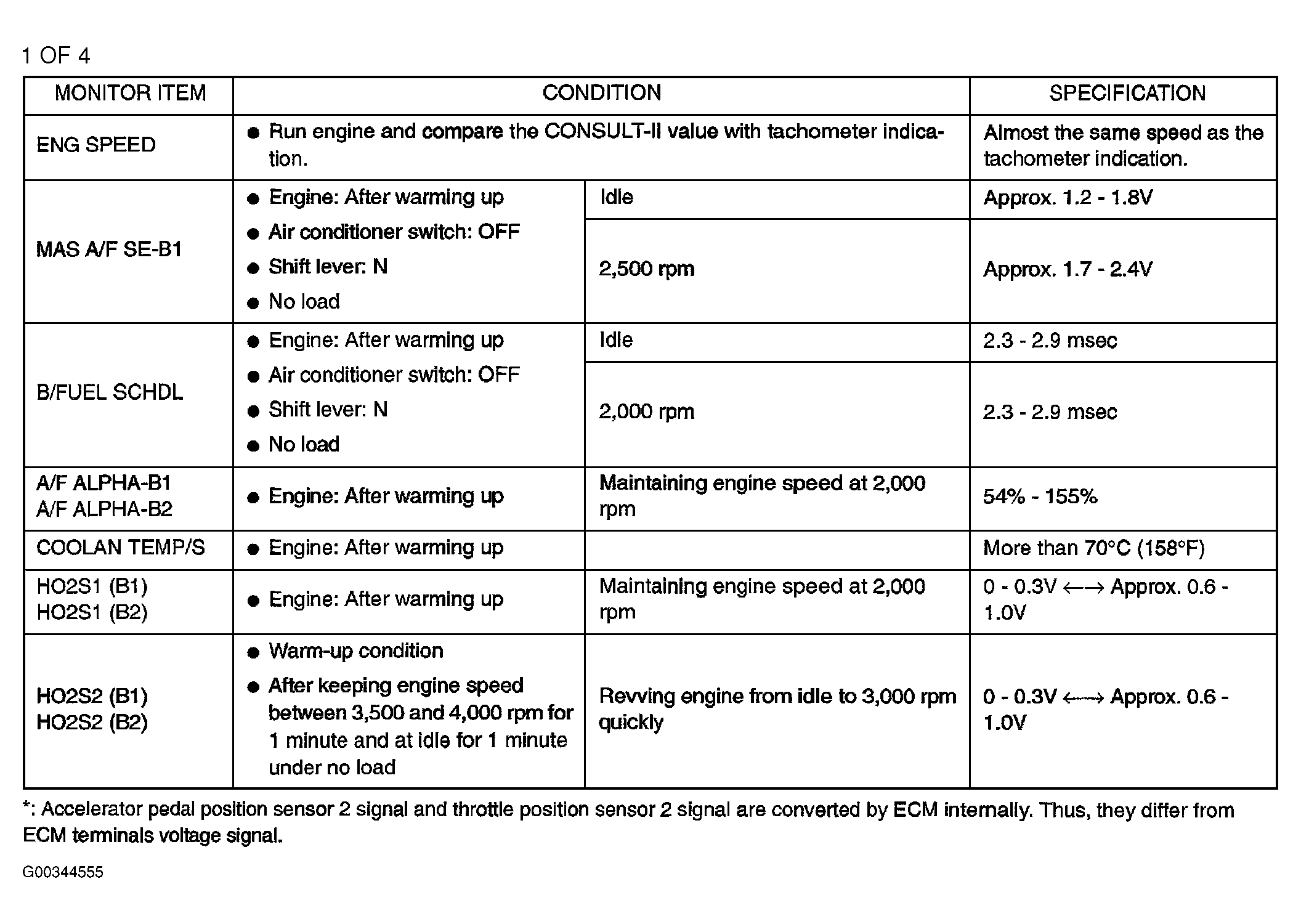

Fig 1: Identifying Monitored Items Supported By Generic Scan Tool (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

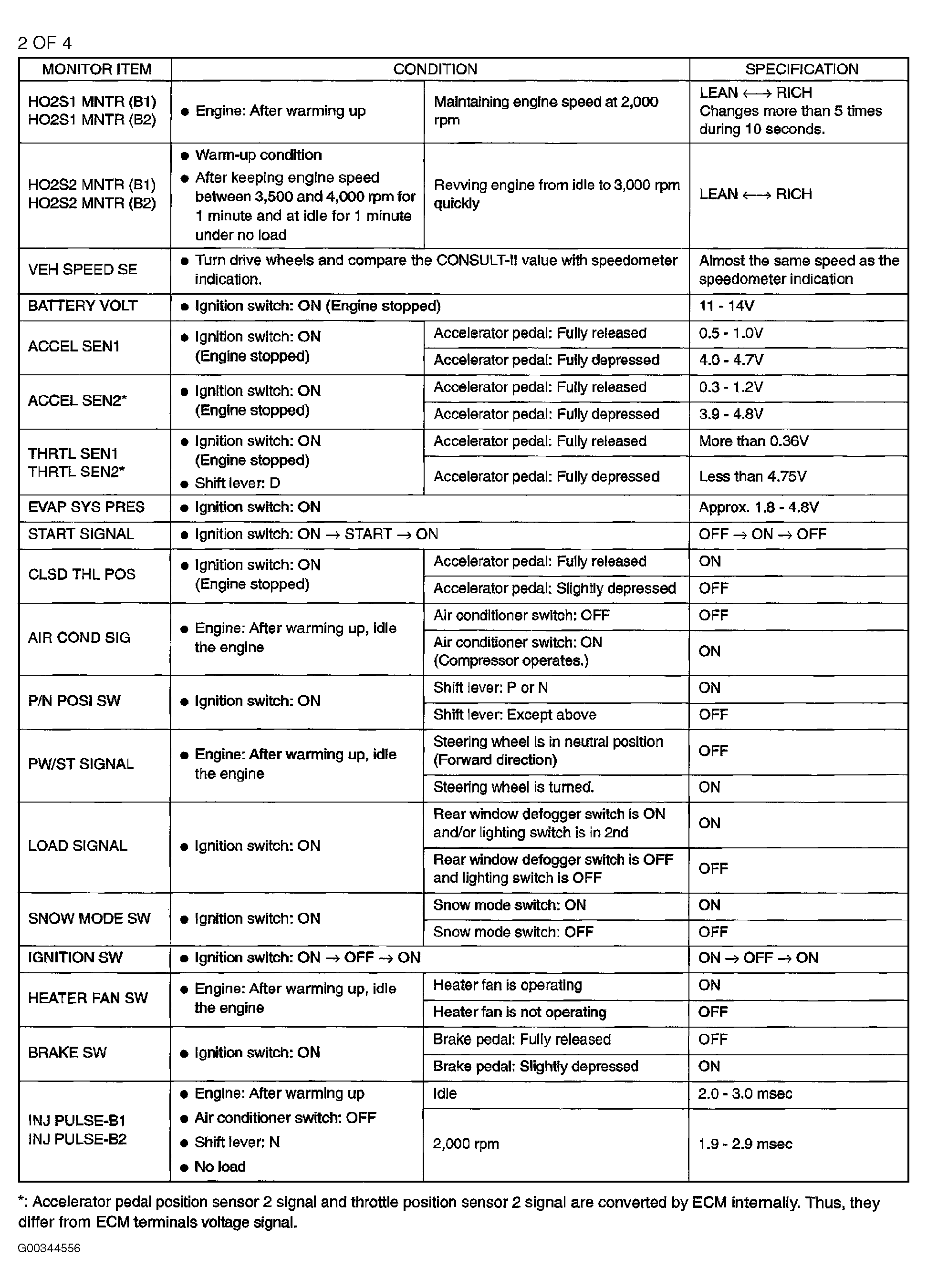

Fig 2: Identifying Monitored Items Supported By Generic Scan Tool (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

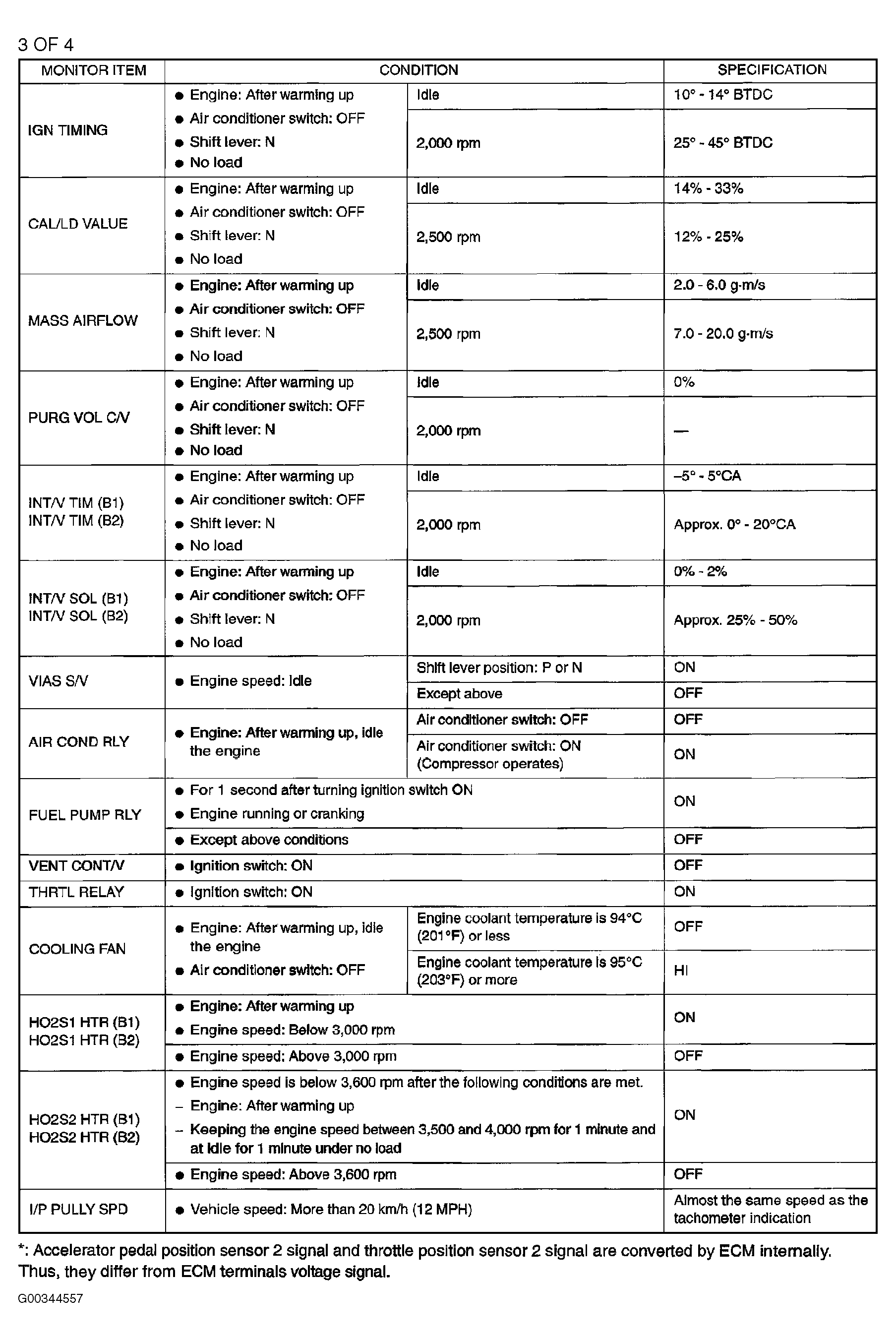

Fig 3: Identifying Monitored Items Supported By Generic Scan Tool (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

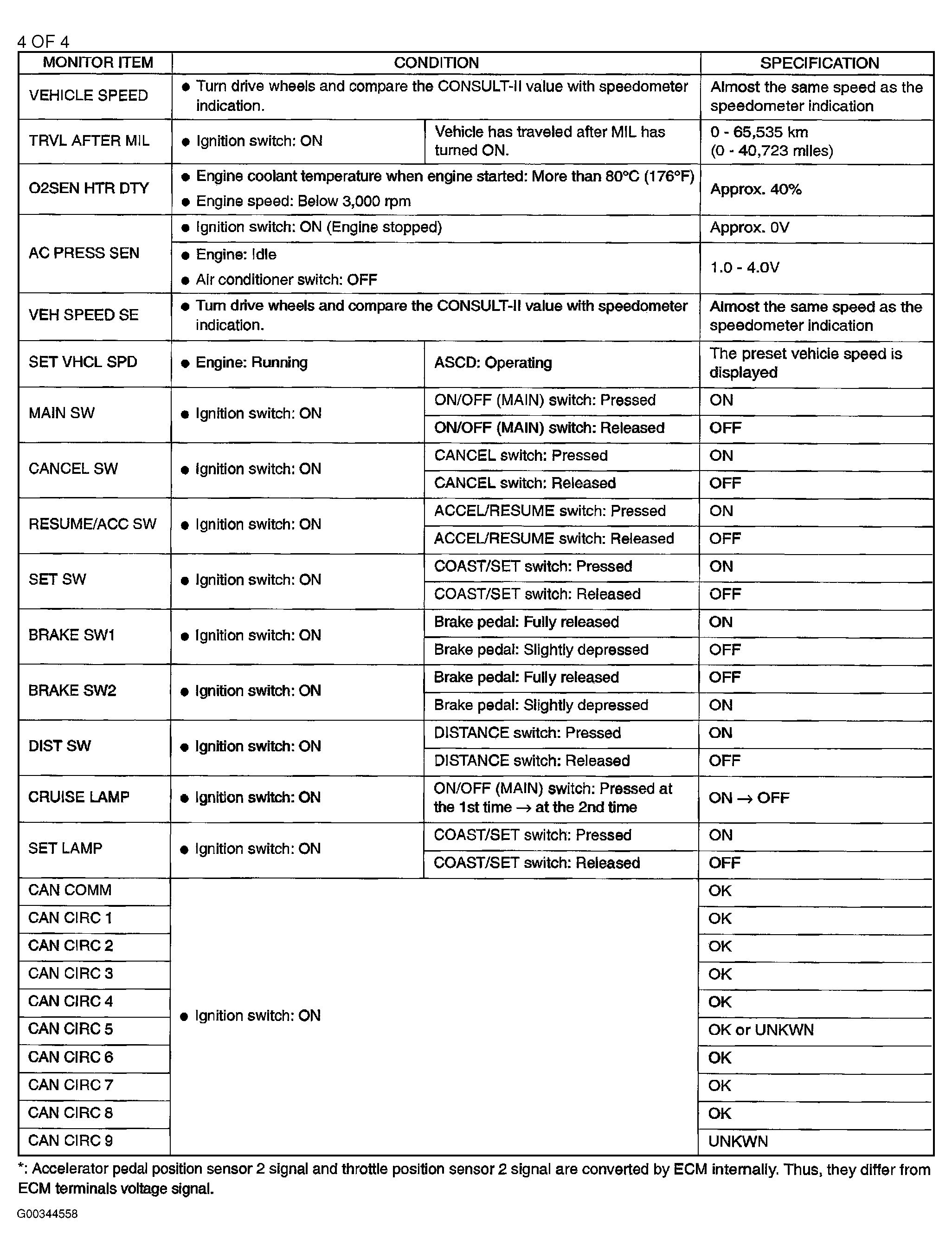

Fig 4: Identifying Monitored Items Supported By Generic Scan Tool (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
