ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

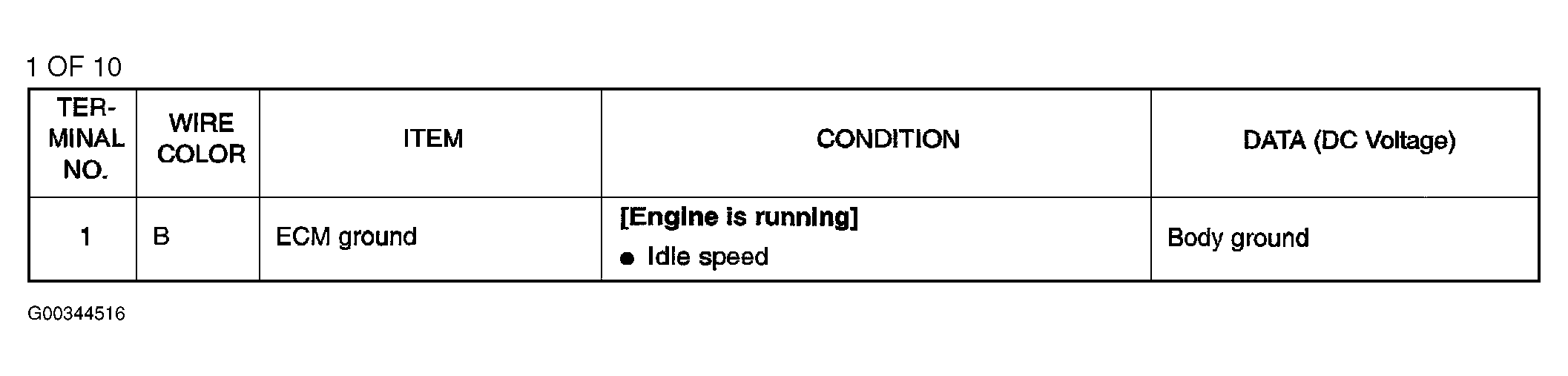

Fig 1: ECM Terminal Specifications (1 Of 10)

G00344516

Courtesy of NISSAN MOTOR CO., U.S.A.

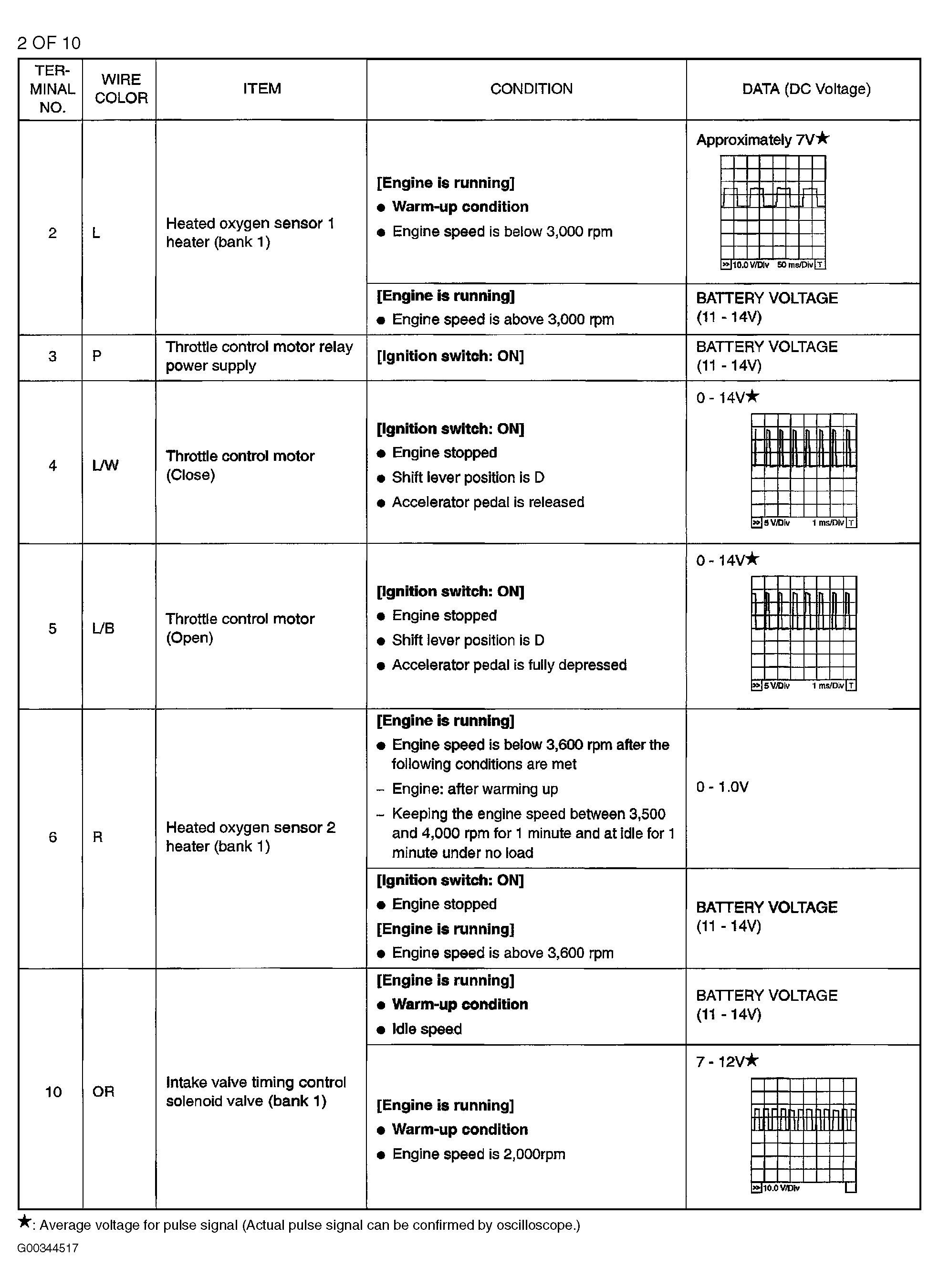

Fig 2: ECM Terminal Specifications (2 Of 10)

G00344517

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: ECM Terminal Specifications (3 Of 10)

G00344518

Courtesy of NISSAN MOTOR CO., U.S.A.

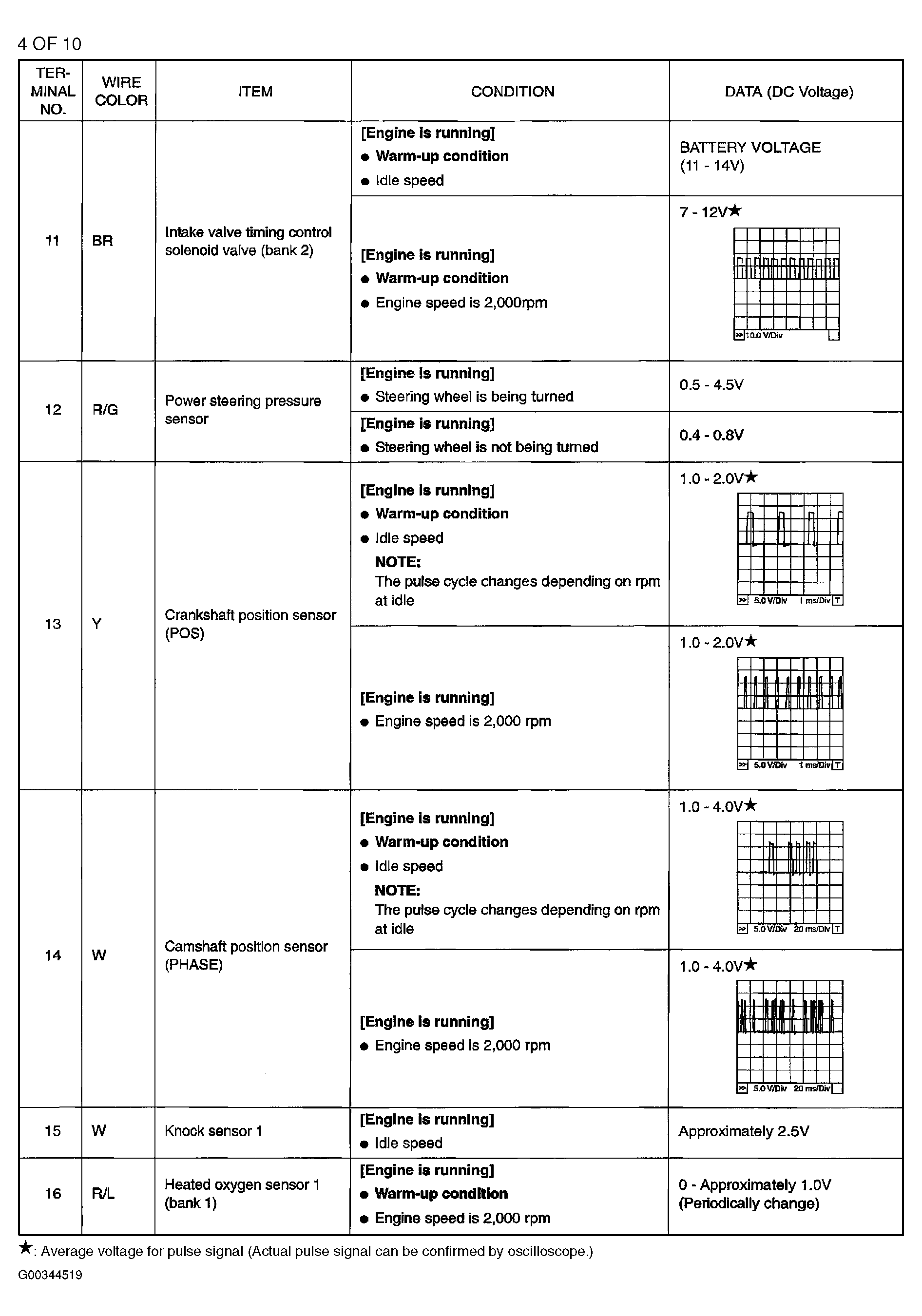

Fig 4: ECM Terminal Specifications (4 Of 10)

G00344519

Courtesy of NISSAN MOTOR CO., U.S.A.

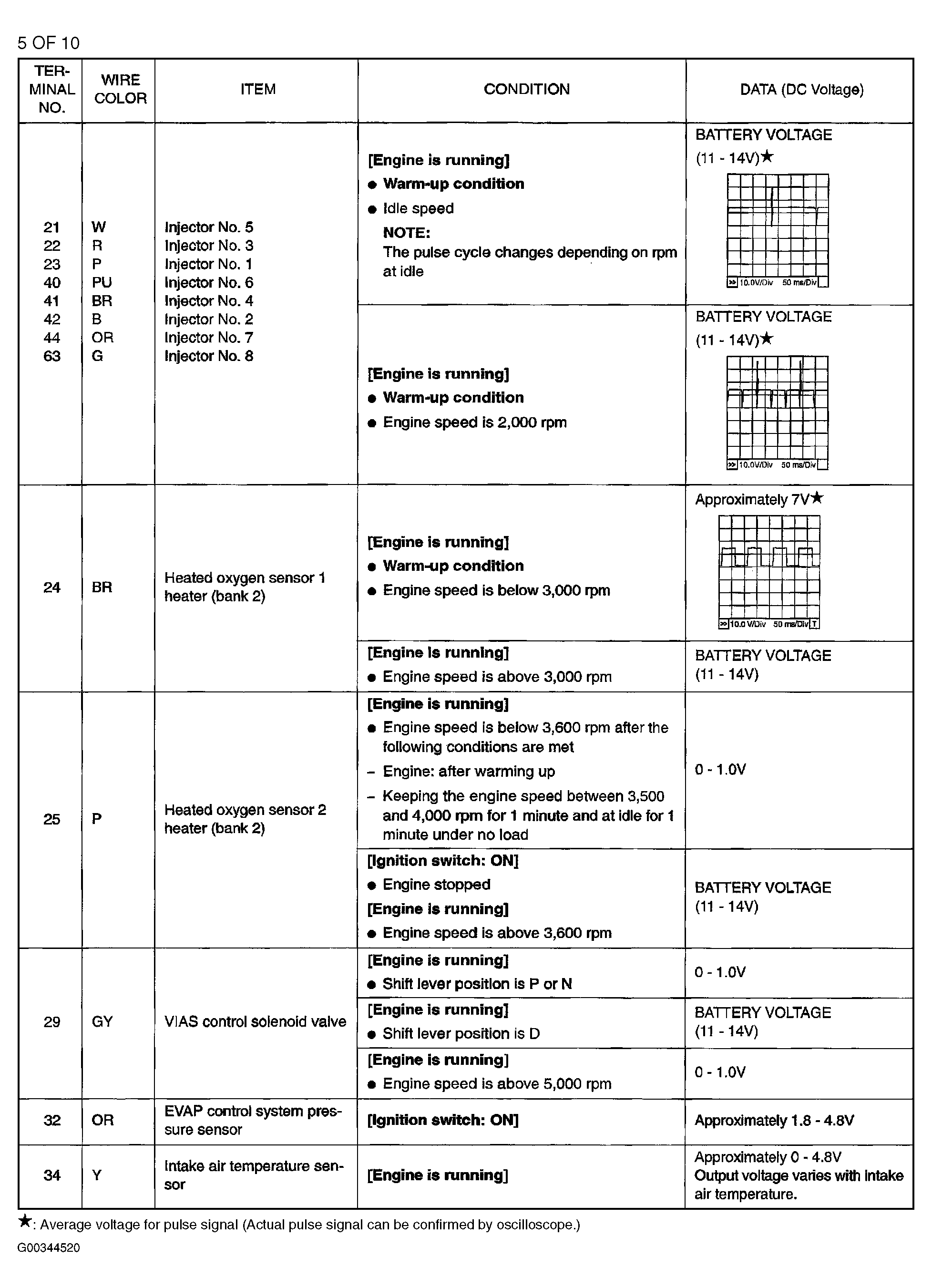

Fig 5: ECM Terminal Specifications (5 Of 10)

G00344520

Courtesy of NISSAN MOTOR CO., U.S.A.

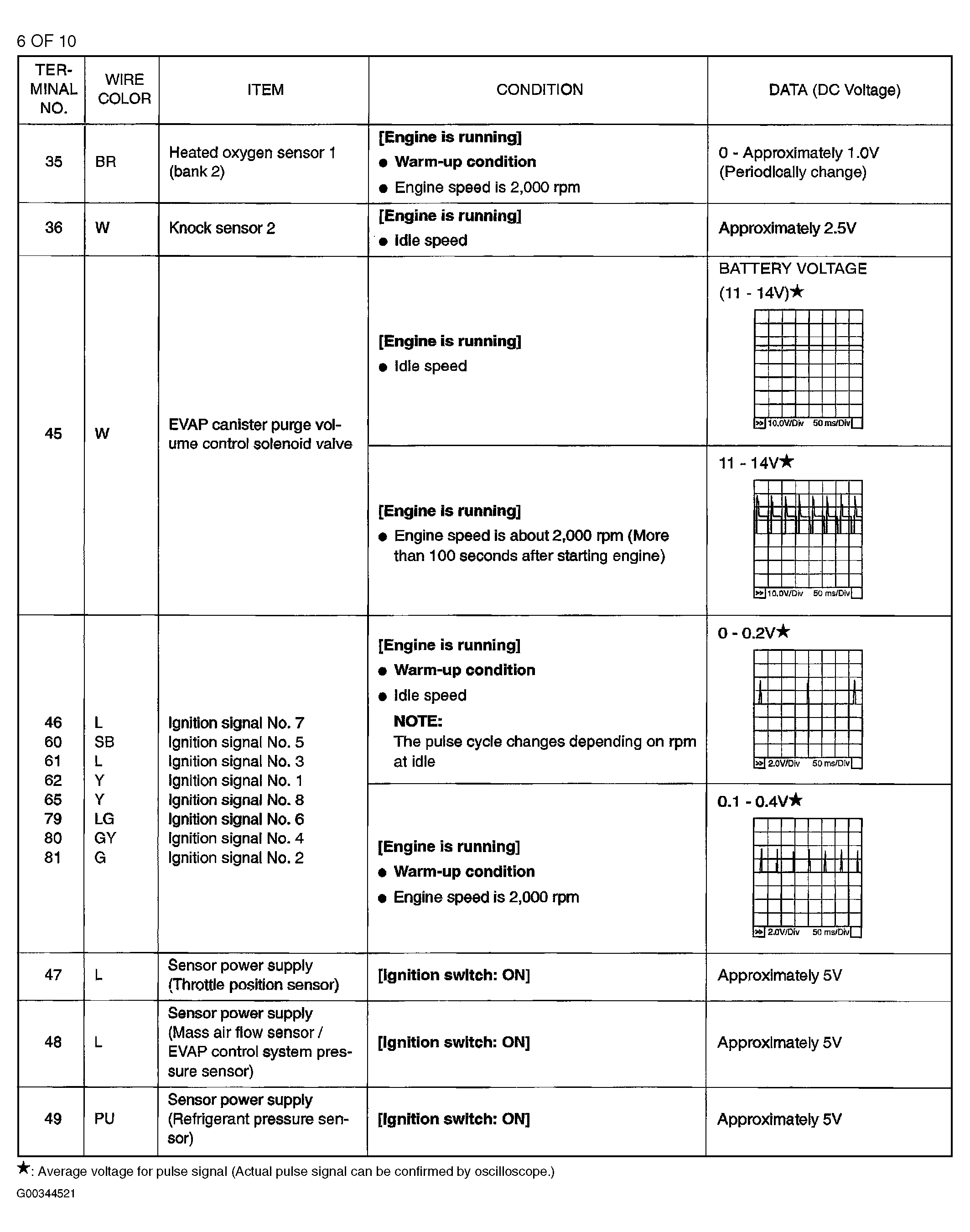

Fig 6: ECM Terminal Specifications (6 Of 10)

G00344521

Courtesy of NISSAN MOTOR CO., U.S.A.

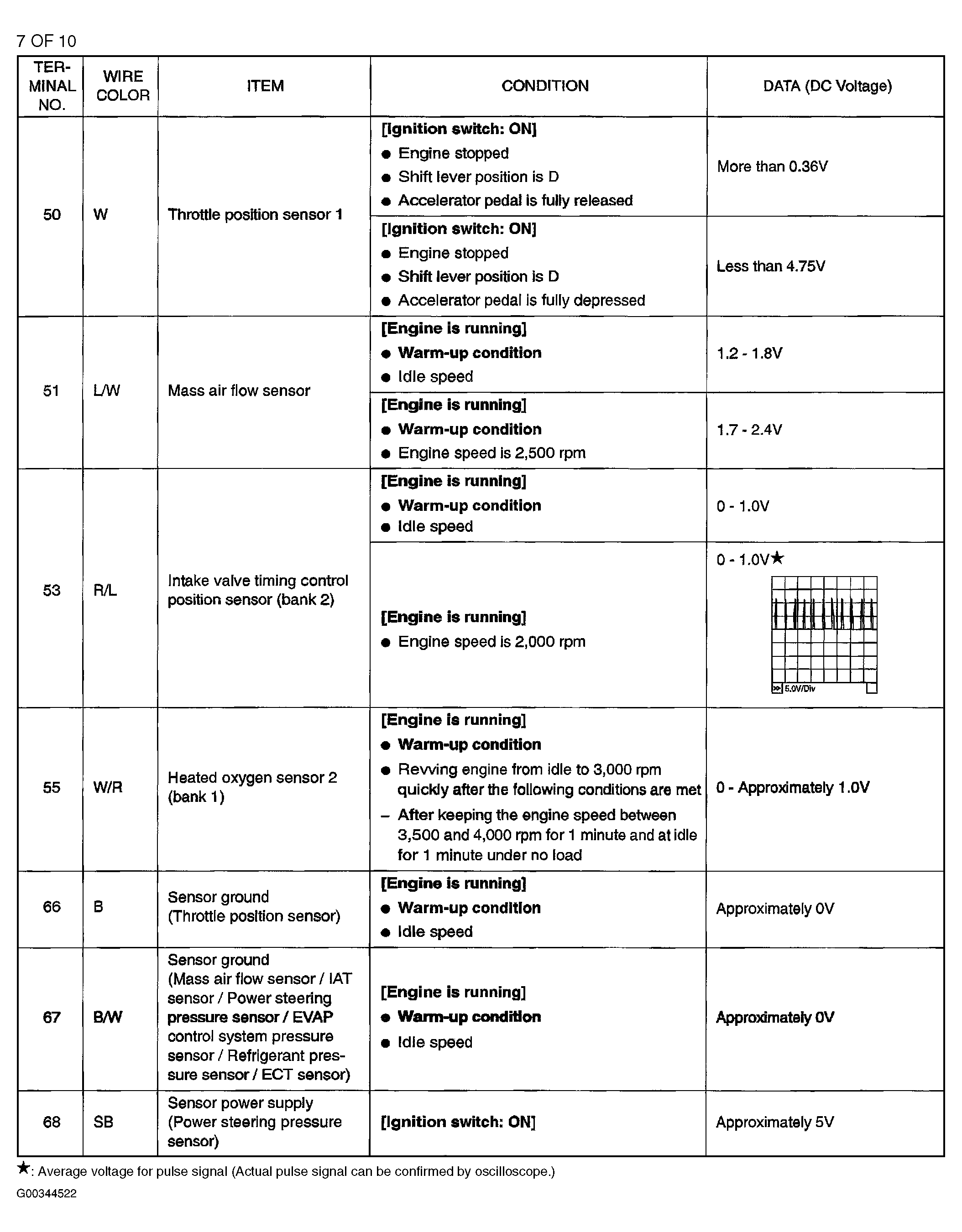

Fig 7: ECM Terminal Specifications (7 Of 10)

G00344522

Courtesy of NISSAN MOTOR CO., U.S.A.

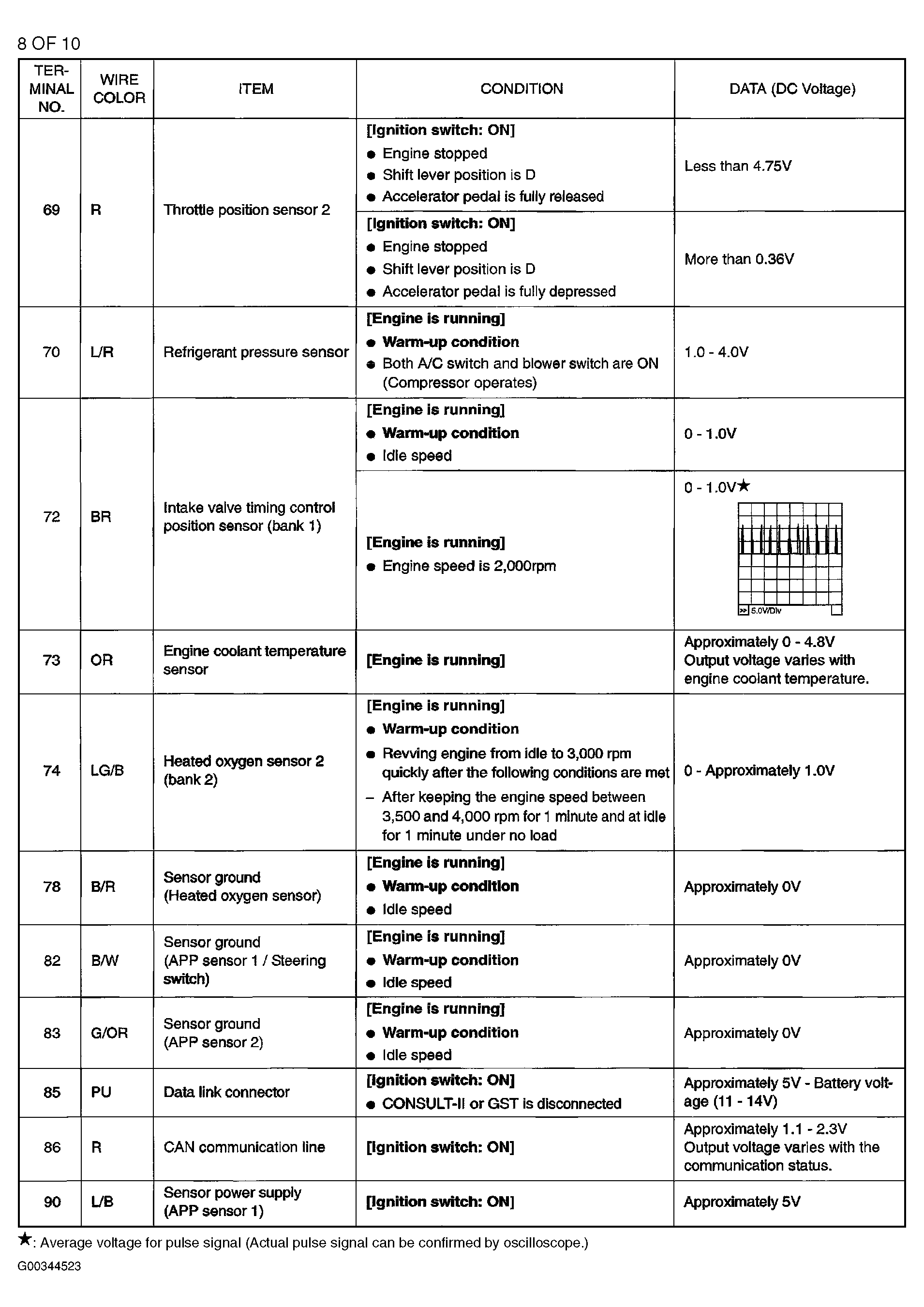

Fig 8: ECM Terminal Specifications (8 Of 10)

G00344523

Courtesy of NISSAN MOTOR CO., U.S.A.

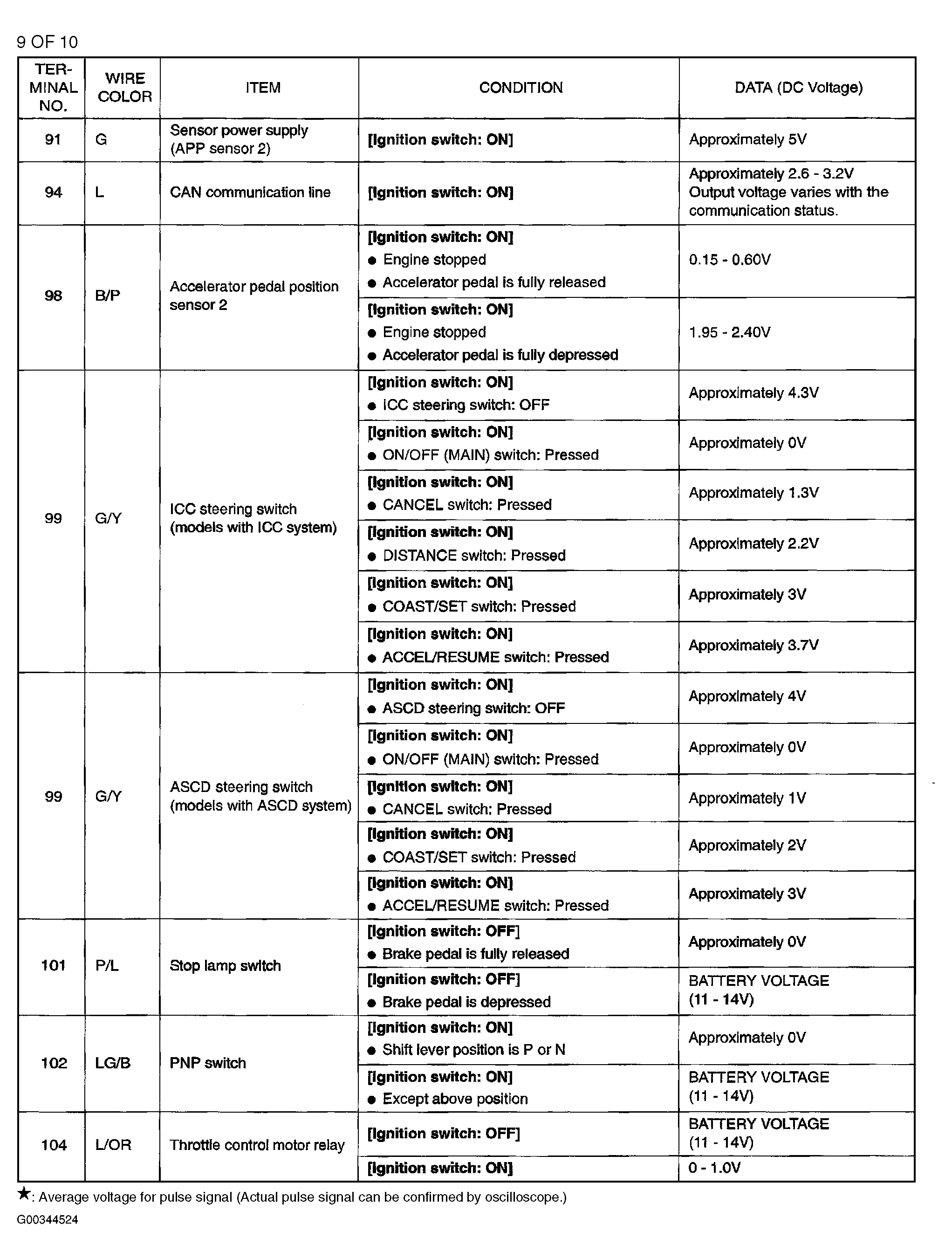

Fig 9: ECM Terminal Specifications (9 Of 10)

G00344524

Courtesy of NISSAN MOTOR CO., U.S.A.

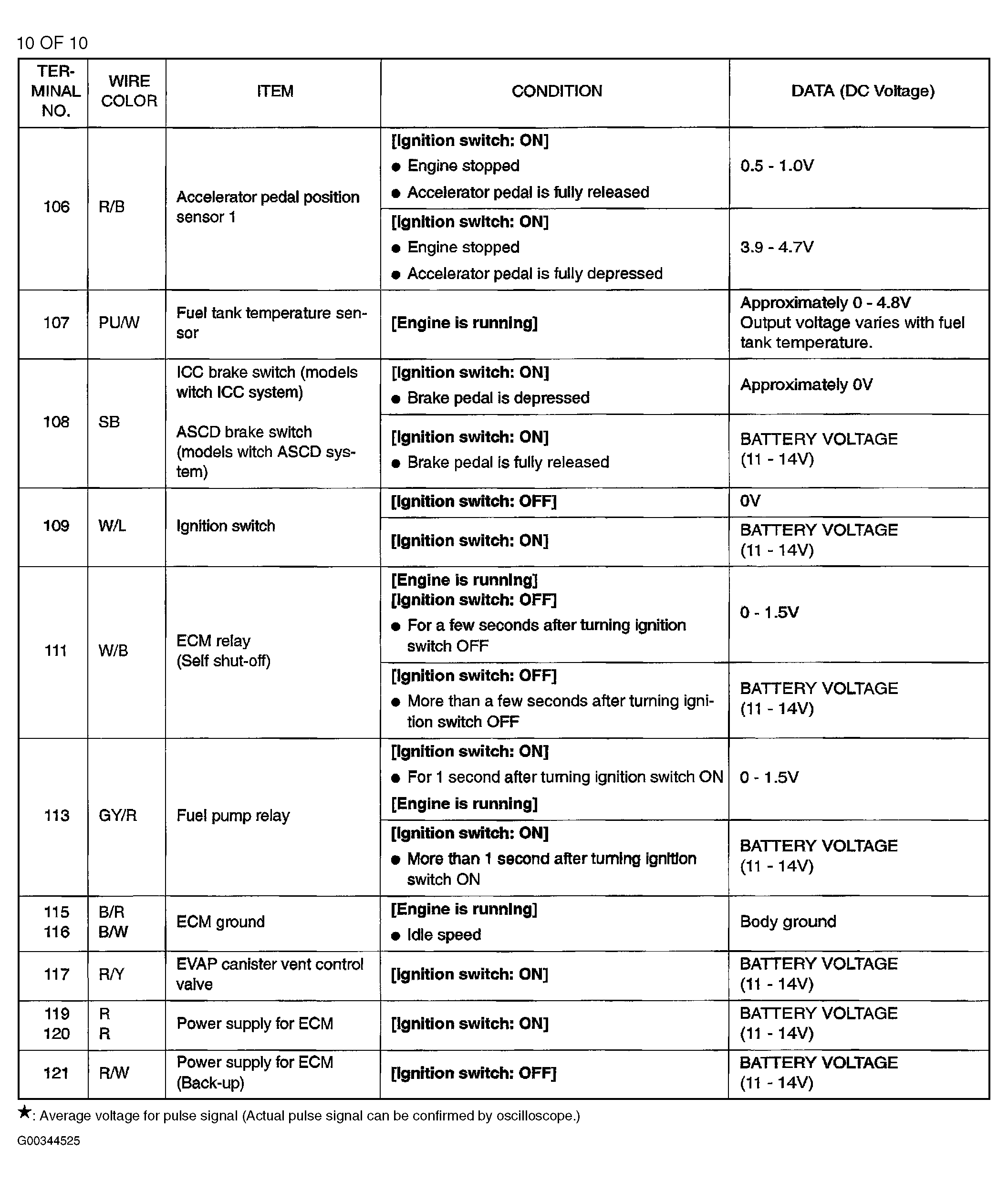

Fig 10: ECM Terminal Specifications (10 Of 10)

G00344525

Courtesy of NISSAN MOTOR CO., U.S.A.
