Inspection Procedure

Turn ignition switch OFF.
Connect GST to data link connector, which is located under LH dash panel near the hood opener handle. See Figure .
Turn ignition switch ON.
Enter the program according to instruction on the screen or in the operation manual.

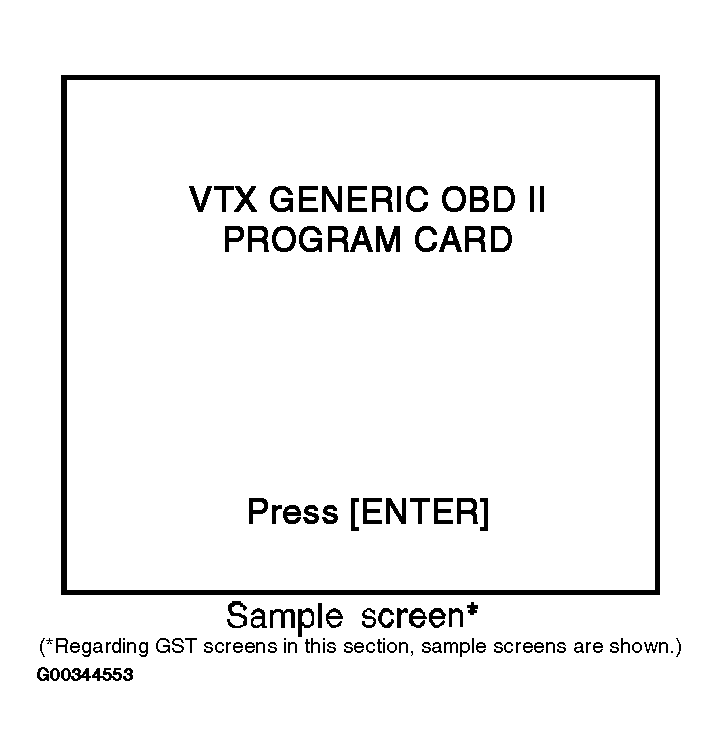

Fig 1: Generic Scan Tool Start Screen (Sample)
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic mode according to each service procedure.
For further information, see the GST Operation Manual of the tool maker .

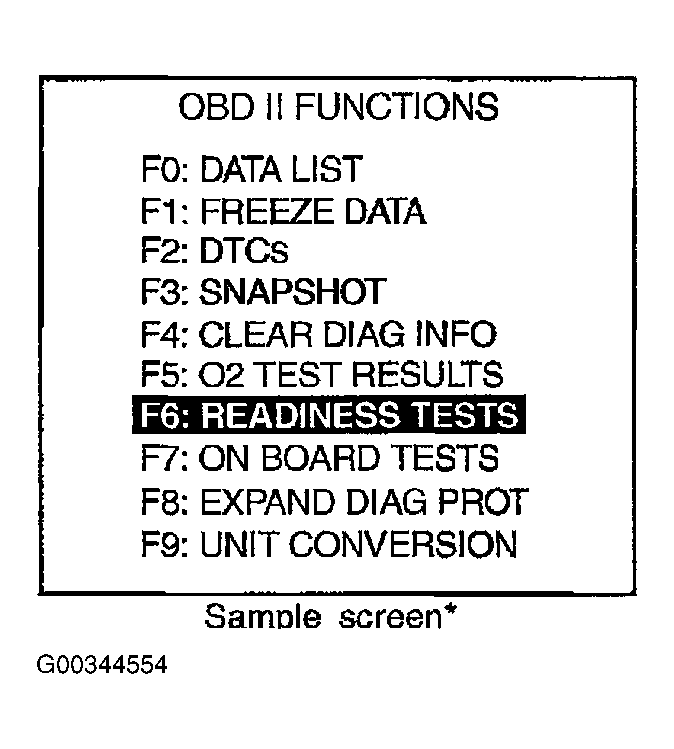

Fig 2: Identifying Diagnostic Modes Supported By Generic Scan Tool (Example)
Courtesy of NISSAN MOTOR CO., U.S.A.
