Flow Chart: Notes

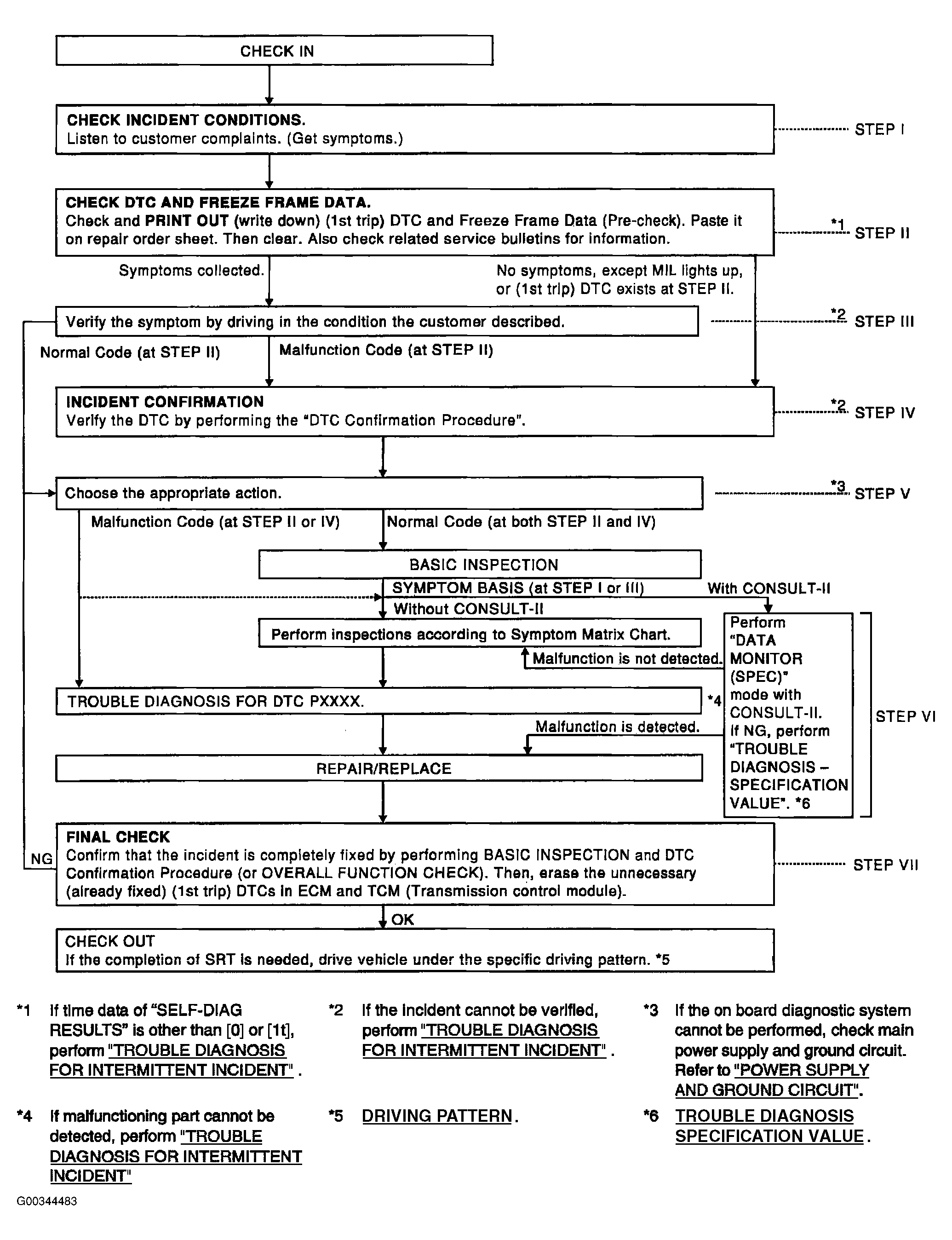

Fig 1: Troubleshooting Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
