Removal And Installation: Notes

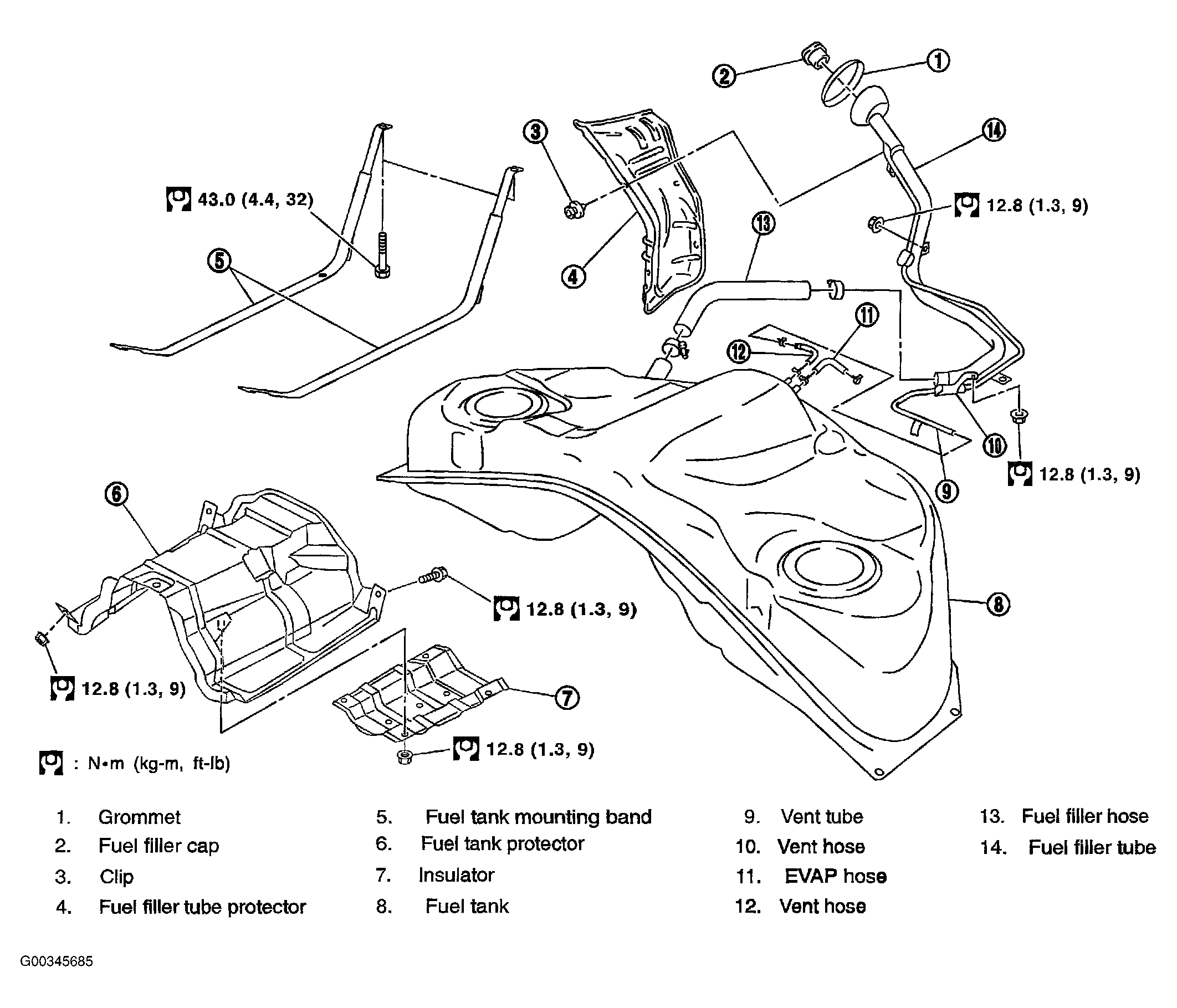

Fig 1: Displaying Fuel Tank Components

G00345685

Courtesy of NISSAN MOTOR CO., U.S.A.
