Hydraulic Line: Components

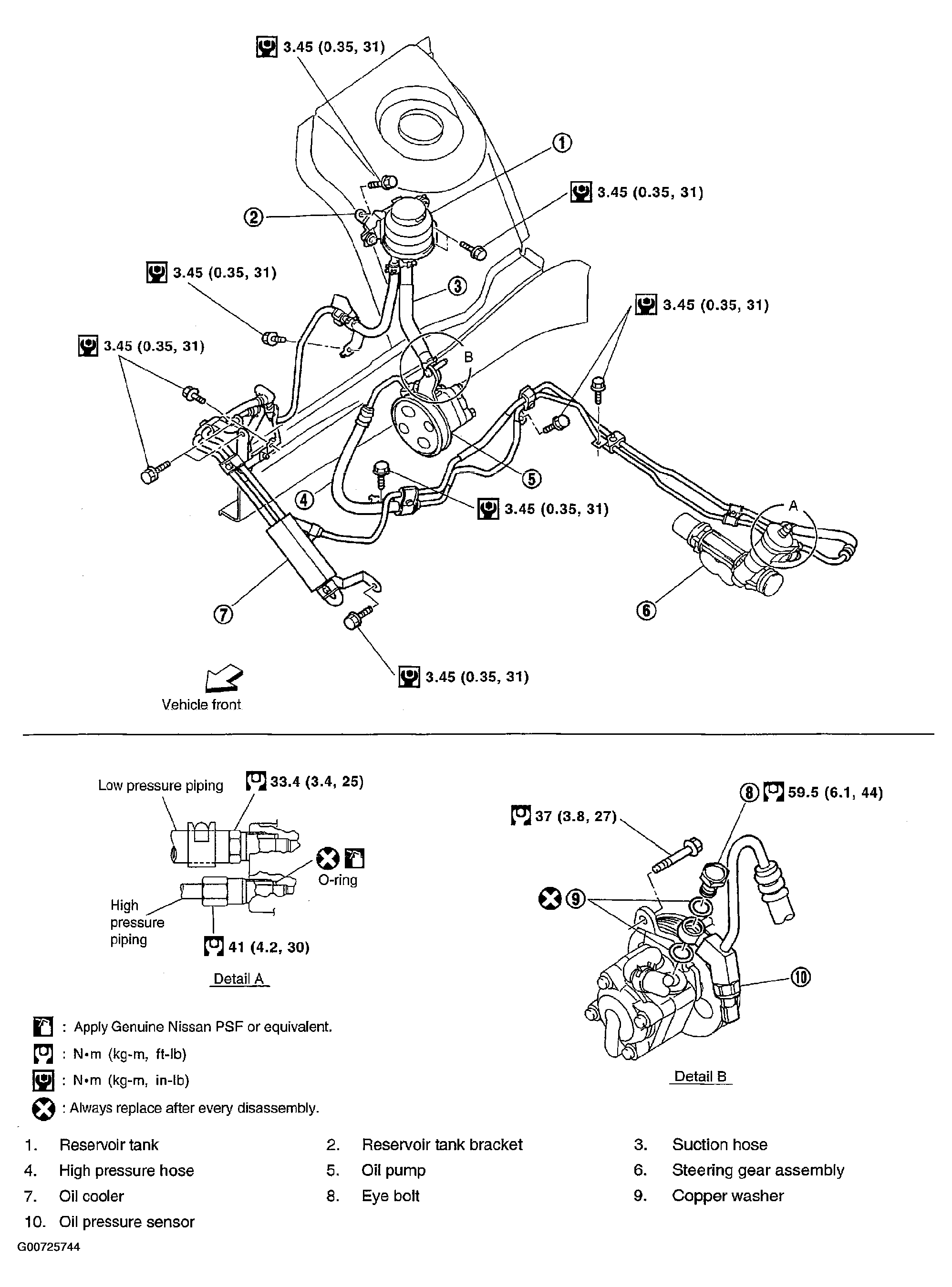

Fig 1: Displaying VQ35DE 2WD Model Components
Courtesy of NISSAN MOTOR CO., U.S.A.

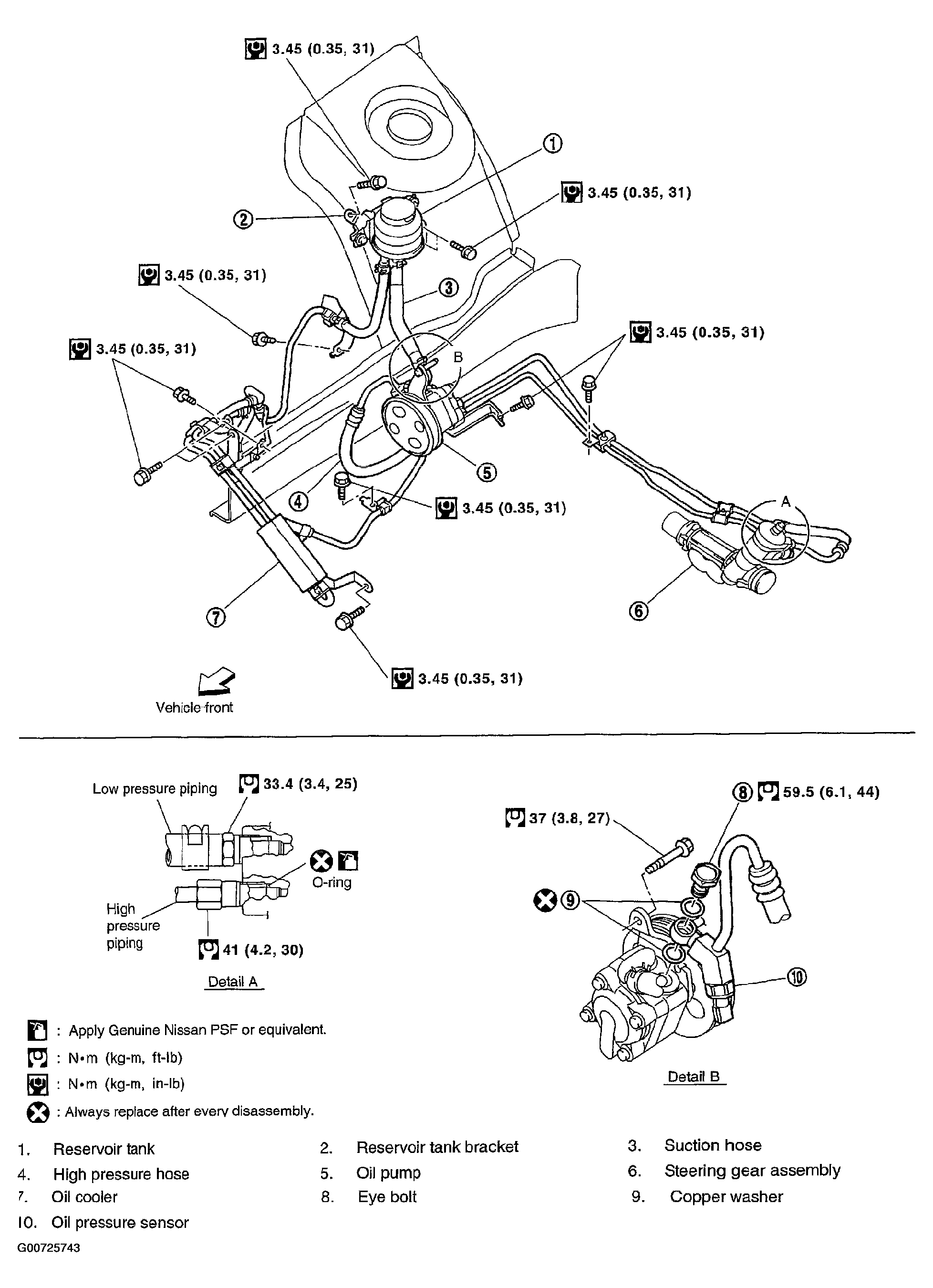

Fig 2: Displaying VQ35DE AWD Model Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
