Removal And Installation: Removal

  1. Unlock slider by squeezing lock tabs on slider from adjuster holder.
  2. Remove casing cap from bracket of control device assembly and remove interlock rod from adjuster holder.

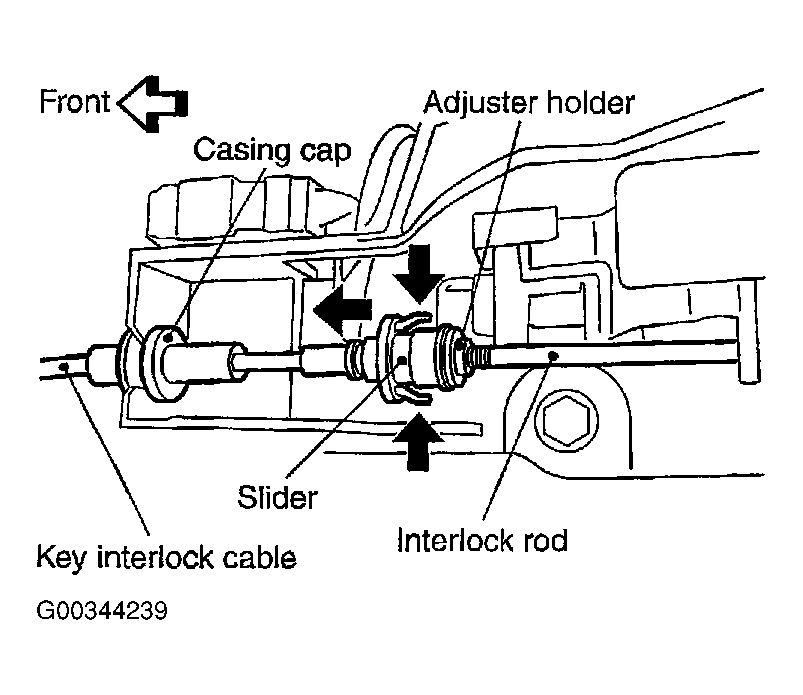

    Fig 1: Removal of Key Interlock Cable (1 Of 2)
    G00344239Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove holder from key cylinder and remove key interlock cable.

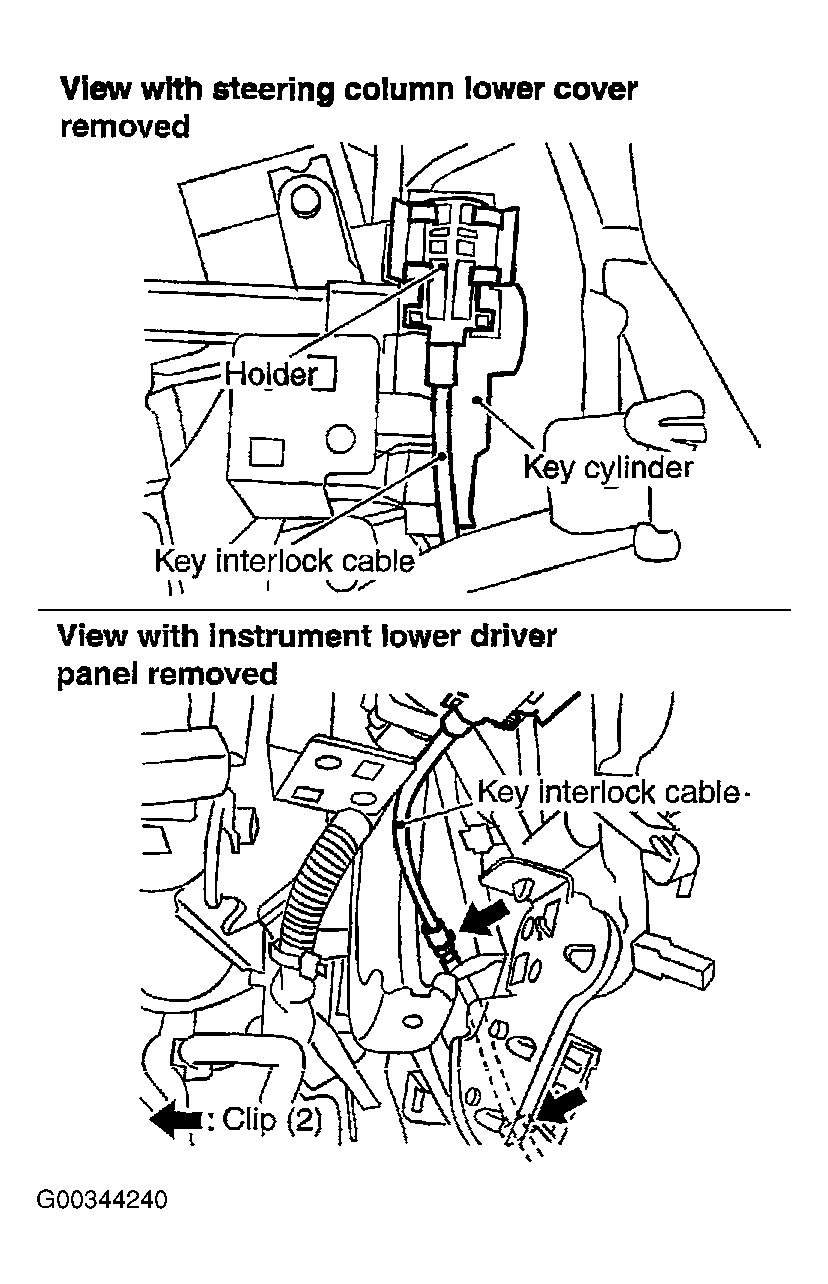

    Fig 2: Removal of Key Interlock Cable (2 Of 2)
    G00344240Courtesy of NISSAN MOTOR CO., U.S.A.
