Components Function Description

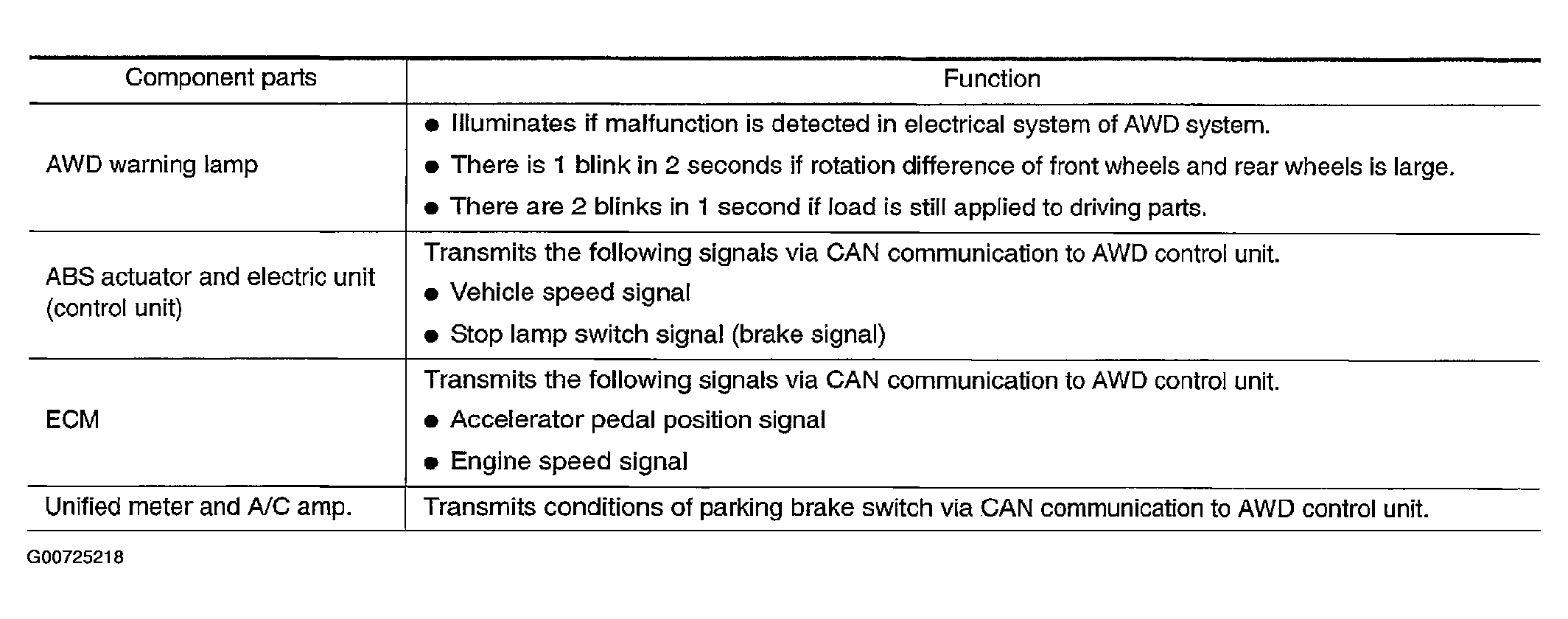

Fig 1: Displaying Components Function Description (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

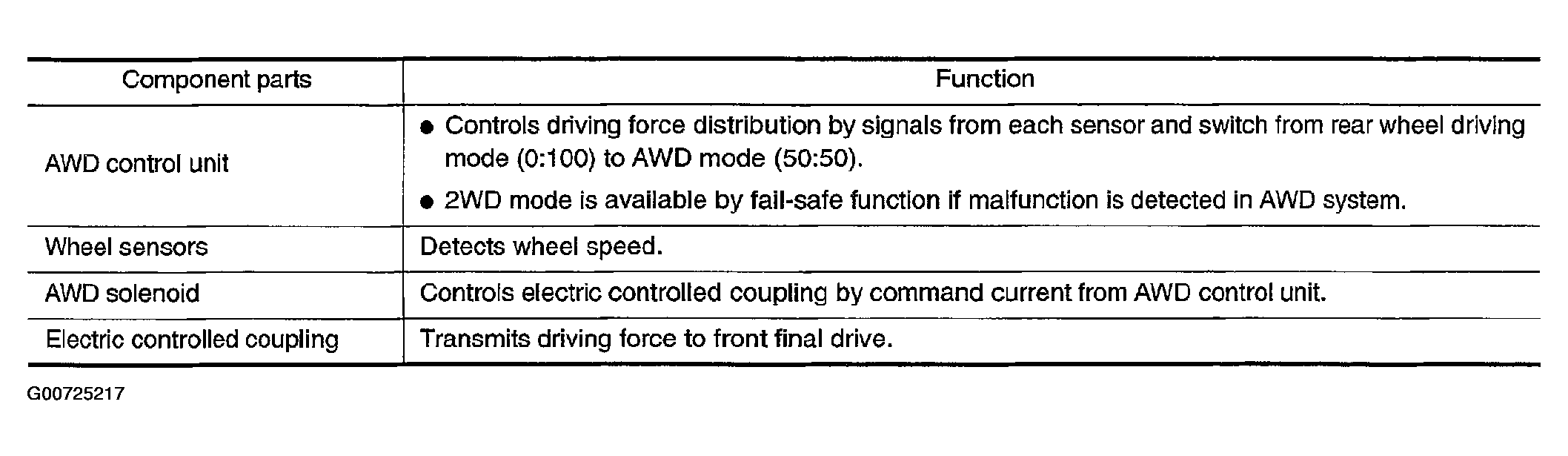

Fig 2: Displaying Components Function Description (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
