Disassembly And Assembly: Components

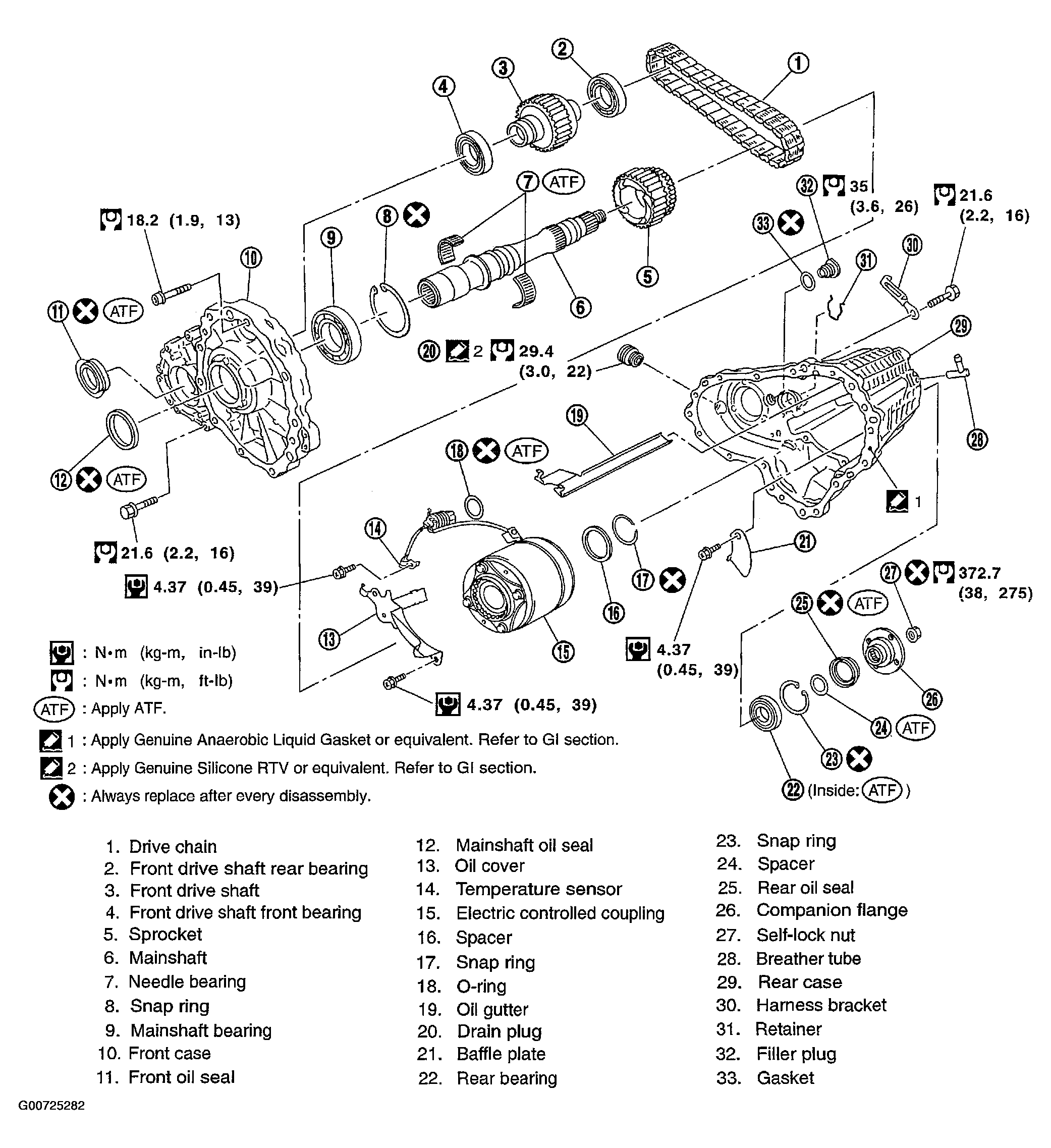

Fig 1: Displaying Transfer Assembly Components

G00725282

Courtesy of NISSAN MOTOR CO., U.S.A.
