ASCD Clutch Switch

Turn ignition switch OFF.
Disconnect ASCD clutch switch harness connector.
Check harness continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.

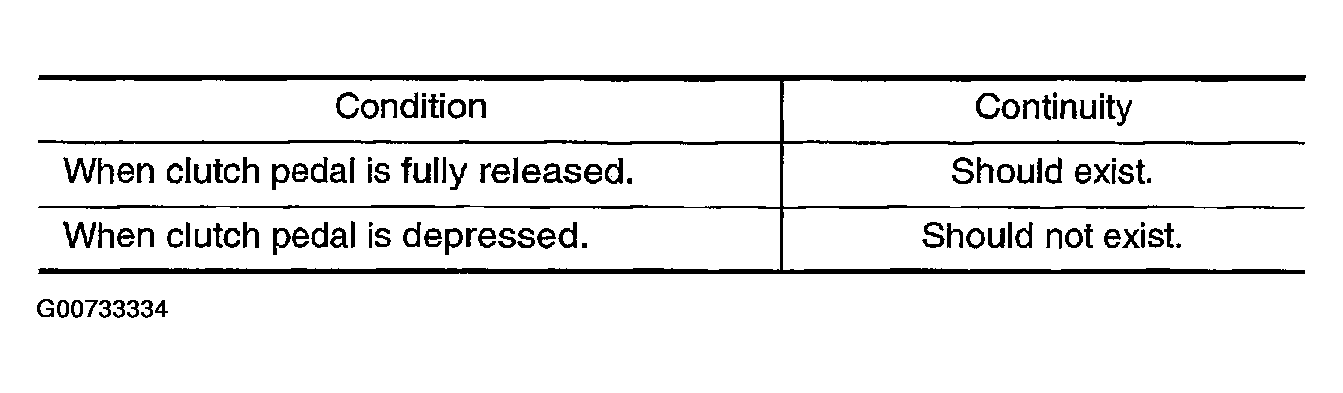

Fig 1: ASCD Clutch Switch Terminals 1 And 2 Continuity Table
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, adjust ASCD clutch switch installation, Refer to CLUTCH PEDAL , and perform step 3 again.

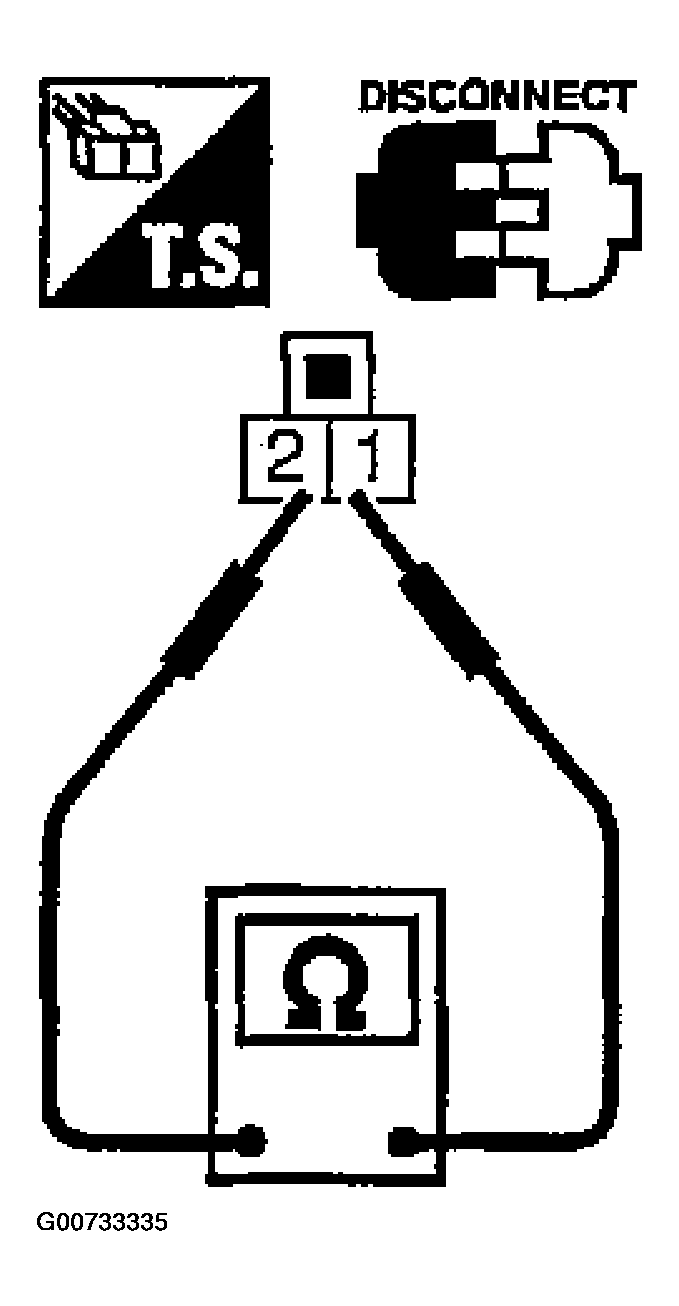

Fig 2: Checking Harness Continuity Between ASCD Clutch Switch Terminals 1 And 2

G00733335

Courtesy of NISSAN MOTOR CO., U.S.A.
