Operation Procedure

With CONSULT-II

1. Perform Accelerator Pedal Released Position Learning .
2. Perform Throttle Valve Closed Position Learning .
3. Start engine and warm it up to normal operating temperature.
4. Check that all items listed under the topic PREPARATION (previously mentioned) are in good order.

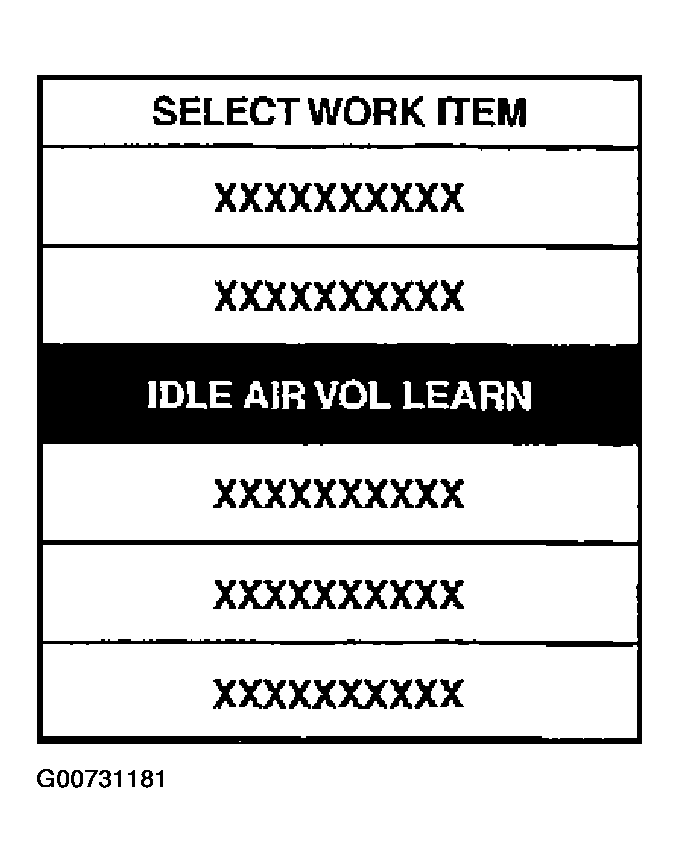

5. Select "IDLE AIR VOL LEARN" in "WORK SUPPORT" mode.
   Fig 1: Operating Procedure Sequence (1 Of 3)

   Courtesy of NISSAN MOTOR CO., U.S.A.

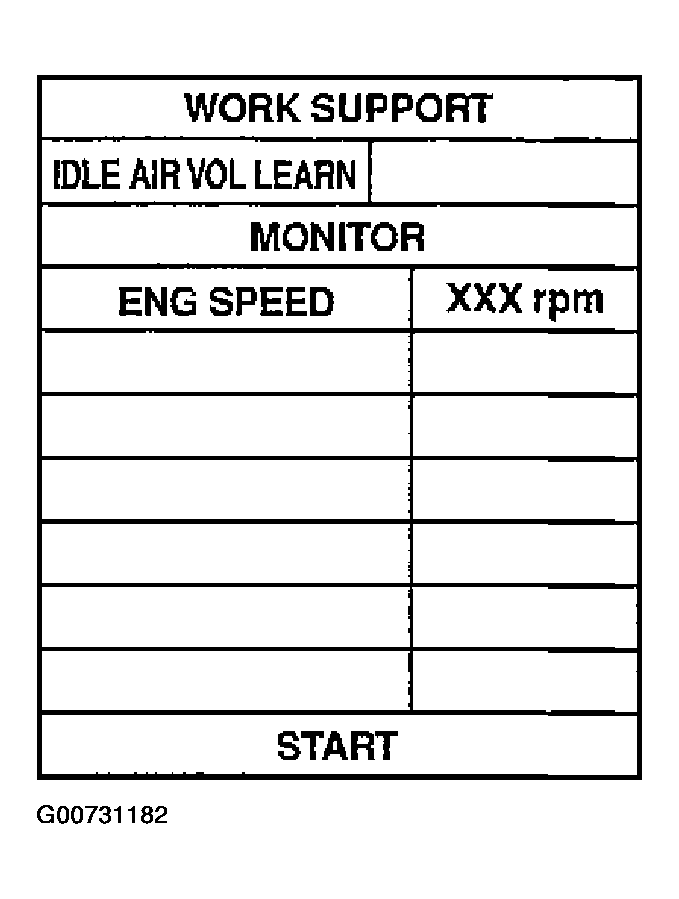

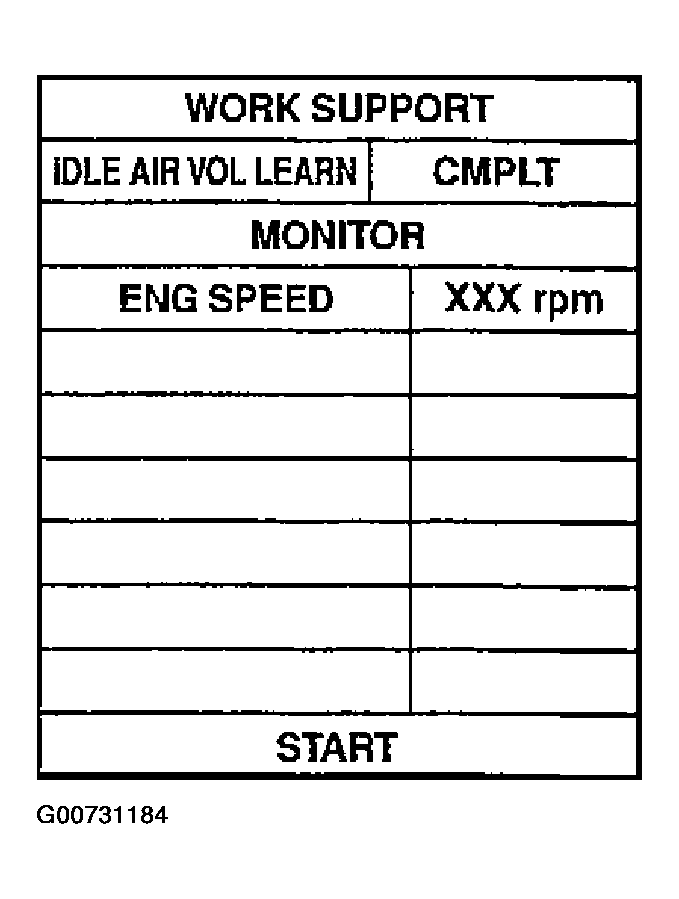

6. Touch "START" and wait 20 seconds.
   Fig 2: Operating Procedure Sequence (2 Of 3)

   Courtesy of NISSAN MOTOR CO., U.S.A.
7. Make sure that "CMPLT" is displayed on CONSULT-II screen. If "CMPLT" is not displayed, Idle Air Volume Learning will not be carried out successfully. In this case, find the cause of the incident by referring to the Diagnostic Procedure below.
8. Rev up the engine two or three times and make sure that idle speed and ignition timing are within the specifications.
   Fig 3: Operating Procedure Sequence (3 Of 3)

   Courtesy of NISSAN MOTOR CO., U.S.A.

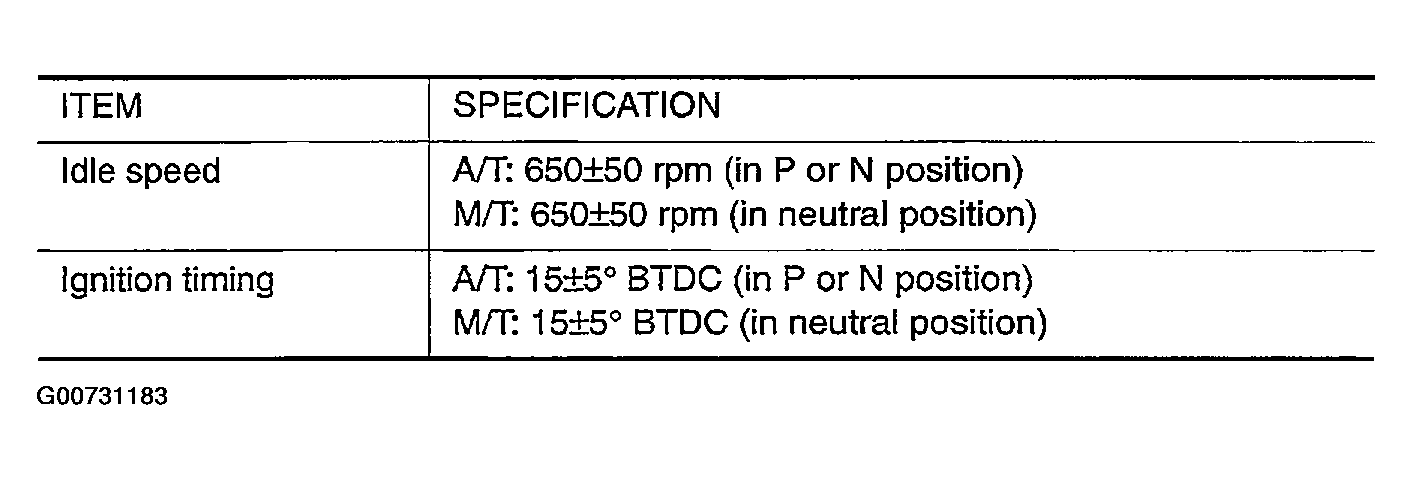

Fig 4: Idle Speed And Ignition Timing Specification Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

1. Perform Accelerator Pedal Released Position Learning .
2. Perform Throttle Valve Closed Position Learning .
3. Start engine and warm it up to normal operating temperature.
4. Check that all items listed under the topic PREPARATION (previously mentioned) are in good order.
5. Turn ignition switch OFF and wait at least 10 seconds.
6. Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.
7. Repeat the following procedure quickly five times within 5 seconds.
   1. Fully depress the accelerator pedal.
   2. Fully release the accelerator pedal.
8. Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 20 seconds until the MIL stops blinking and turned ON.
9. Fully release the accelerator pedal within 3 seconds after the MIL turned ON.
10. Start engine and let it idle.
11. Wait 20 seconds.

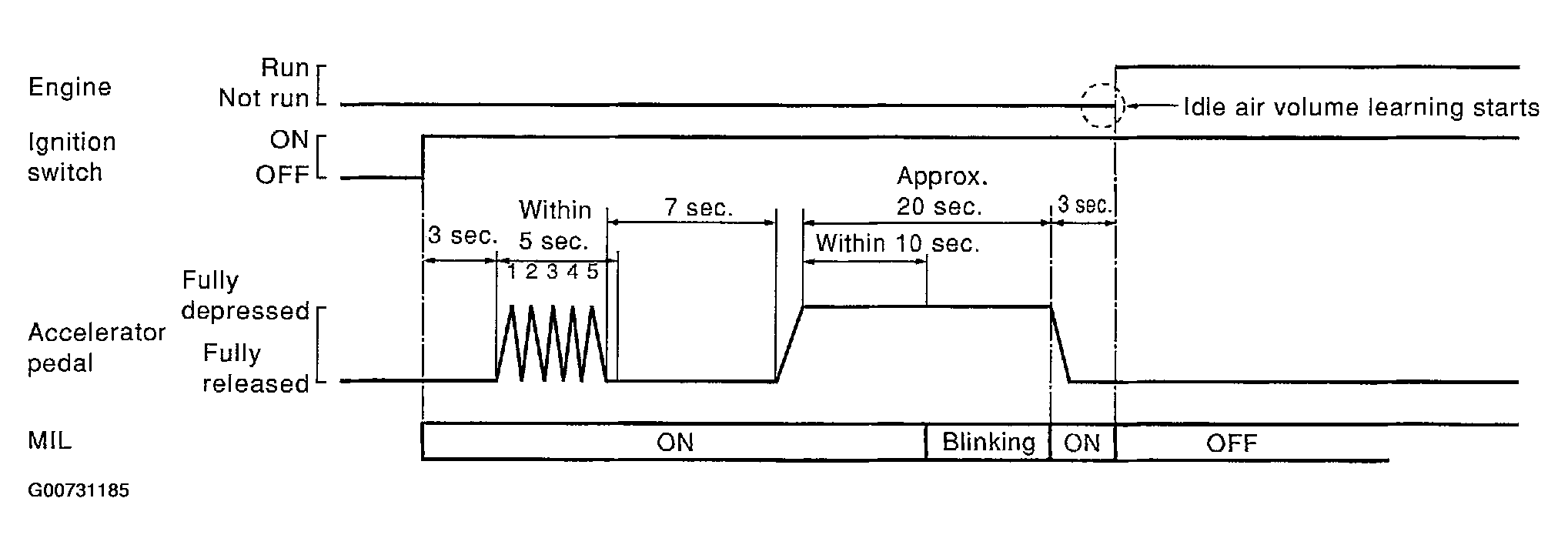

    Fig 5: Idle Air Volume Learning Graph

    Courtesy of NISSAN MOTOR CO., U.S.A.
12. Rev up the engine two or three times and make sure that idle speed and ignition timing are within the specifications.
    Fig 6: Idle Speed And Ignition Timing Specification Chart

    Courtesy of NISSAN MOTOR CO., U.S.A.
13. If idle speed and ignition timing are not within the specification, Idle Air Volume Learning will not be carried out successfully. In this case, find the cause of the incident by referring to the DIAGNOSTIC PROCEDURE below.
