Method B

  1. Remove No.1 ignition coil.

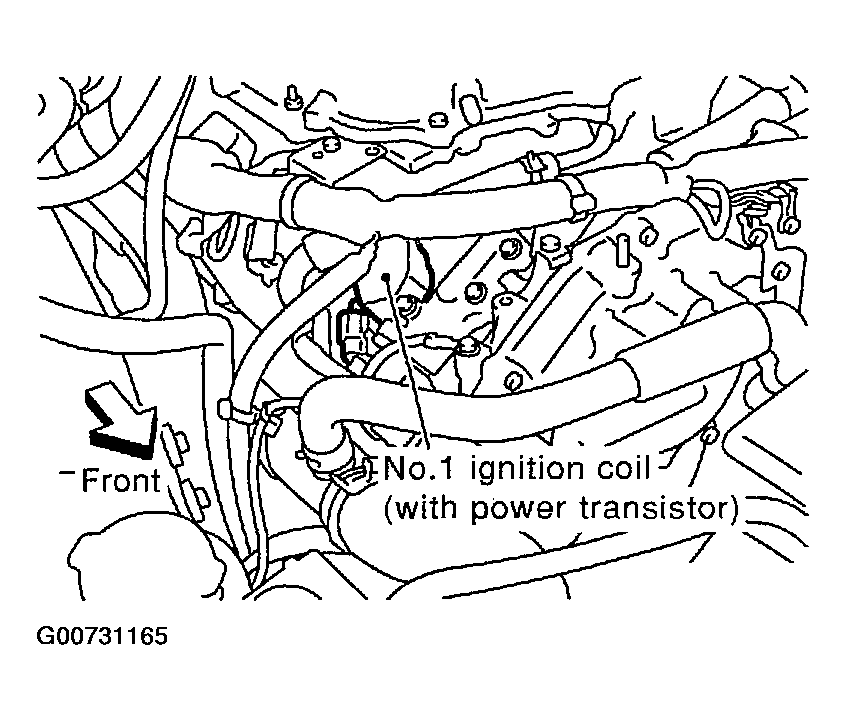

    Fig 1: Removing No.1 Ignition Coil
    G00731165Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.

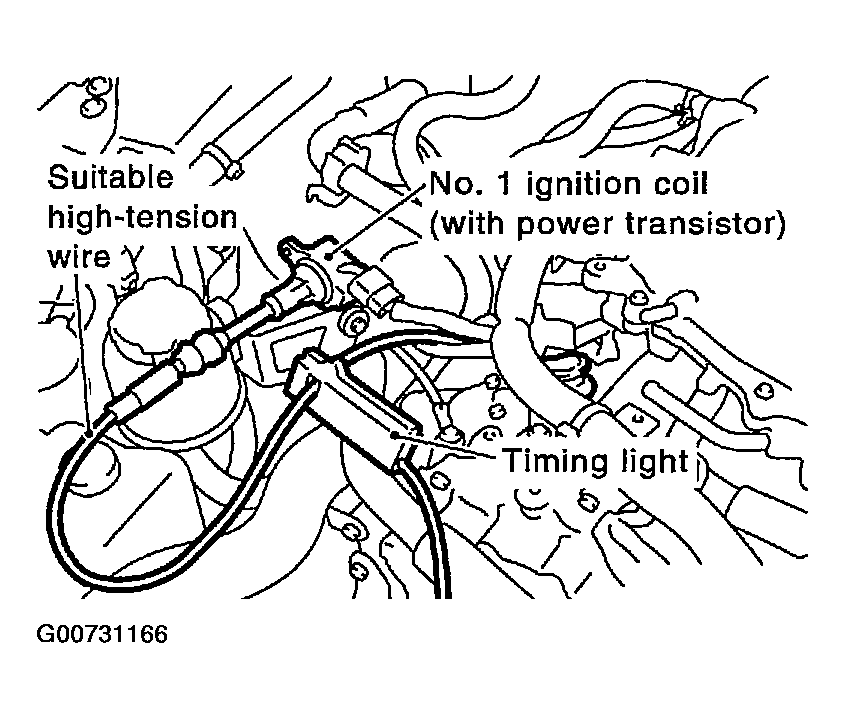

    Fig 2: Attaching Timing Light Clamp To Suitable High Tension Wire
    G00731166Courtesy of NISSAN MOTOR CO., U.S.A.

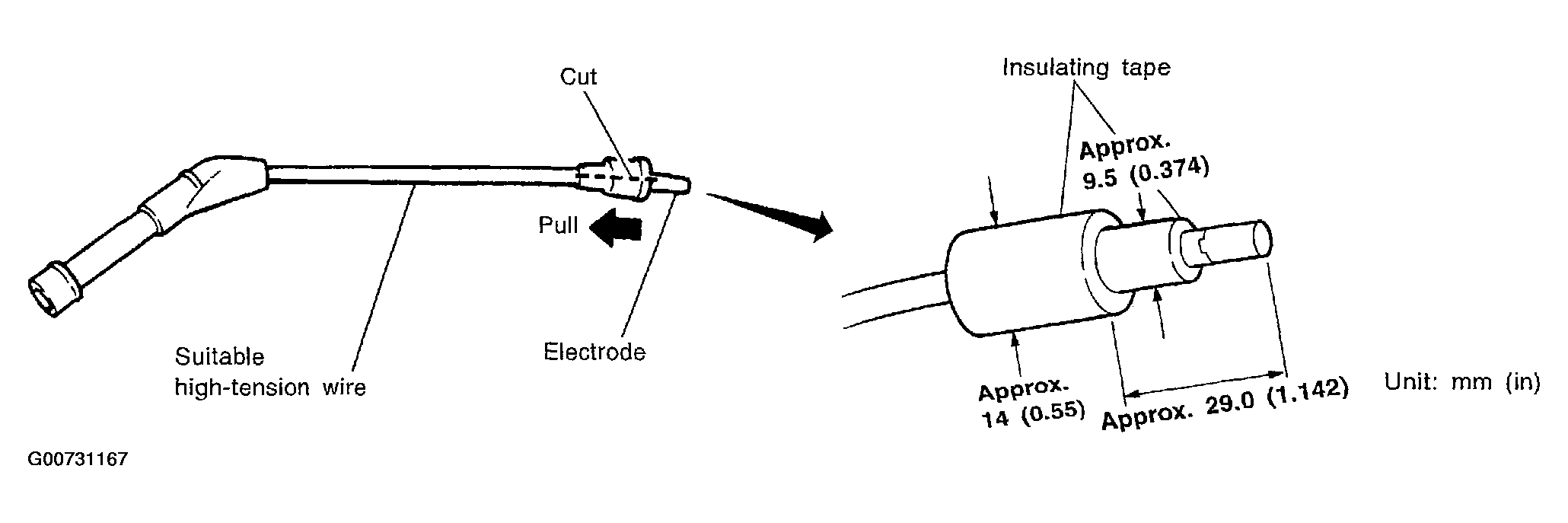

    Fig 3: Identifying High Tension Wire And Insulating Tape Length
    G00731167Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

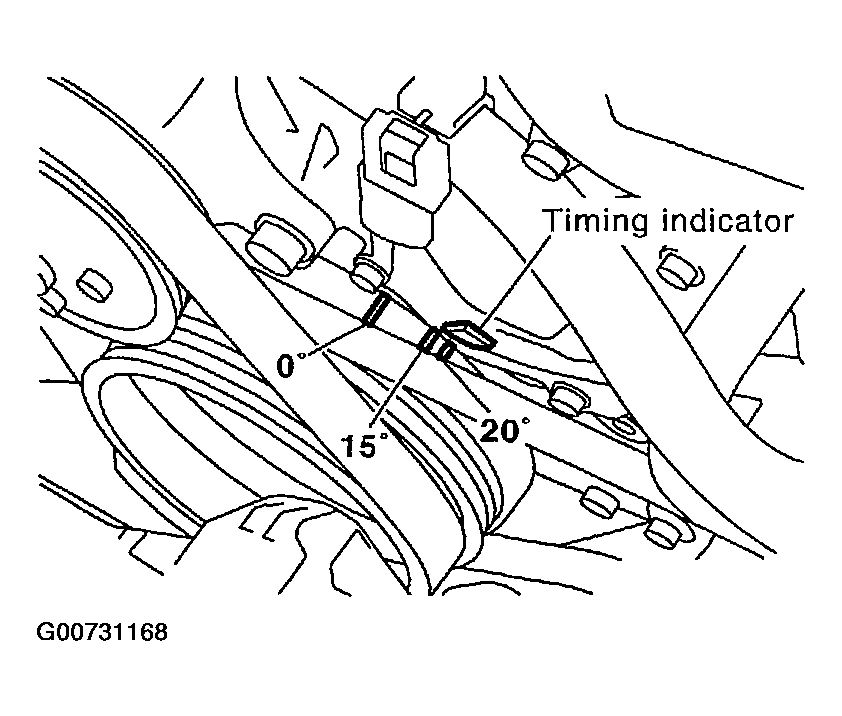

    Fig 4: Checking Ignition Timing
    G00731168Courtesy of NISSAN MOTOR CO., U.S.A.
