Diagnostic Procedure

CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
1. Turn ignition switch ON.
2. Connect CONSULT-II and select "DATA MONITOR" mode.
3. Select "LOAD SIGNAL" and check indication under the following conditions.

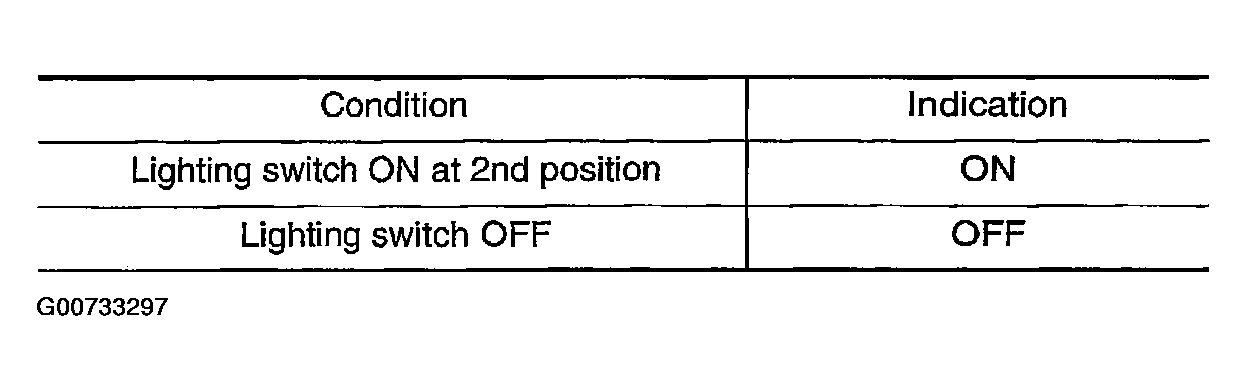

Fig 1: "LOAD SIGNAL" Indication Table-Function 1
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: GO TO 2.
2. NG: GO TO 3.

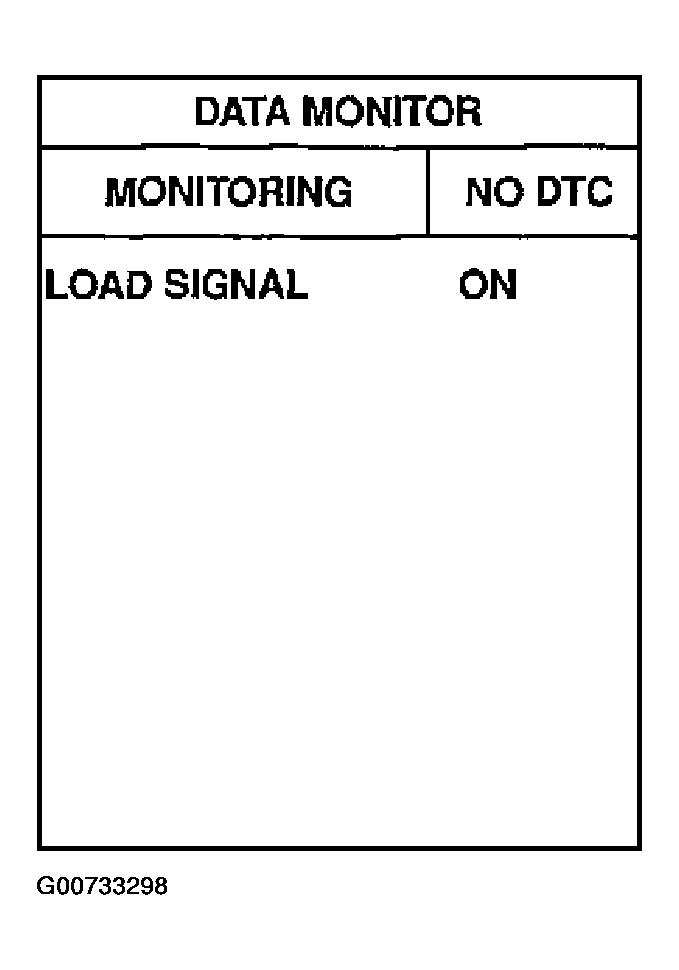

Fig 2: CONSULT-II Data Monitor Display
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
Check "LOAD SIGNAL" indication under the following conditions.

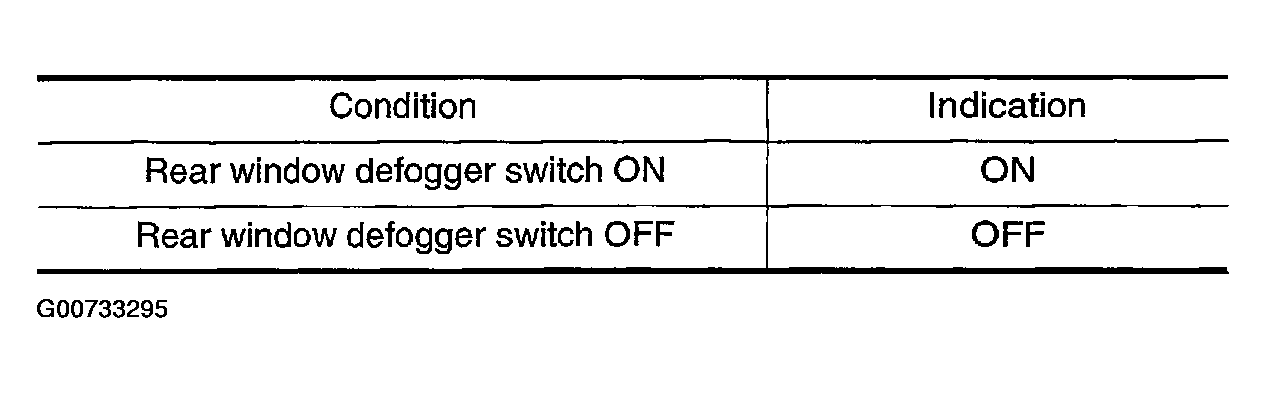

Fig 3: "LOAD SIGNAL" Indication Table-Function 2
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: INSPECTION END
2. NG: GO TO 4.

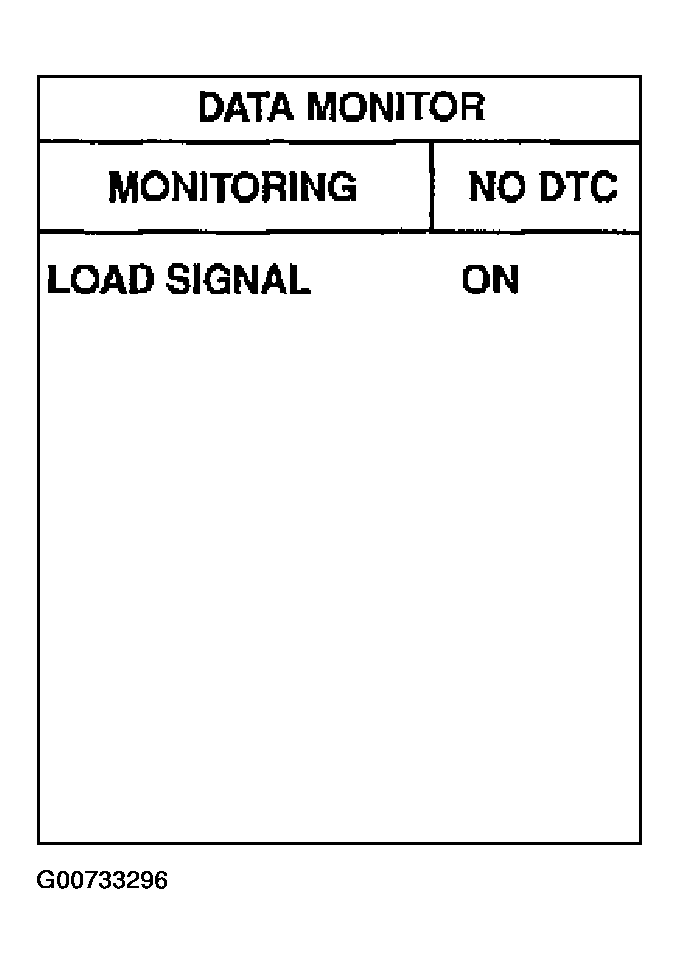

Fig 4: CONSULT-II Data Monitor Display
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK REAR WINDOW DEFOGGER SYSTEM
Refer to REAR WINDOW DEFOGGER - SEDAN - 2004 .
1. : INSPECTION END
CHECK HEADLAMP SYSTEM
Refer to HEADLAMP (FOR USA) - SEDAN - 2004 or HEADLAMP (FOR CANADA) - DAYTIME RUNNING SYSTE .
1. : INSPECTION END
