CONSULT-II Function: Function

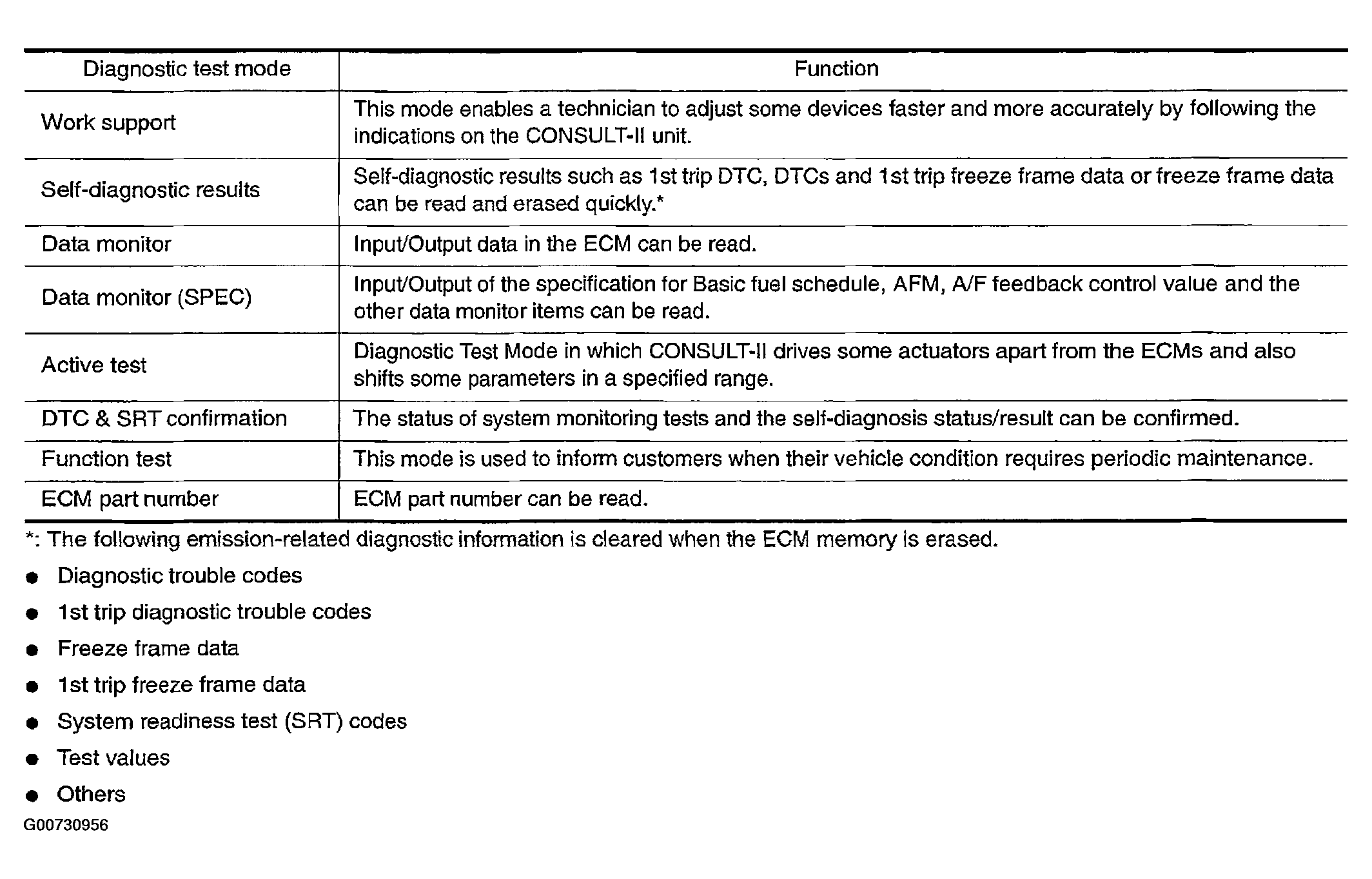

Fig 1: CONSULT-II Function - Table
G00730956Courtesy of NISSAN MOTOR CO., U.S.A.

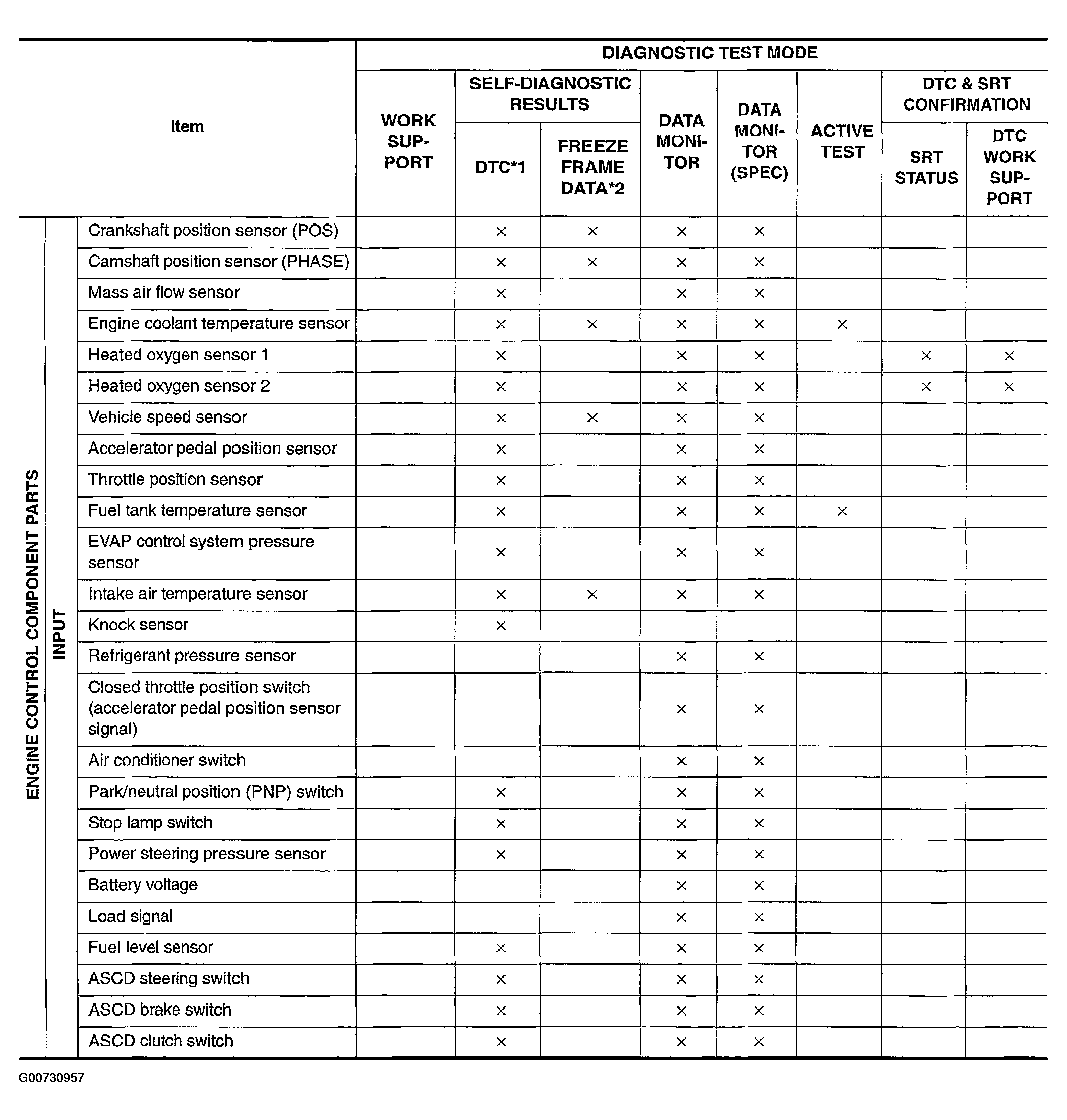

Fig 2: Engine Control Component Parts Application Table (1 Of 2)
G00730957Courtesy of NISSAN MOTOR CO., U.S.A.

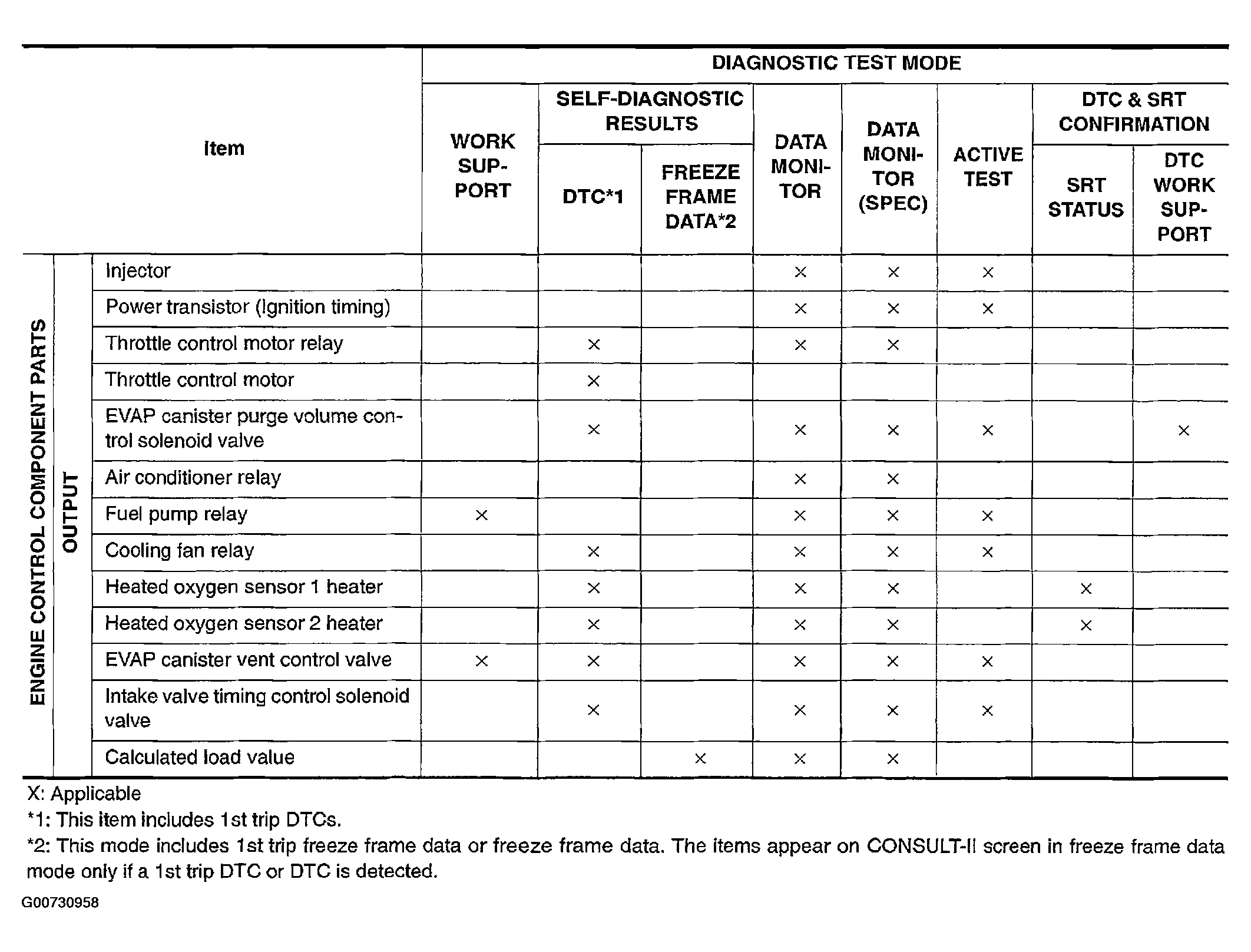

Fig 3: Engine Control Component Parts Application Table (2 Of 2)
G00730958Courtesy of NISSAN MOTOR CO., U.S.A.
