Inspection Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch OFF.
Connect "CONSULT-II" and "CONSULT-II CONVERTER" to data link connector, which is located under LH dash panel near the hood opener handle.
Turn ignition switch ON.

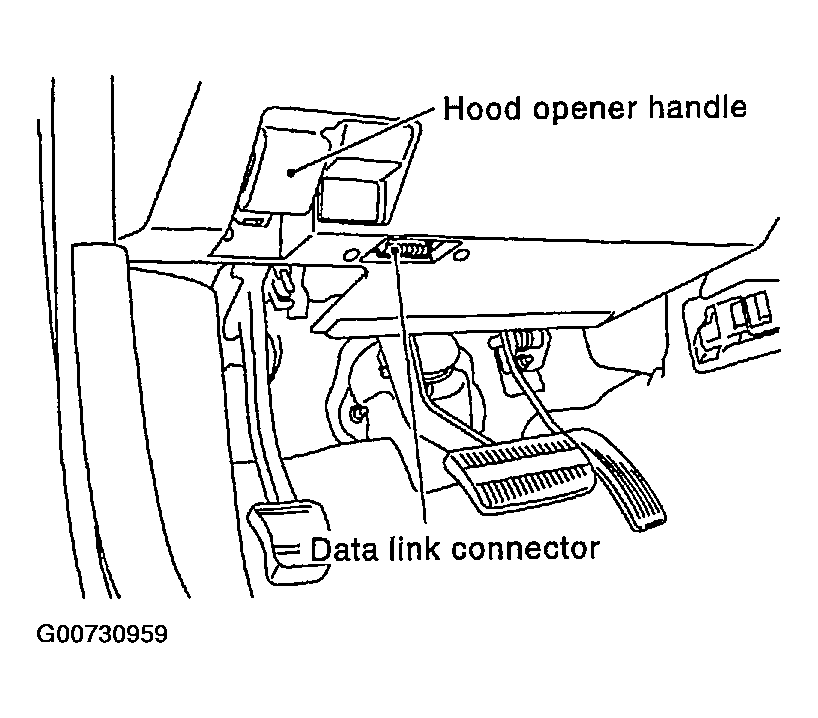

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

Fig 2: Self Diagnosis Inspection Procedure Sequence (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ENGINE". If "ENGINE" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT

Fig 3: Self Diagnosis Inspection Procedure Sequence (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

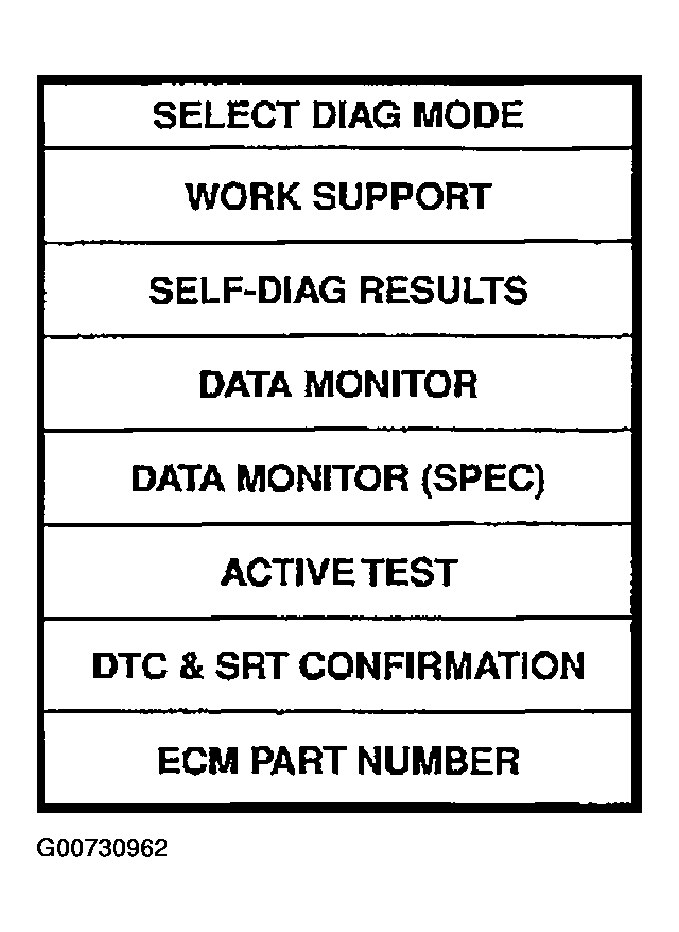

Perform each diagnostic test mode according to each service procedure.

For further information, see the CONSULT-II Operation Manual.

Fig 4: Self Diagnosis Inspection Procedure Sequence (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
