Inspection Procedure

Turn ignition switch OFF.
Connect "GST" to data link connector, which is located under LH dash panel near the hood opener handle.
Turn ignition switch ON.
Enter the program according to instruction on the screen or in the operation manual.
(*:Regarding GST screens in this procedure, sample screens are shown.)

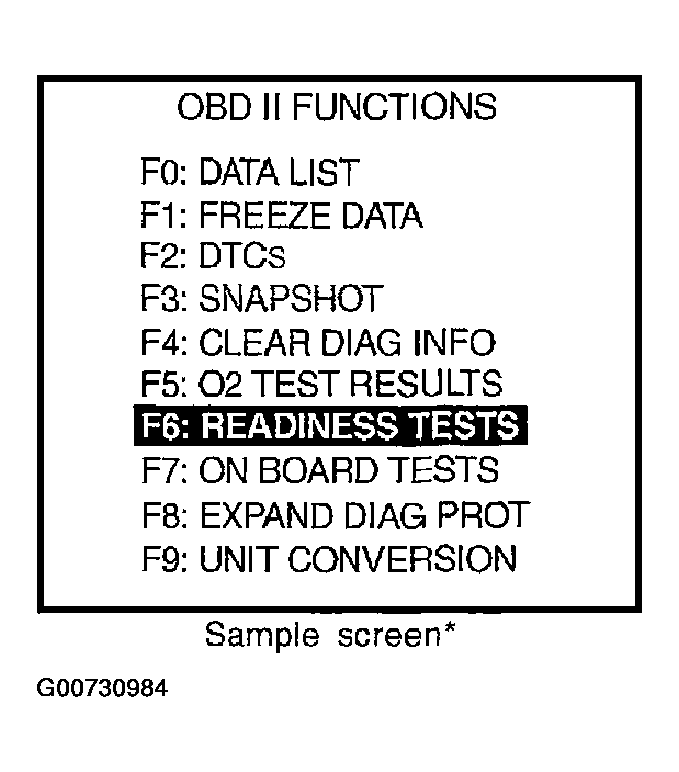

Fig 1: Identifying Sample Screens Of GST Screen (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic mode according to each service procedure.
For further information, see the GST Operation Manual of the tool maker.

Fig 2: Identifying Sample Screens Of GST Screen (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
