Stop Lamp Switch

  1. Turn ignition switch OFF.
  2. Disconnect stop lamp switch harness connector.
  3. Check harness continuity between stop lamp switch terminals 1 and 2 under the following conditions.
    BRAKE PEDAL CONDITION AND CONTINUITY

    Condition Continuity
    When brake pedal is fully released. Should not exist.
    When brake pedal is depressed. Should exist.

    If NG, adjust stop lamp switch installation, refer to BRAKE PEDAL and perform step  3 again.

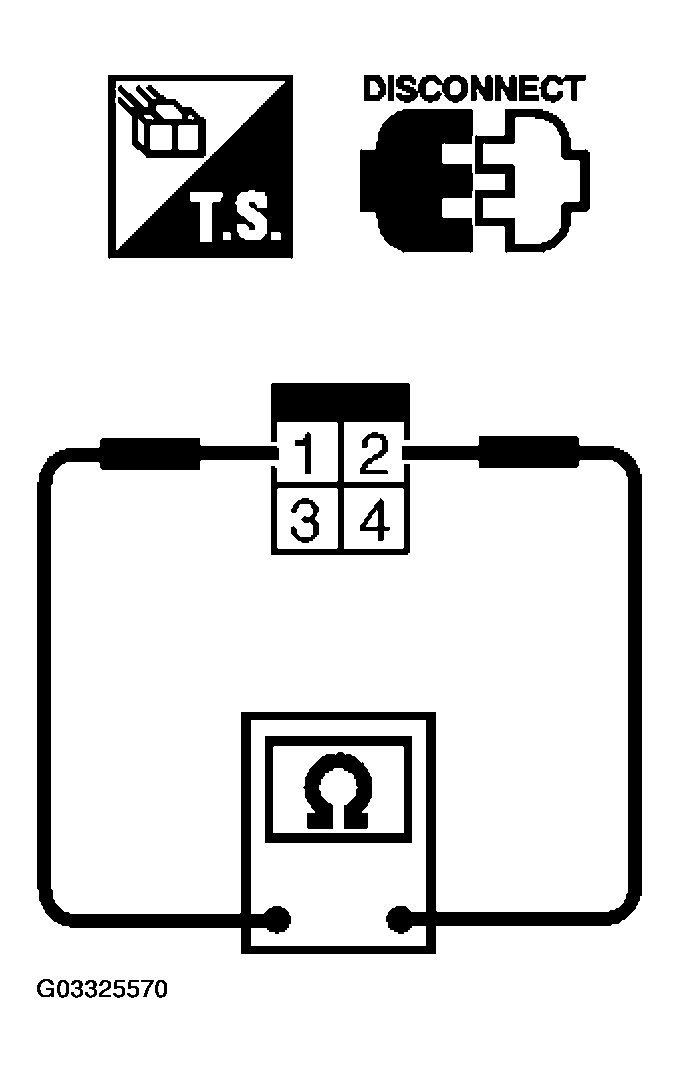

    Fig 1: Checking Harness Continuity Between Stop Lamp Switch Terminals 1 & 2
    G03325570Courtesy of NISSAN MOTOR CO., U.S.A.
