Component Inspection: Condenser

  1. Turn ignition switch OFF.
  2. Disconnect condenser harness connector.
  3. Check resistance between condenser terminals 1 and 2.
    CONDENSER TERMINALS RESISTANCE

    Resistance Above 1 MΩ at 25°C (77°F)

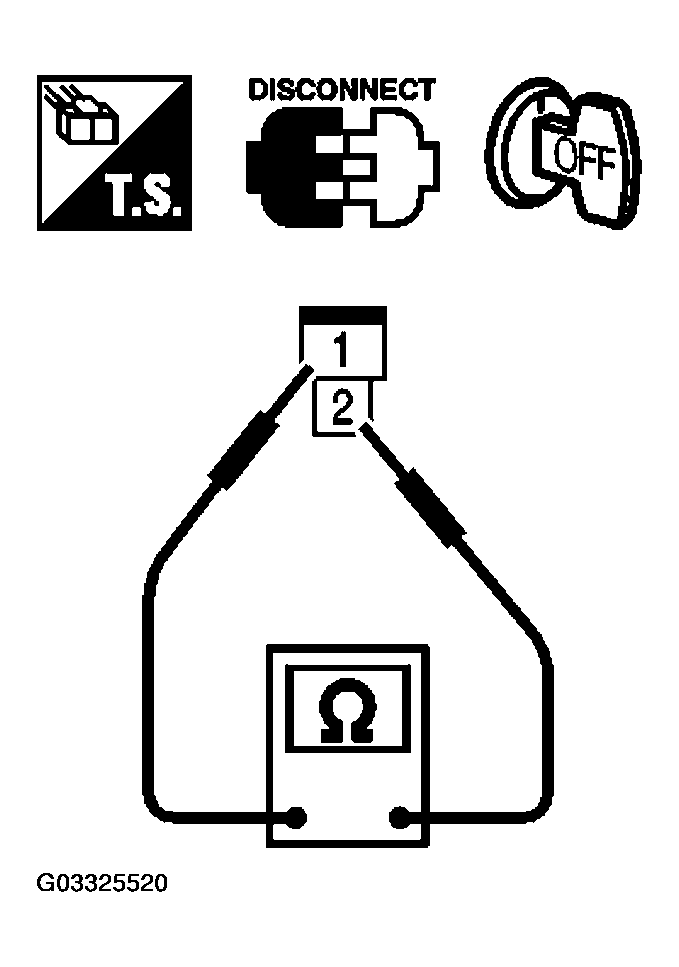

    Fig 1: Checking Resistance Between Condenser Terminals
    G03325520Courtesy of NISSAN MOTOR CO., U.S.A.
