Method B

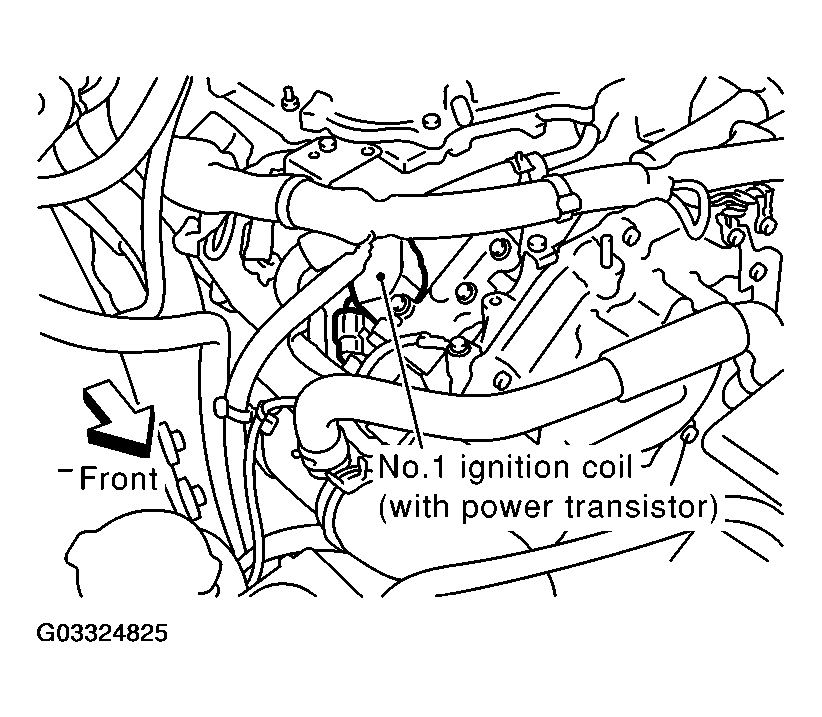

  1. Remove No. 1 ignition coil.
    Fig 1: Removing No. 1 Ignition Coil
    G03324825Courtesy of NISSAN MOTOR CO., U.S.A.

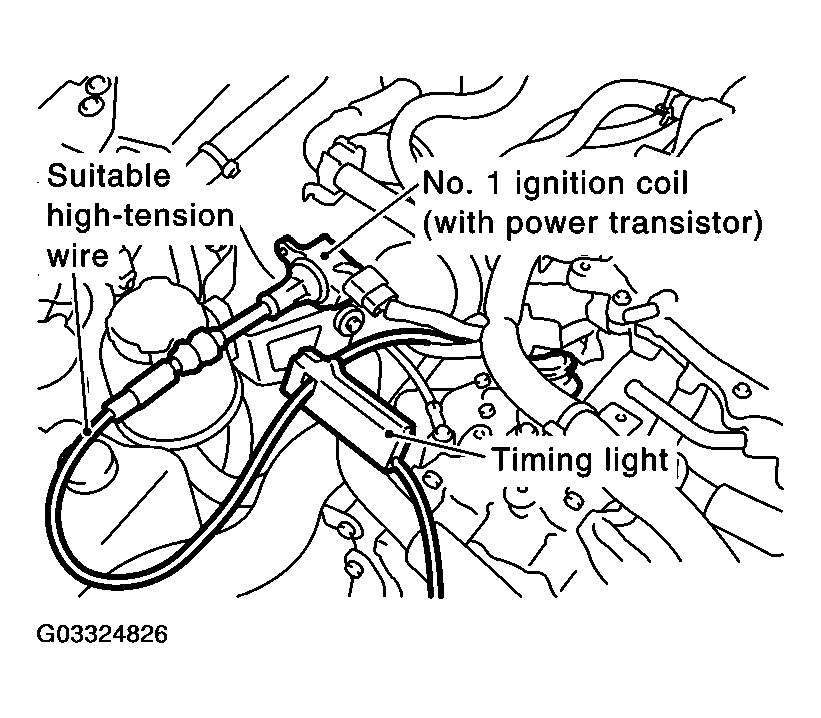

  2. Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.
    Fig 2: Connecting No. 1 Ignition Coil & No. 1 Spark Plug
    G03324826Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 3: Identifying High Tension Wire
    G03324827Courtesy of NISSAN MOTOR CO., U.S.A.

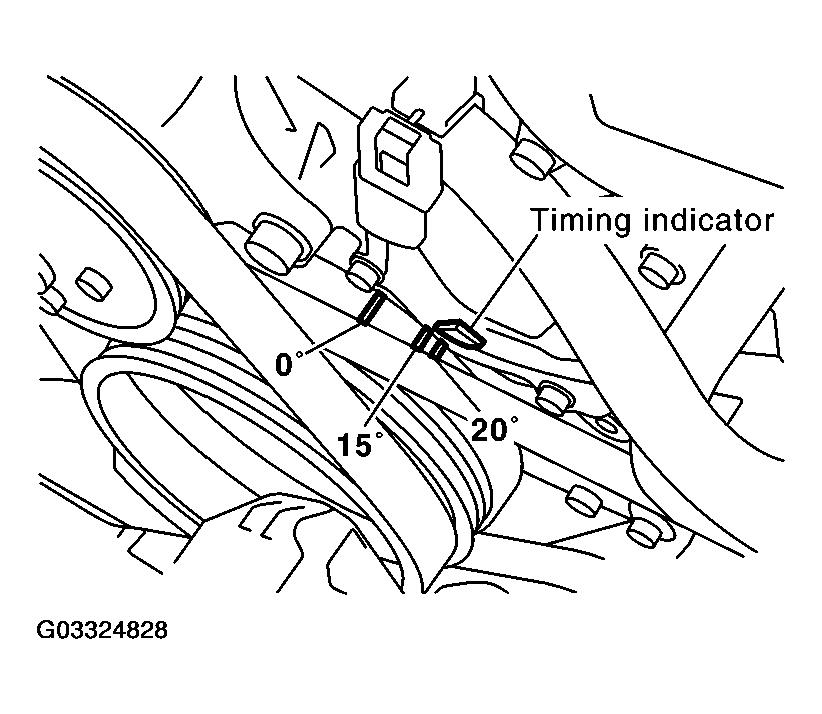

  3. Check ignition timing.
    Fig 4: Checking Ignition Timing
    G03324828Courtesy of NISSAN MOTOR CO., U.S.A.
