Vacuum Hose Drawing

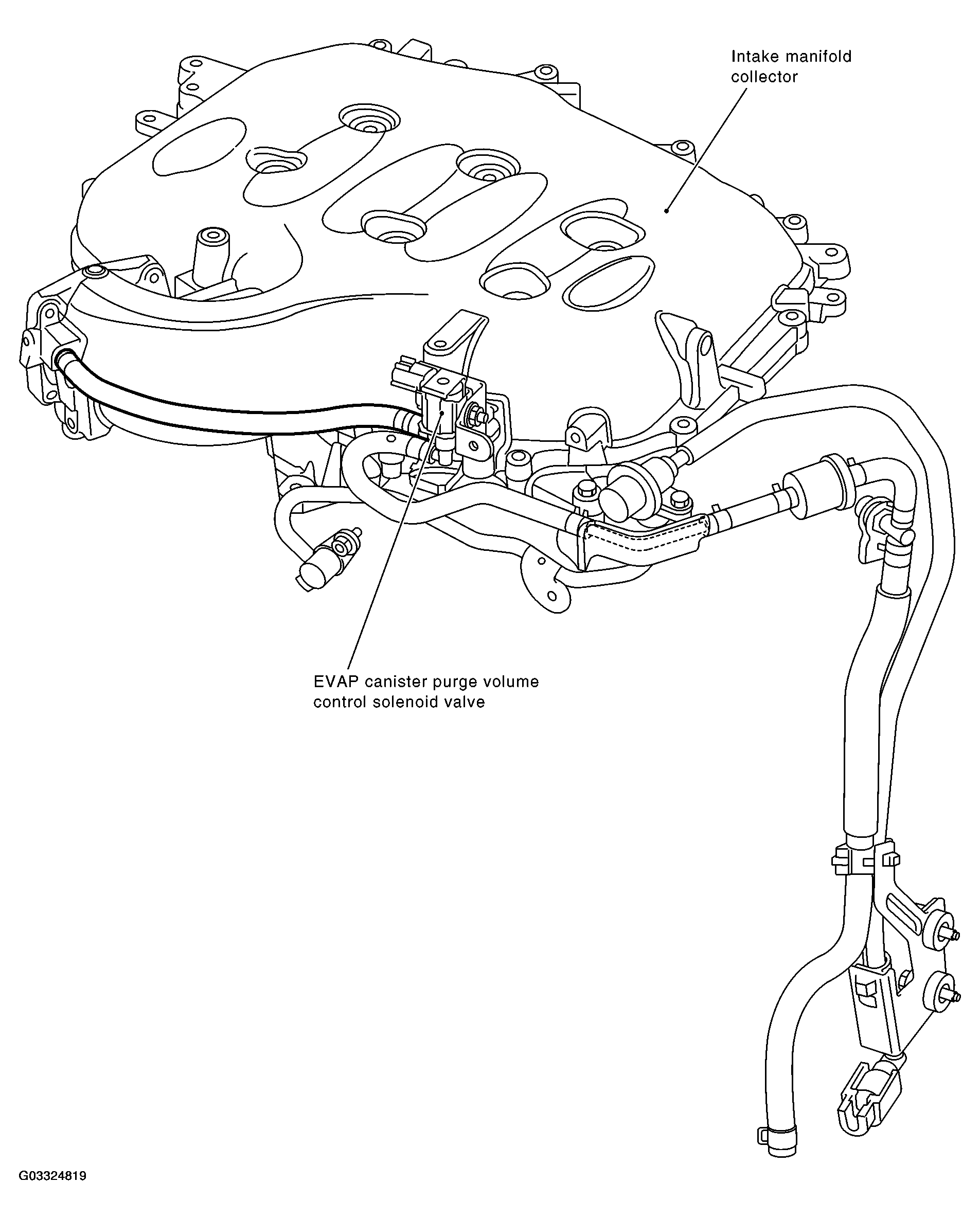

Fig 1: Vacuum Hose Drawing
G03324819Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

Refer to " SYSTEM DIAGRAM  " for Vacuum Control System  .
