"Retained PWR"

Turn ignition switch "OFF".
Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.

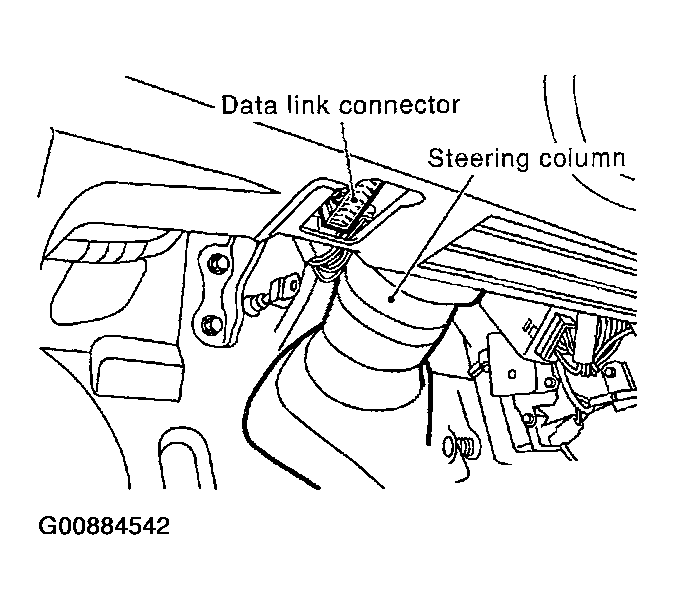

Fig 1: Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

Fig 2: Identifying START (NISSAN BASED VHCL) Button
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SMART ENTRANCE".

Fig 3: Identifying SMART ENTRANCE Button
Courtesy of NISSAN MOTOR CO., U.S.A.

If SMART ENTRANCE is not indicated, go to CONSULT-II START PROCEDURE .
Touch "RETAINED PWR".

Fig 4: Identifying RETAIN PWR Button
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.

Fig 5: Identifying DIAGNOSIS MODE Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
