Diagnostic Procedure

ABS actuator and electric unit (control unit) power supply and ground circuit inspection

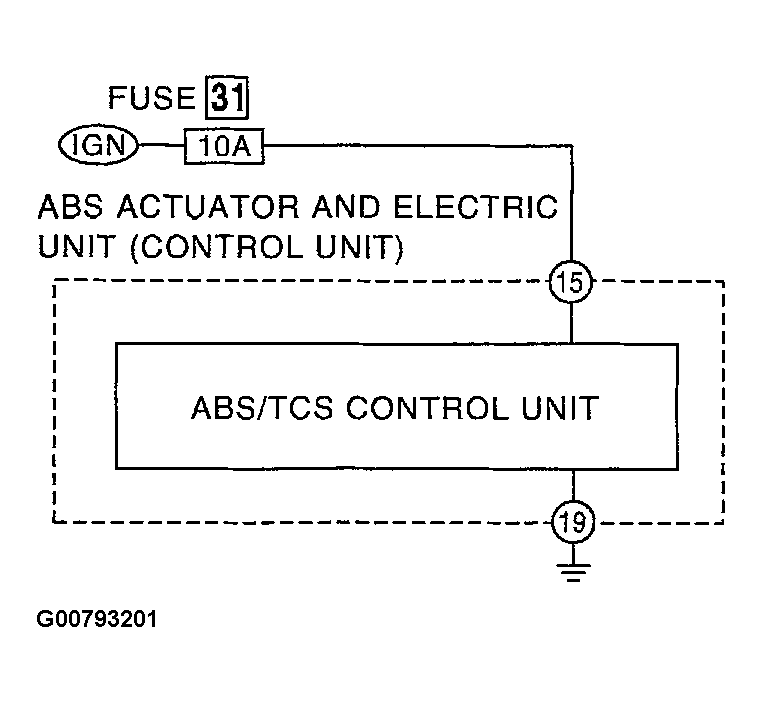

Fig 1: Inspecting ABS Actuator & Electric Unit Power Supply

Courtesy of NISSAN MOTOR CO., U.S.A.

GO TO 2.

1. Disconnect ABS actuator and electric unit (control unit) connector E162.

   Check terminals for damage or loose connections. Then reconnect connectors.

2. Carry out self-diagnosis again.

Does warning lamp activate again?

Yes: GO TO 3.

No: Inspection End

Check voltage. Refer to LOW VOLTAGE  .

Does battery voltage exist when ignition switch is turned ON?

Yes: GO TO 4.

No: Repair.

Check "SELF DIAGNOSIS RESULTS", if "CONTROLLER FAILURE" is indicated on the screen.

Yes: Replace ABS actuator and electric unit (control unit).

No: Inspect the system according to the code No.
