Diagnostic Procedure

  1. Inspection Start

    ABS motor relay inspection

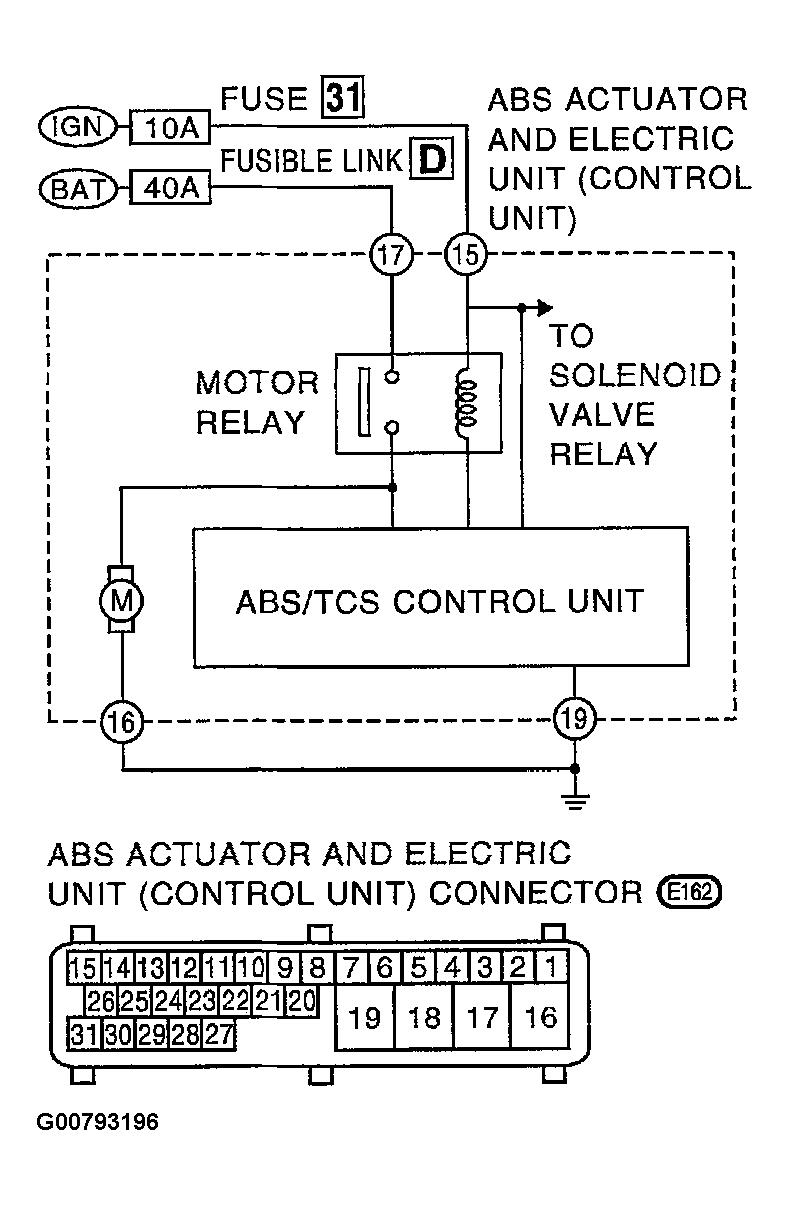

    Fig 1: ABS Motor Relay Circuit Diagram
    G00793196Courtesy of NISSAN MOTOR CO., U.S.A.

    : GO TO 2.

  2. Check Motor Power Supply Circuit

    Check 40A [D] fusible link (ABS MTR) for ABS motor relay. For fusible link layout, refer to FUSES & CIRCUIT BREAKERS .

    Is fusible link OK?

    Yes: GO TO 3.

    No: GO TO  6 .

  3. Check Connector
    1. Disconnect ABS actuator and electric unit (control unit) connector E162. Check terminals for damage or loose connection. Then reconnect connectors.
    2. Carry out self-diagnosis again.

    Does warning lamp activate again?

    Yes: GO TO 4.

    No: Inspection End

  4. Check Motor Relay Power Supply Circuit
    1. Disconnect ABS actuator and electric unit (control unit) connector E162.
    2. Check voltage between ABS actuator and electric unit (control unit) harness connector E162 terminal 15 (GY) and 17 (Y) and ground.
      Fig 2: Checking Motor Relay Power Supply Voltage
      G00793197Courtesy of NISSAN MOTOR CO., U.S.A.

    Does battery voltage exist?

    Yes: GO TO 5.

    No: Check the following.

    • Harness connector E162
    • Harness for open or short between ABS actuator and electric unit (control unit) and fusible link

      If NG, repair harness or connectors.

  5. Check ABS Actuator And Electric Unit (Control Unit) Ground Circuit

    Refer to ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) GROUND  in Ground Circuit Check.

    Is ground circuit OK?

    Yes: Replace ABS actuator and electric unit (control unit).

    No: Check the following.

    • Harness connector E162
    • Harness for open or short between ABS actuator and electric unit (control unit) and ground

      If NG, repair harness or connectors.

  6. Replace Fusible Link

    Replace fusible link.

    Does the fusible link blow out when ignition switch is turned "ON"?

    Yes: GO TO 7.

    No: Inspection End

  7. Check ABS Actuator Motor Power Supply Circuit
    1. Disconnect battery cable and ABS actuator and electric unit (control unit) connector E162.
    2. Check continuity between ABS actuator and electric unit (control unit) harness connector E162 terminal 15 (GY) and 17 (Y) and ground.
    Fig 3: Checking ABS Actuator Motor Power Supply Circuit
    G00793198Courtesy of NISSAN MOTOR CO., U.S.A.

    Does continuity exist?

    Yes: Check the following.

    • Harness connector E162
    • Harness for open or short between ABS actuator and electric unit (control unit) and fusible link

      If NG, repair harness or connectors.

    No: Check ABS actuator and electric unit (control unit) connector E162 pin terminals for damage or the connection of ABS actuator and electric unit (control unit) harness connector E 162. Reconnect ABS actuator and electric unit (control unit) harness connector E162. Then retest.
