Brake Control System - TCS: Schematic

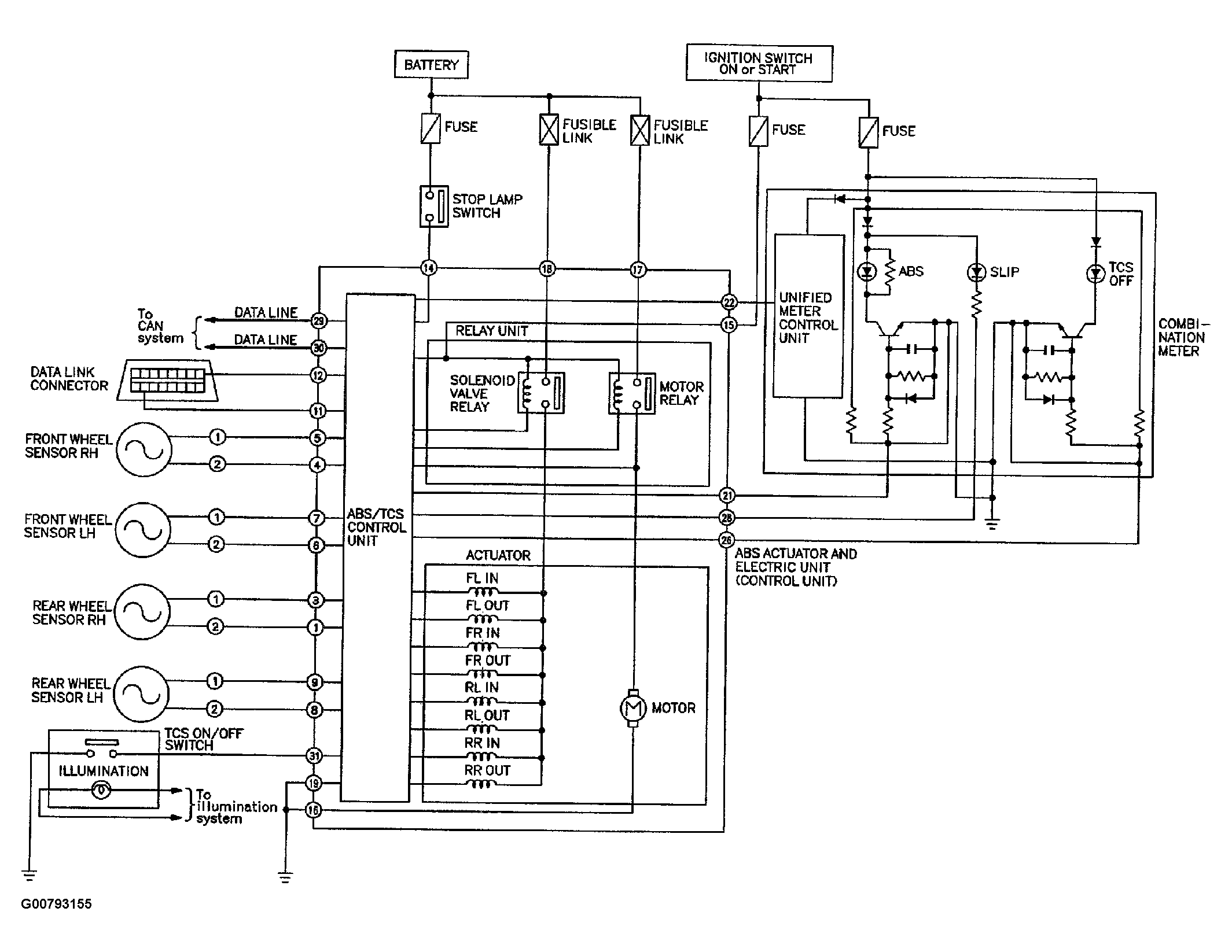

Fig 1: TCS Schematic

G00793155

Courtesy of NISSAN MOTOR CO., U.S.A.
