Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

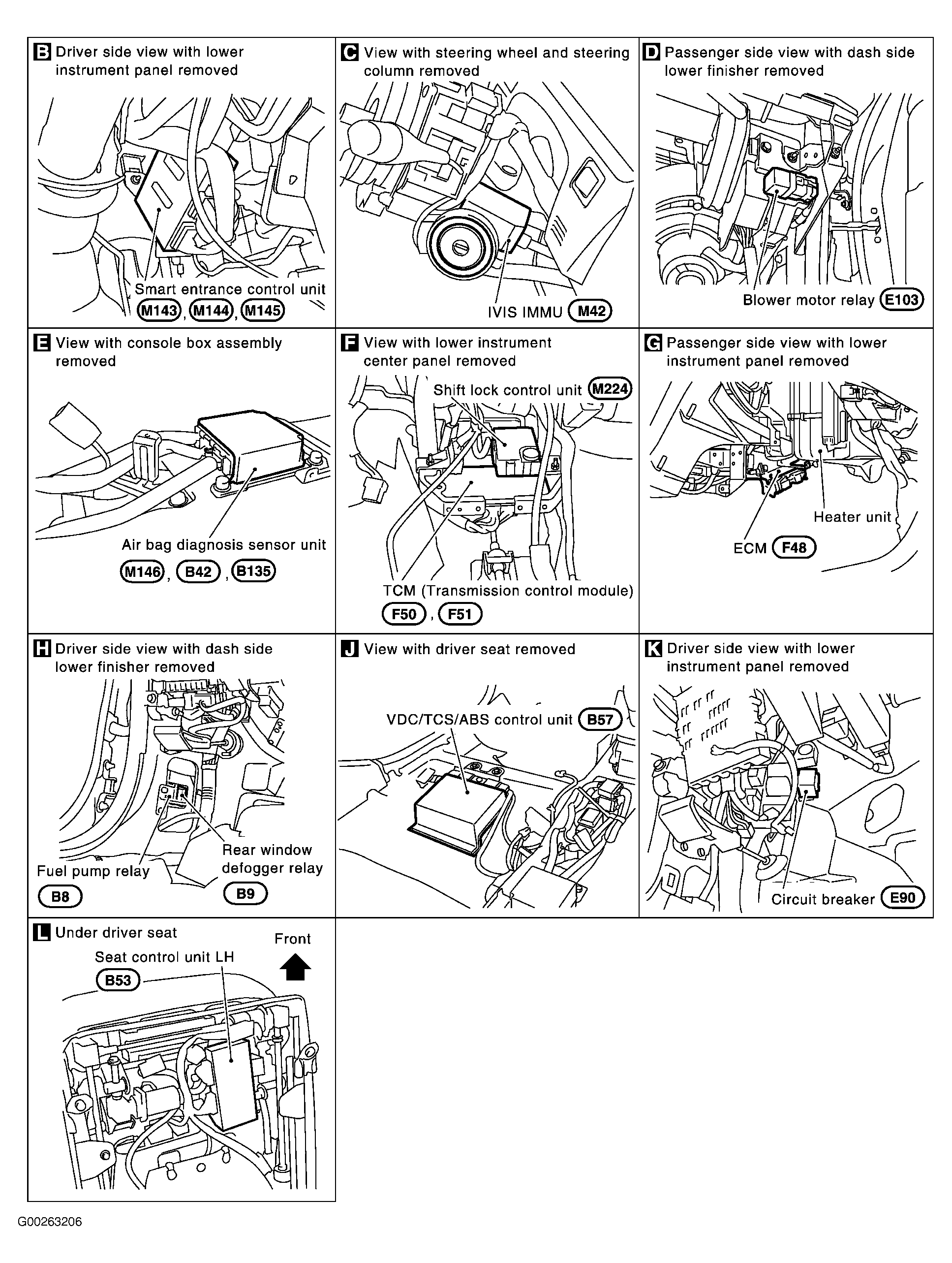

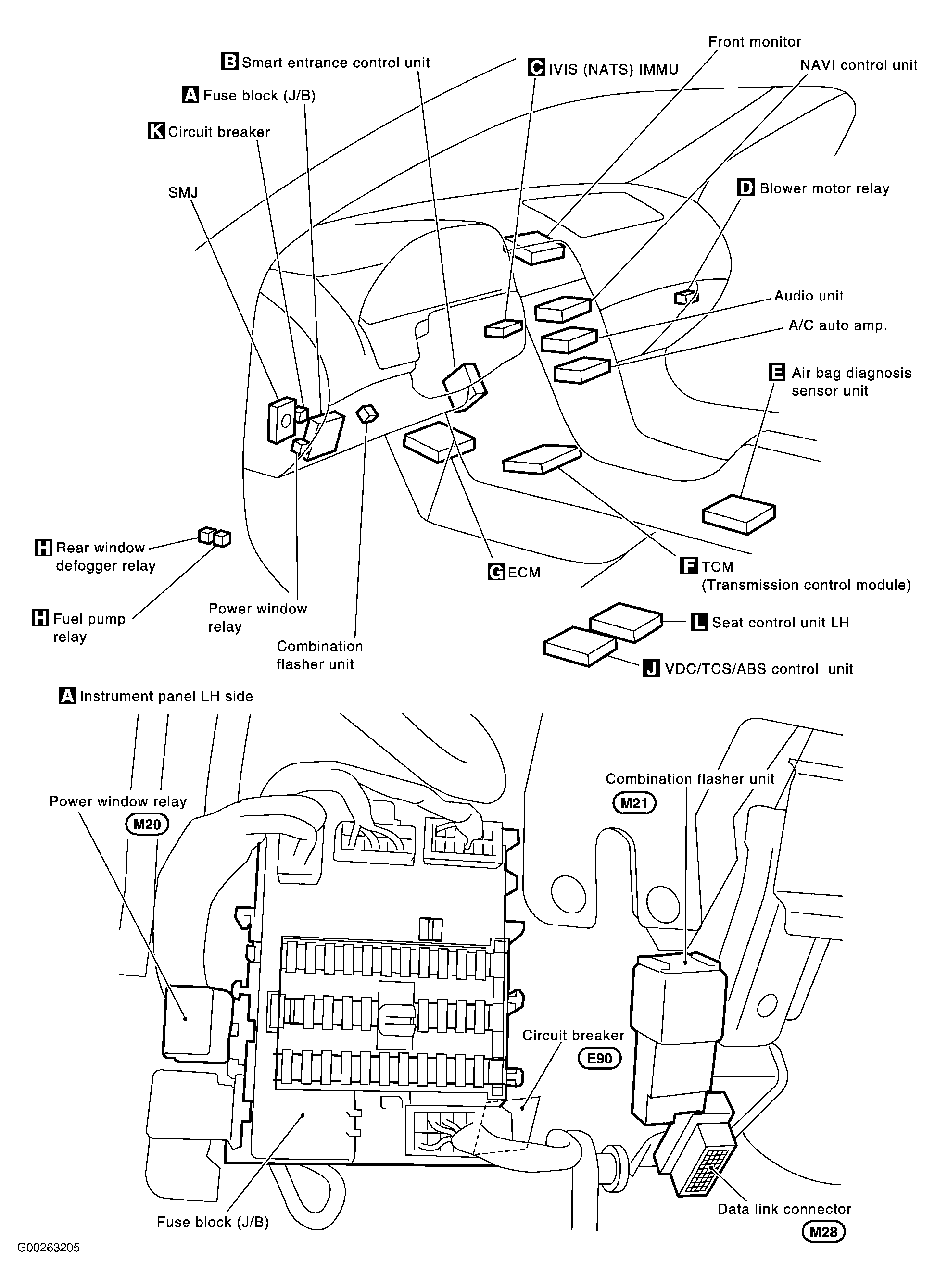

| Circuit Breaker | Behind left side of dash, near fuse block (J/B). See Figure . |
| Fuse Block (J/B) | Behind left side of dash. See Figure . |

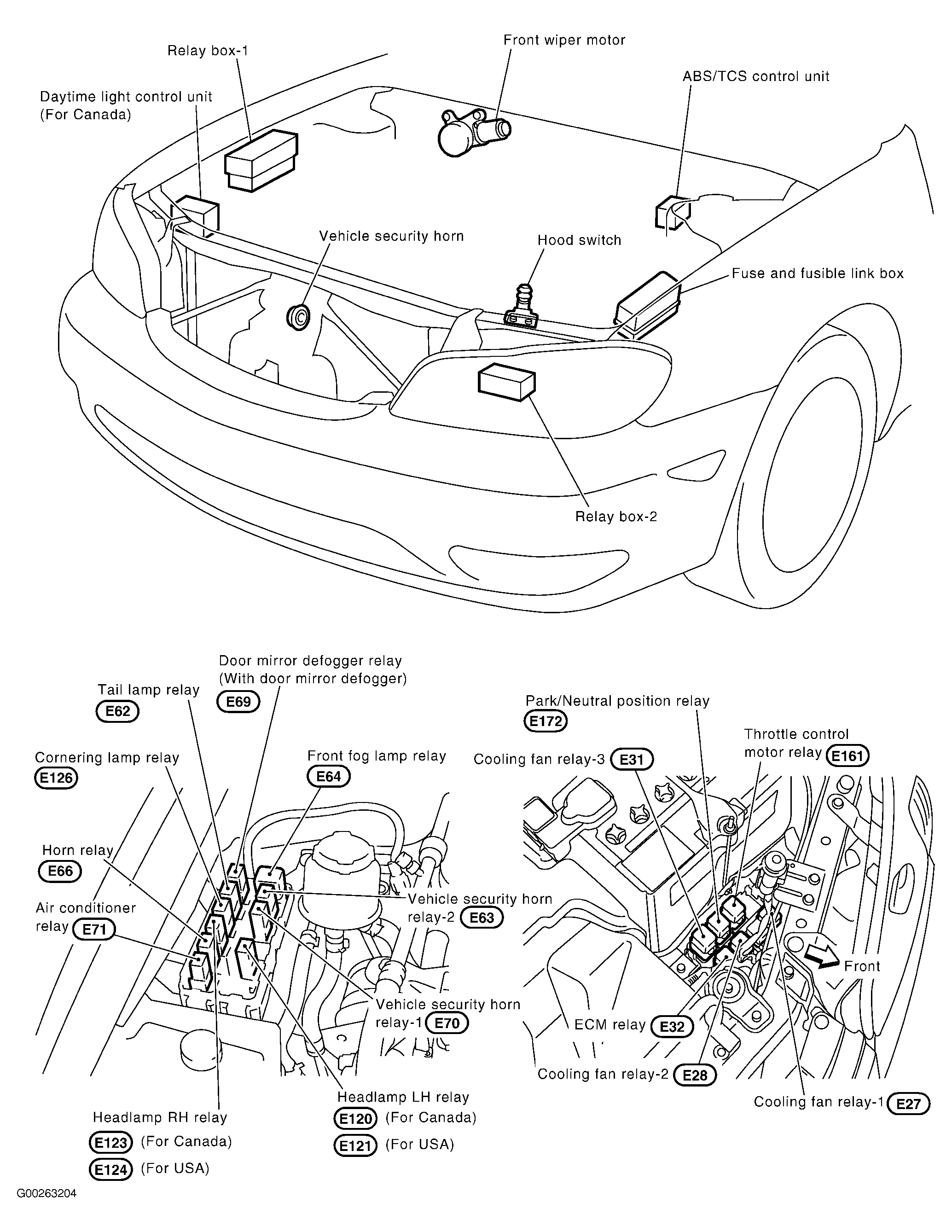

| Fuse & Fusible Link Box | At left side of engine compartment. See Figure . |
| Relay Box-1 | At right side of engine compartment. See Figure . |
| Relay Box-2 | At left front corner of engine compartment. See Figure . |

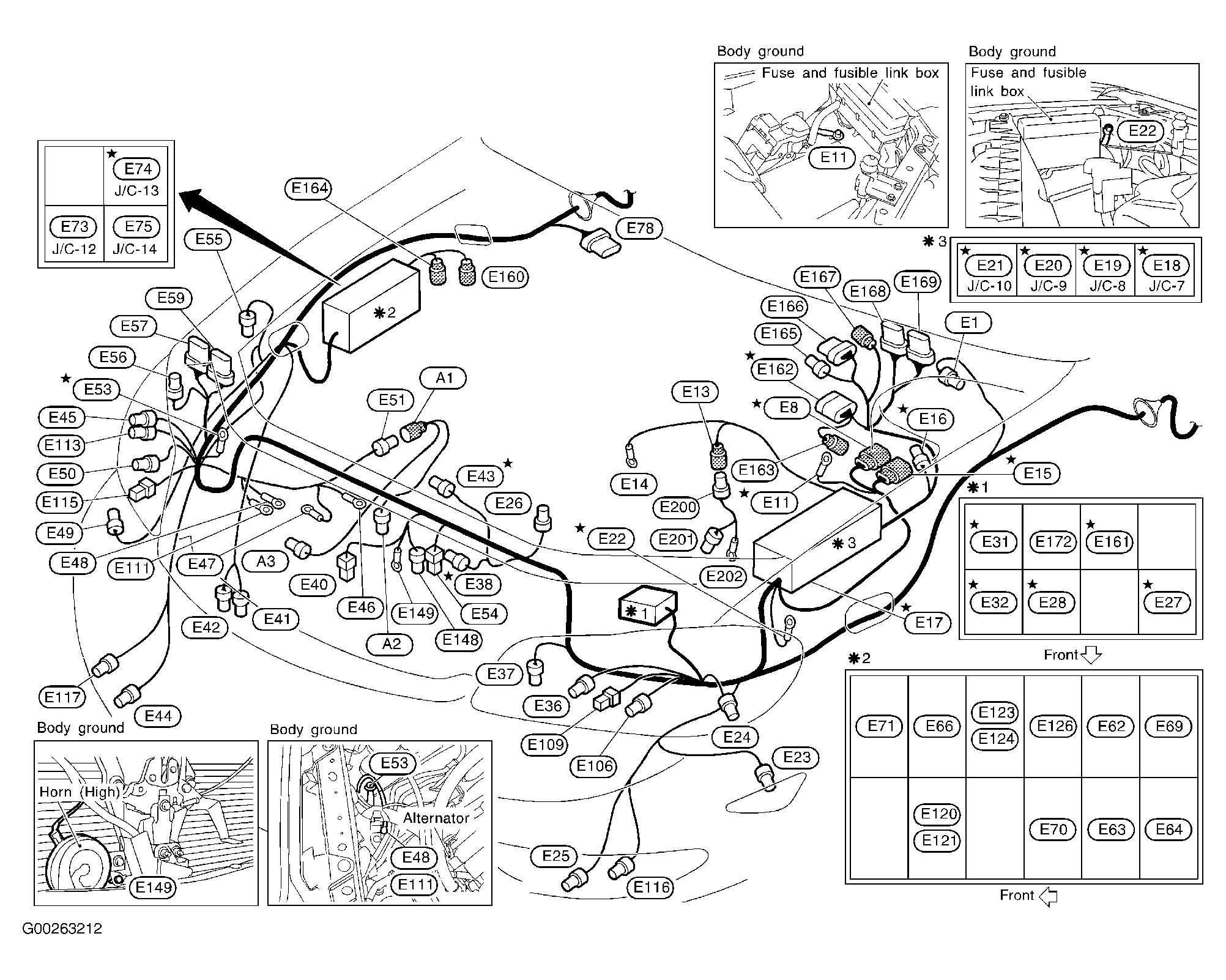

| VDC Relay Box (E165, E166) | At left rear of engine compartment, near ABS actuator & electrical unit. See Figure . |
