Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

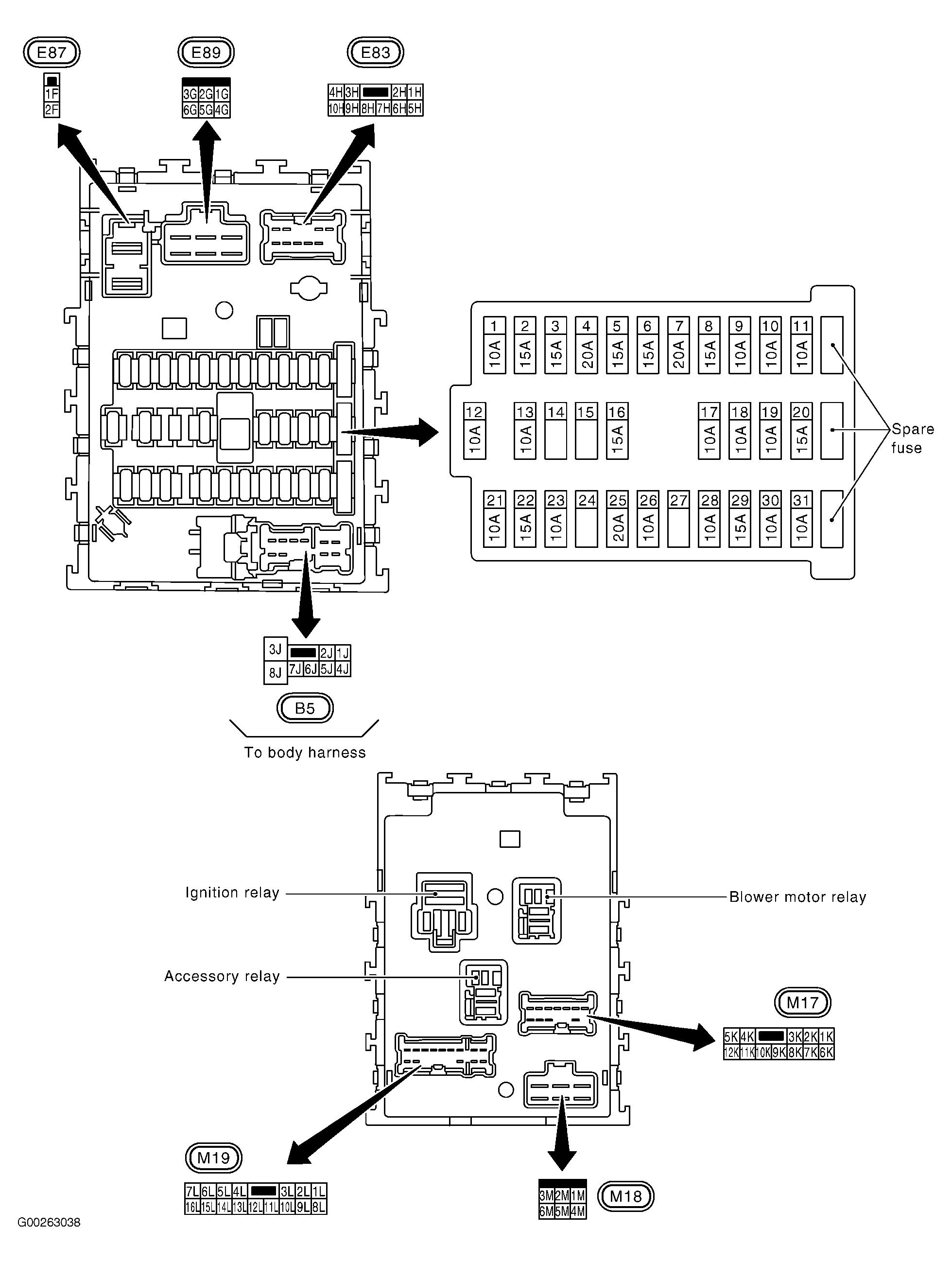

Fig 1: Fuse Block (J/B)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

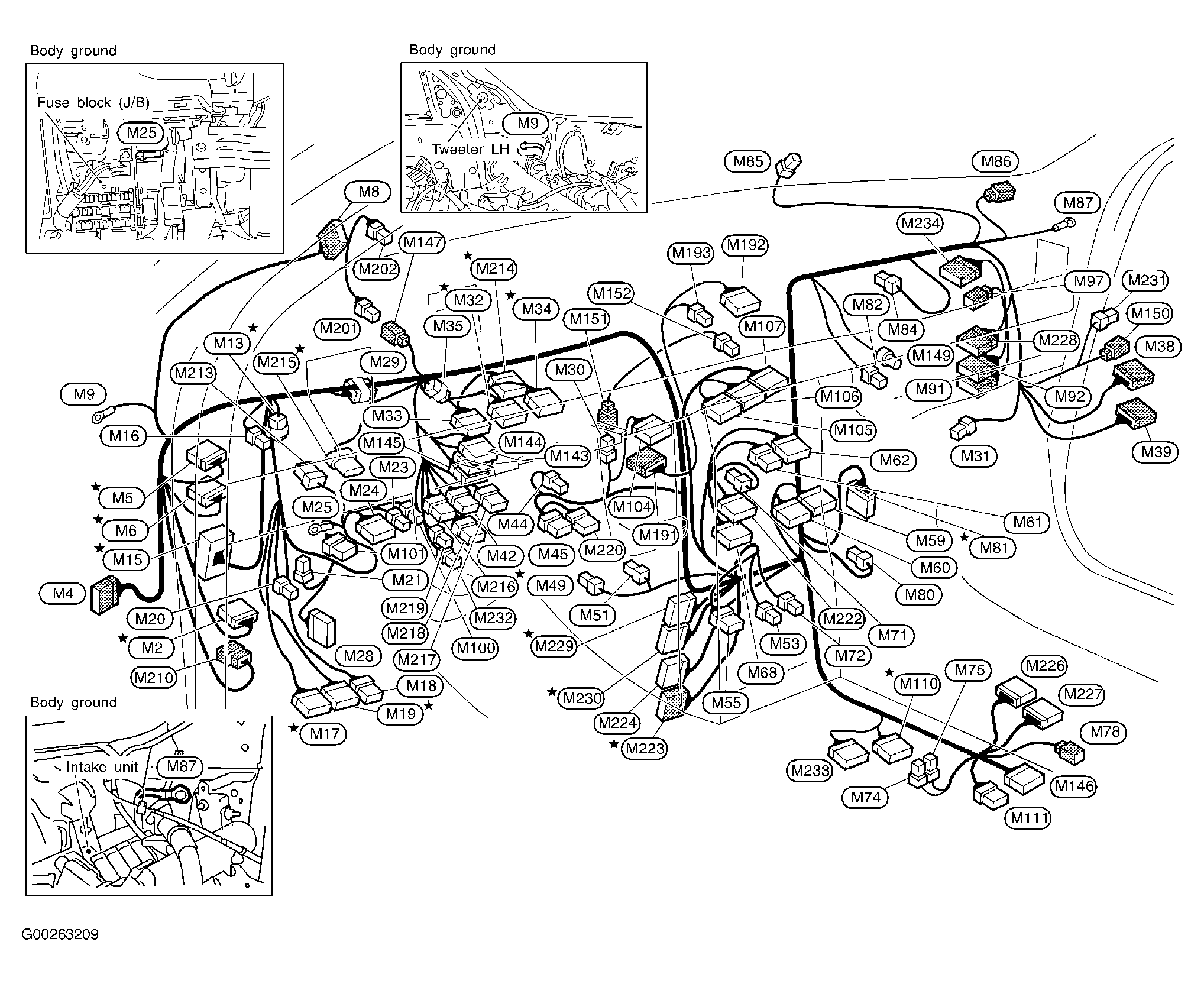

Fig 3: Dash (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Dash (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

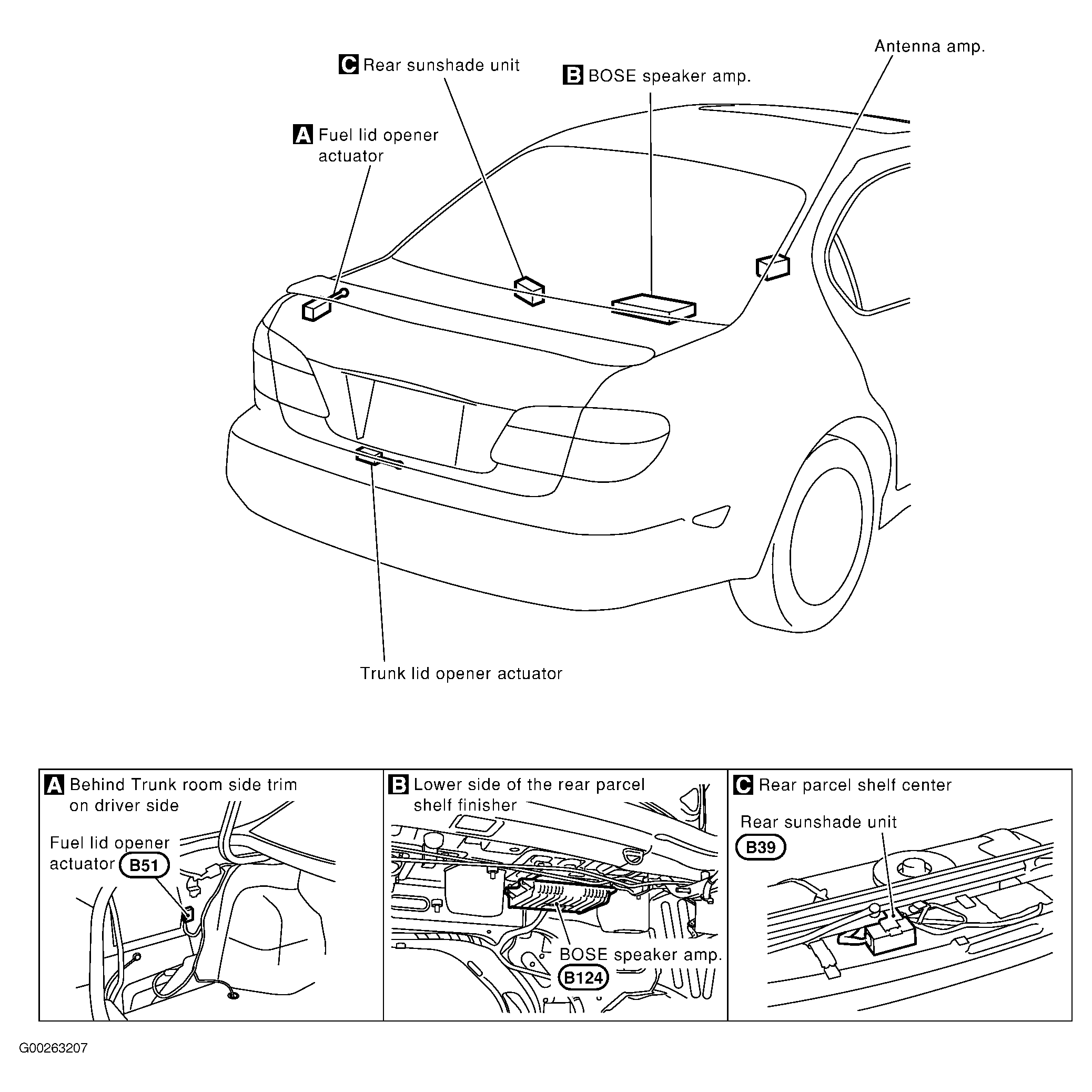

Fig 5: Rear Of Vehicle

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Front Of Passenger Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

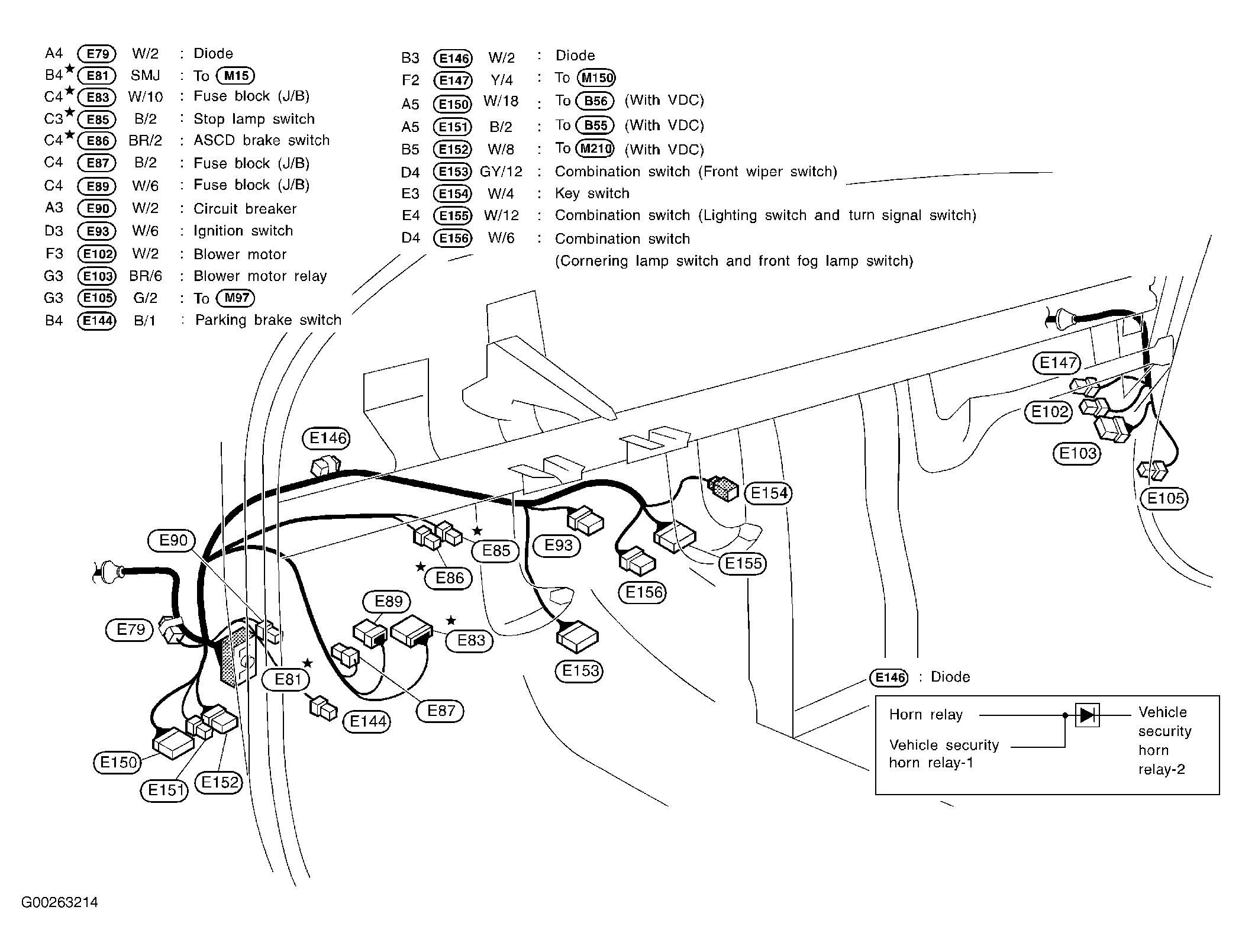

Fig 8: Dash

Courtesy of NISSAN MOTOR CO., U.S.A.

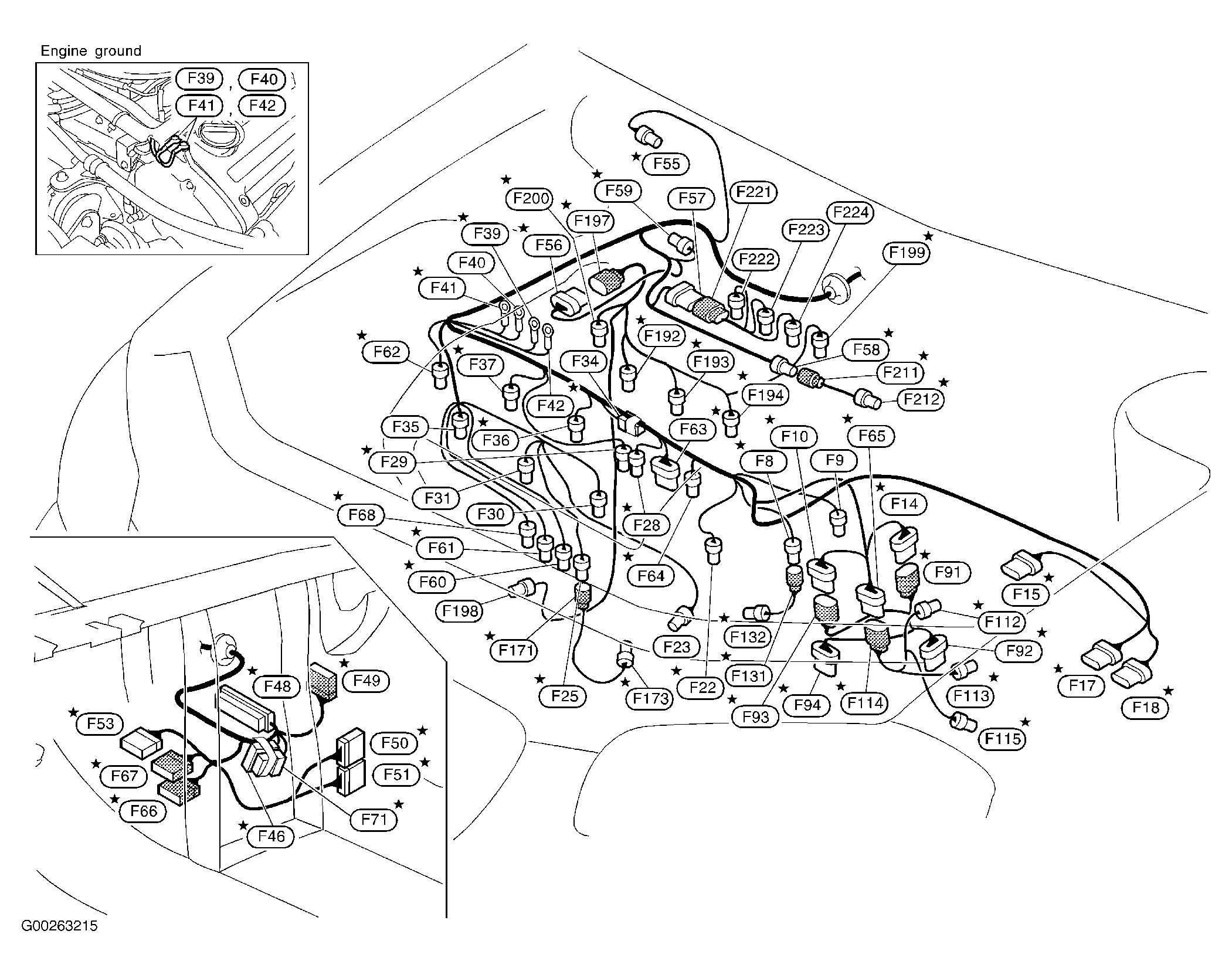

Fig 9: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

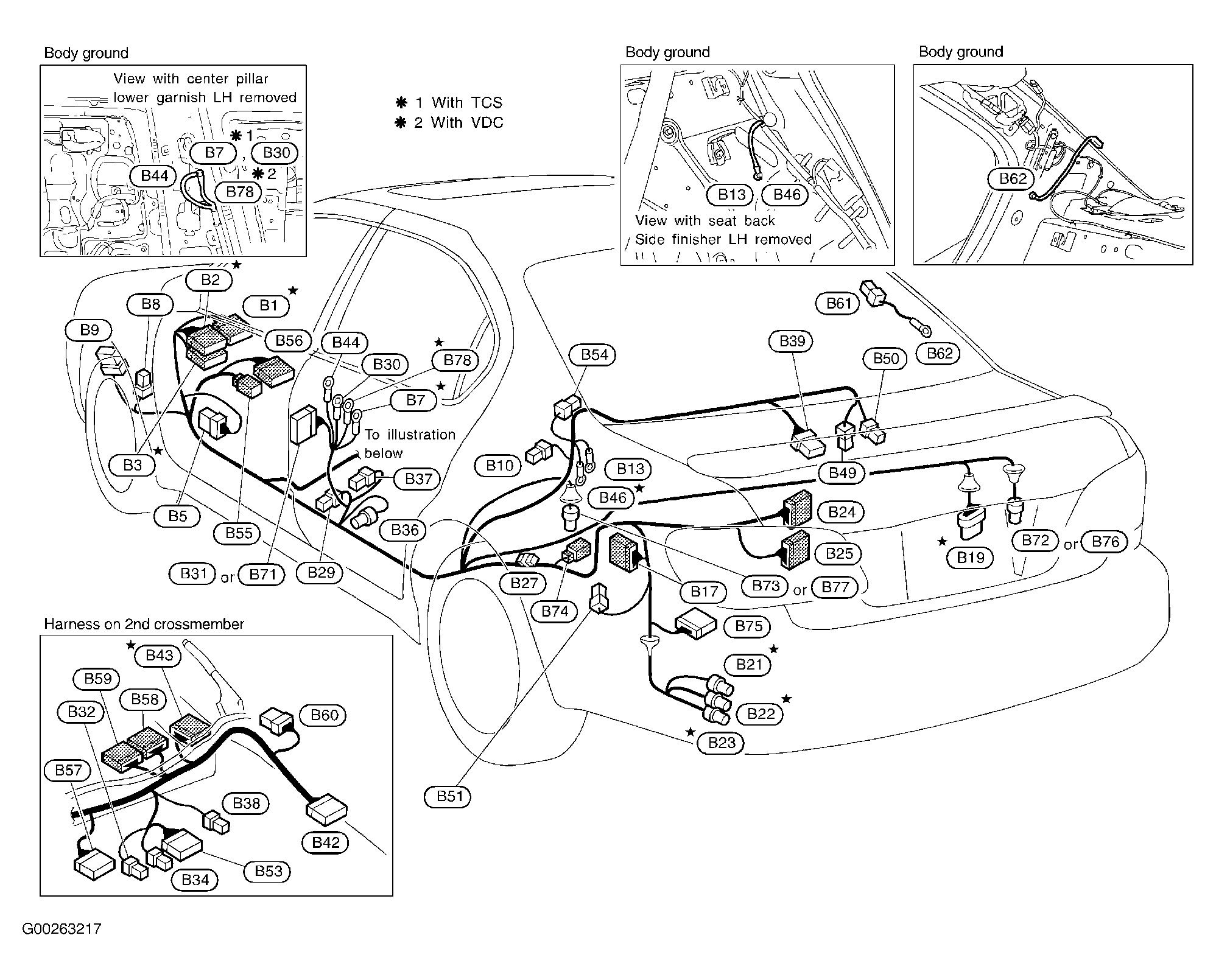

Fig 10: Body Overview

Courtesy of NISSAN MOTOR CO., U.S.A.

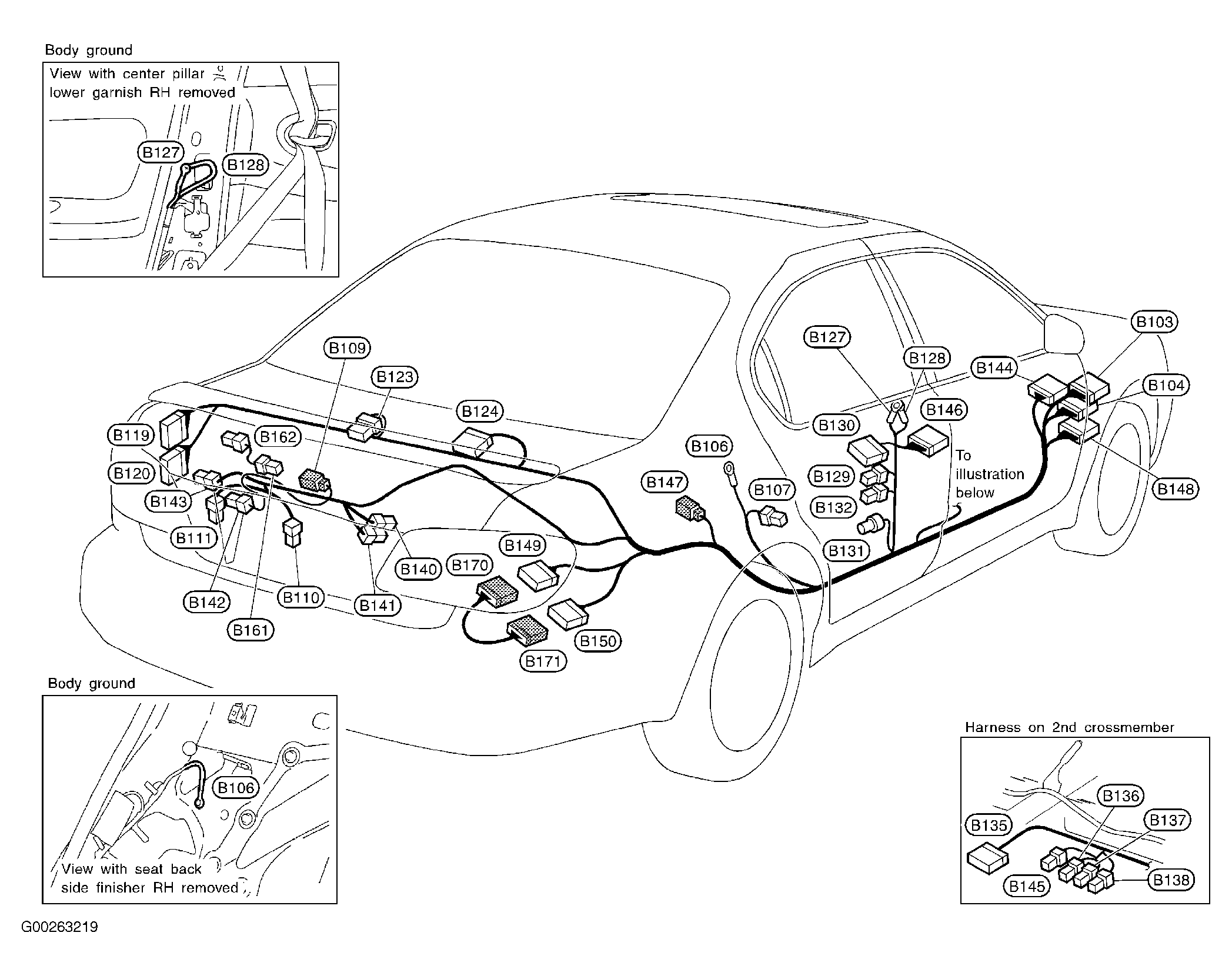

Fig 11: Body Overview

Courtesy of NISSAN MOTOR CO., U.S.A.

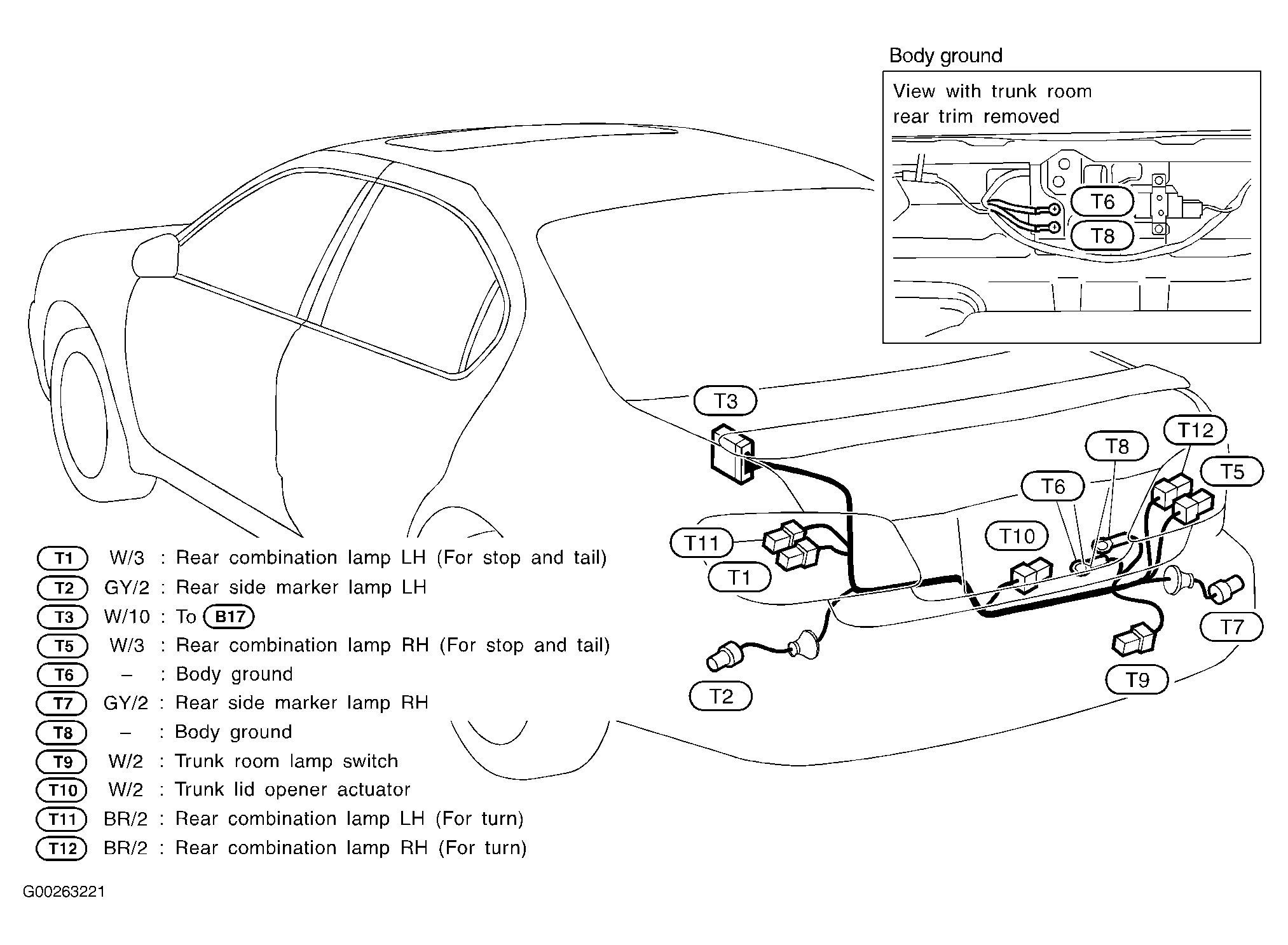

Fig 12: Rear Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

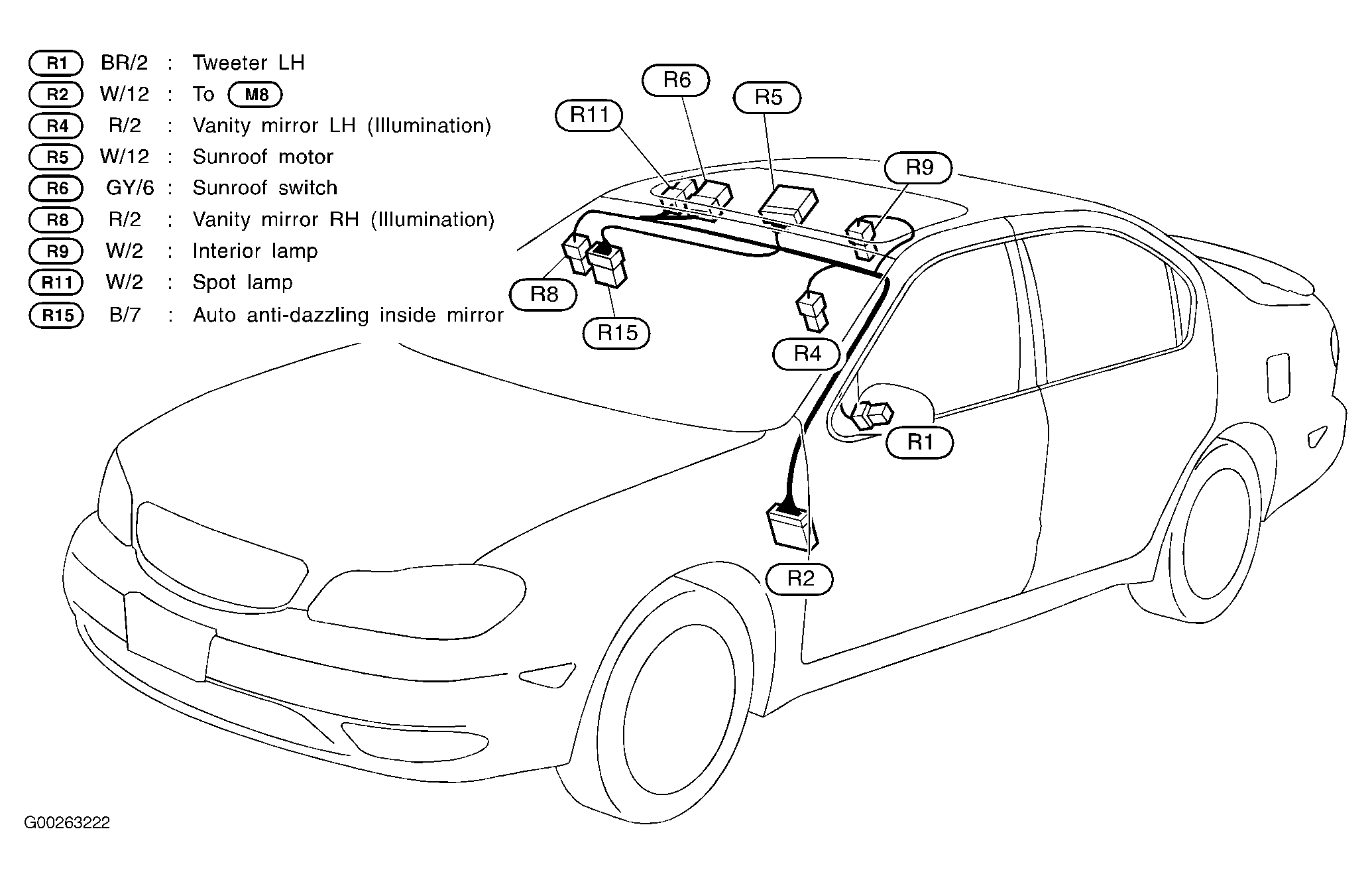

Fig 13: Headliner

Courtesy of NISSAN MOTOR CO., U.S.A.

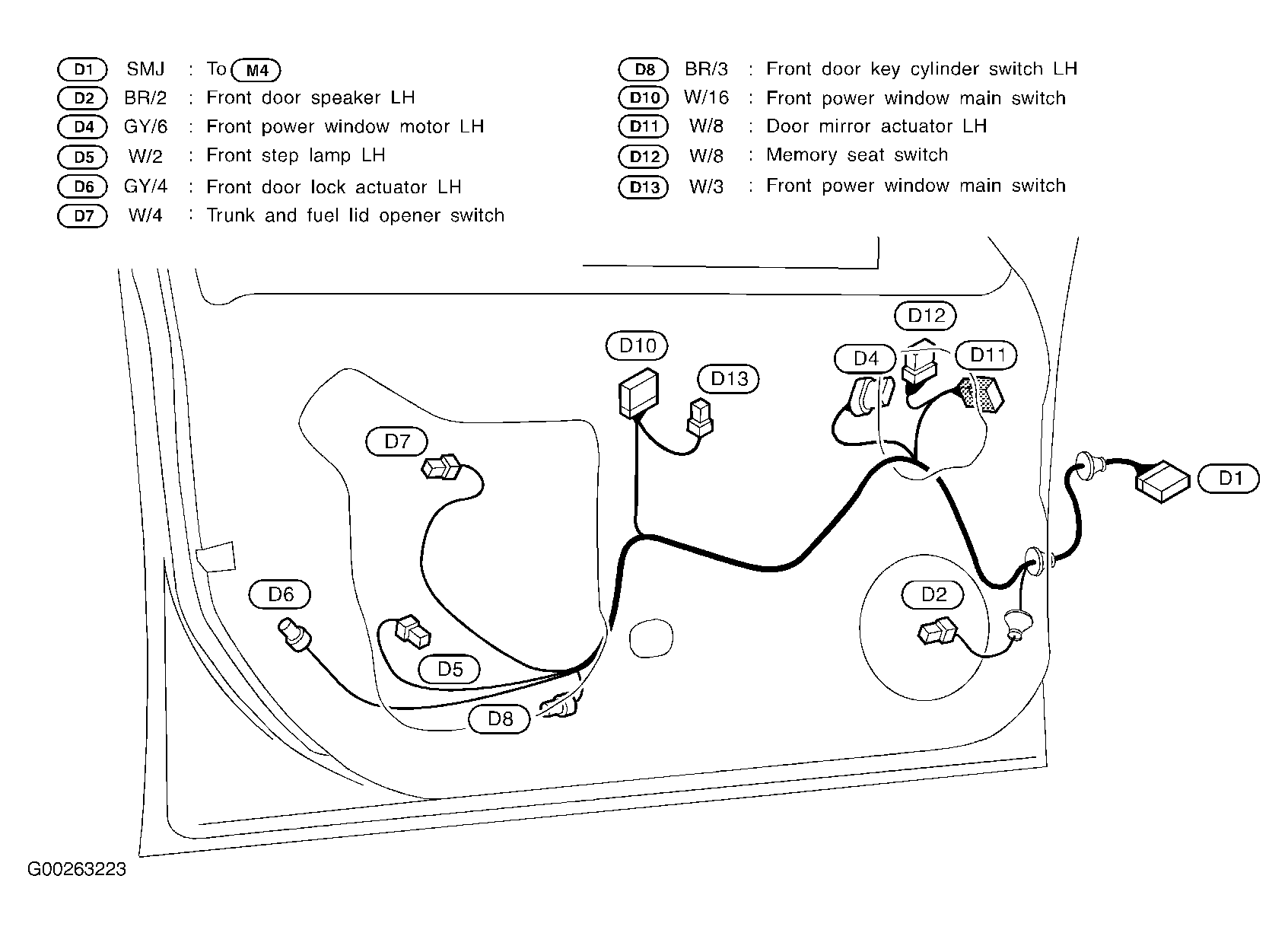

Fig 14: Left Front Door

Courtesy of NISSAN MOTOR CO., U.S.A.

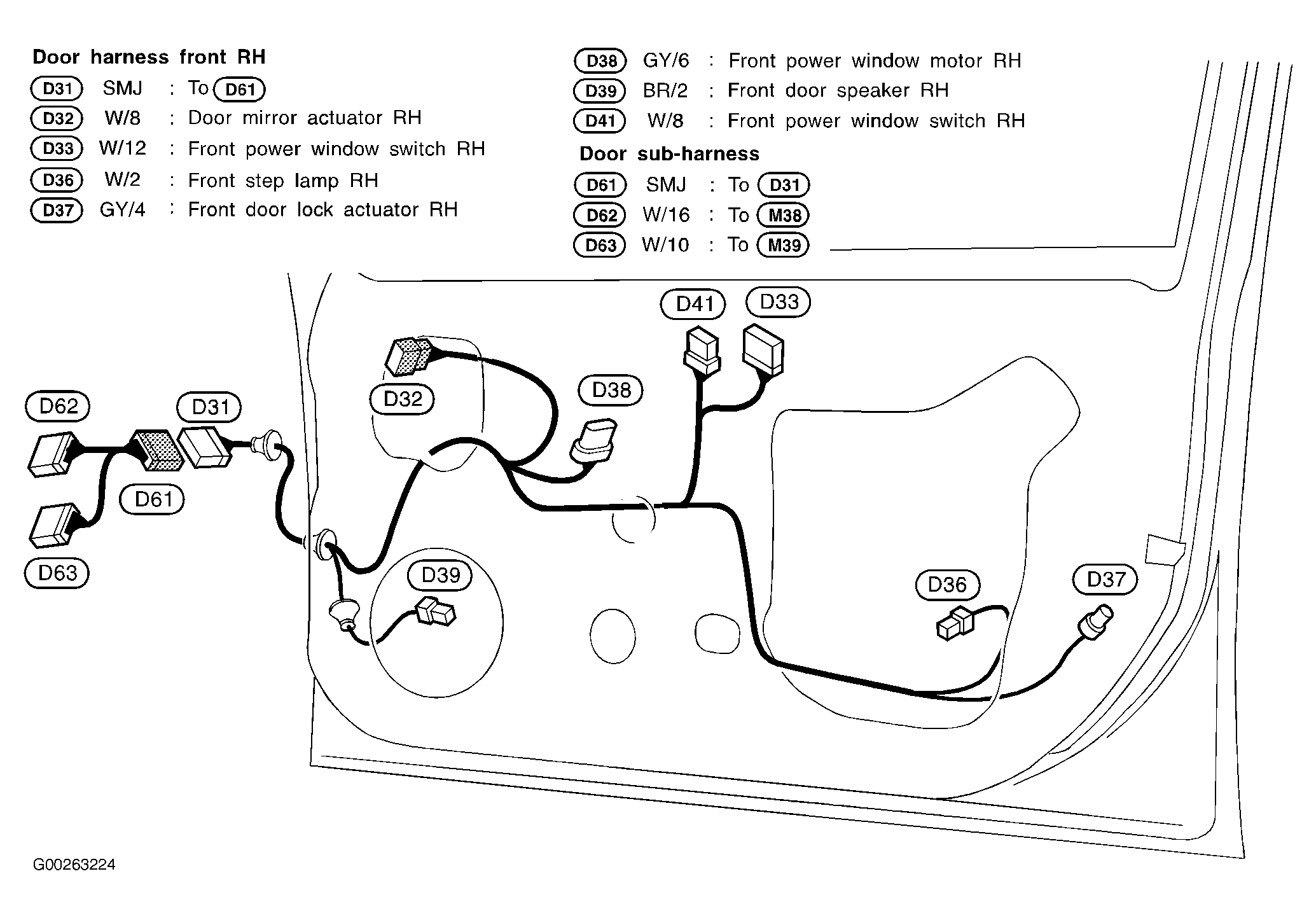

Fig 15: Right Front Door

Courtesy of NISSAN MOTOR CO., U.S.A.

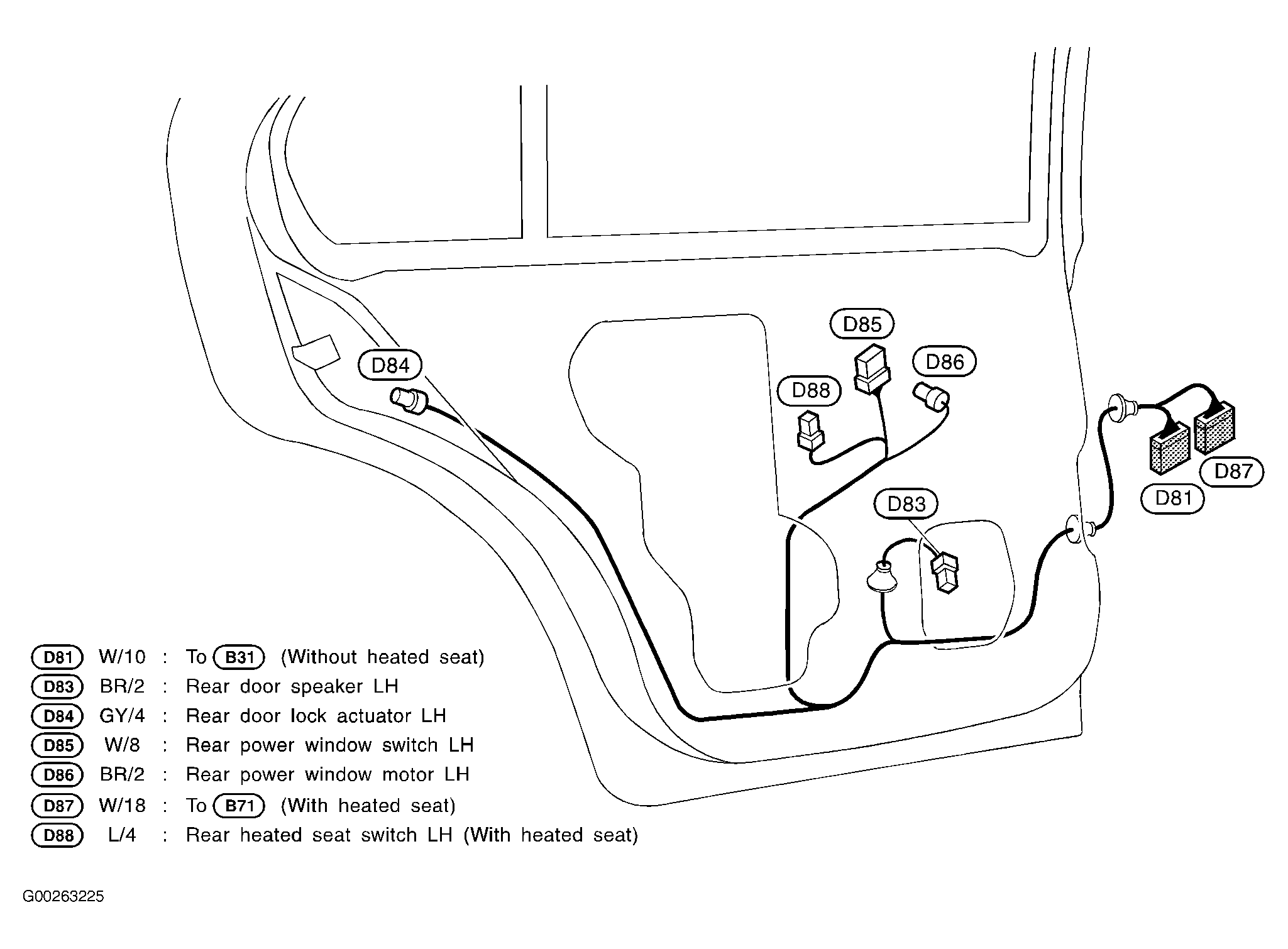

Fig 16: Left Rear Door

Courtesy of NISSAN MOTOR CO., U.S.A.

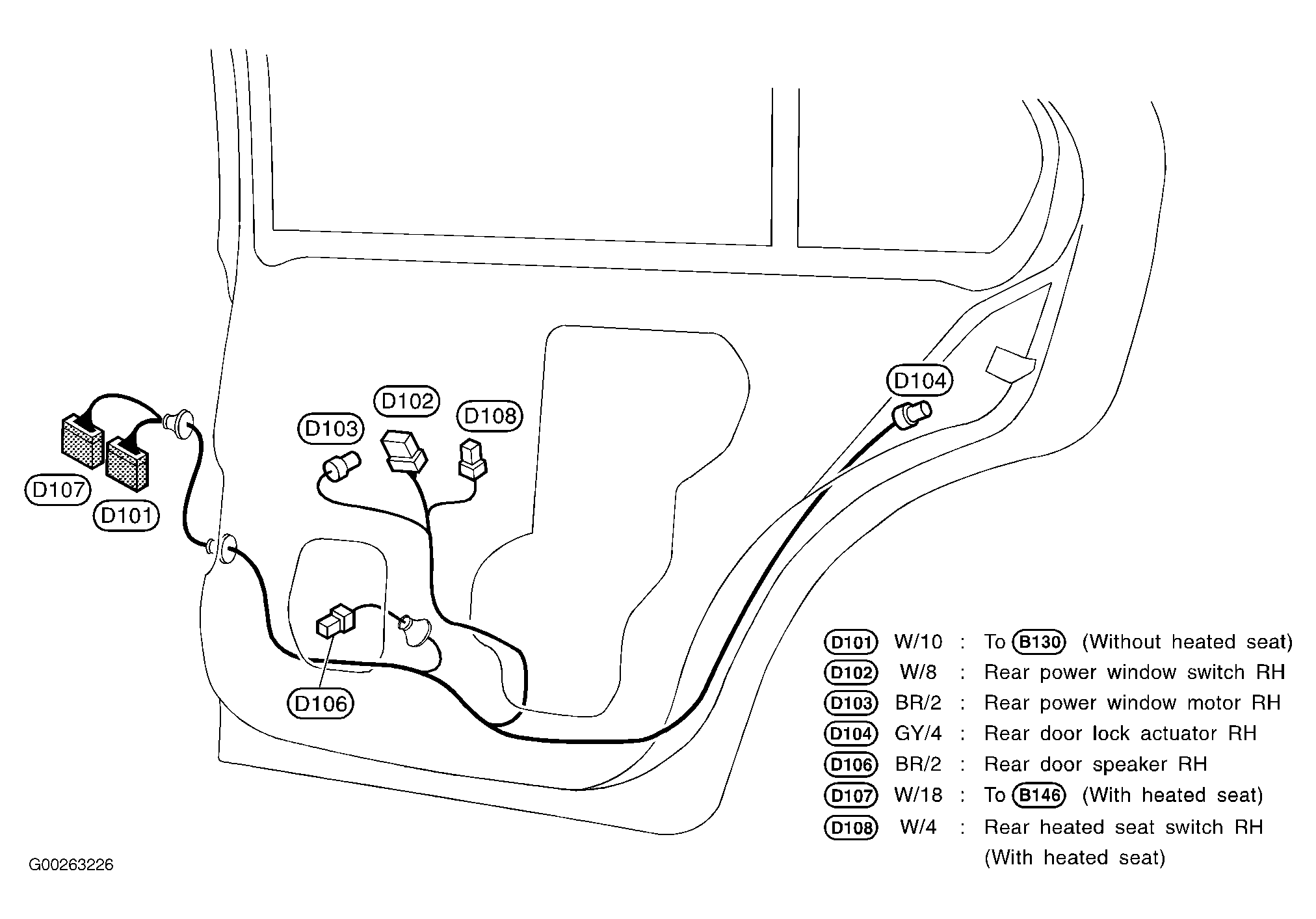

Fig 17: Right Rear Door

Courtesy of NISSAN MOTOR CO., U.S.A.
