ASCD Indicator Lamp: Wiring Diagram

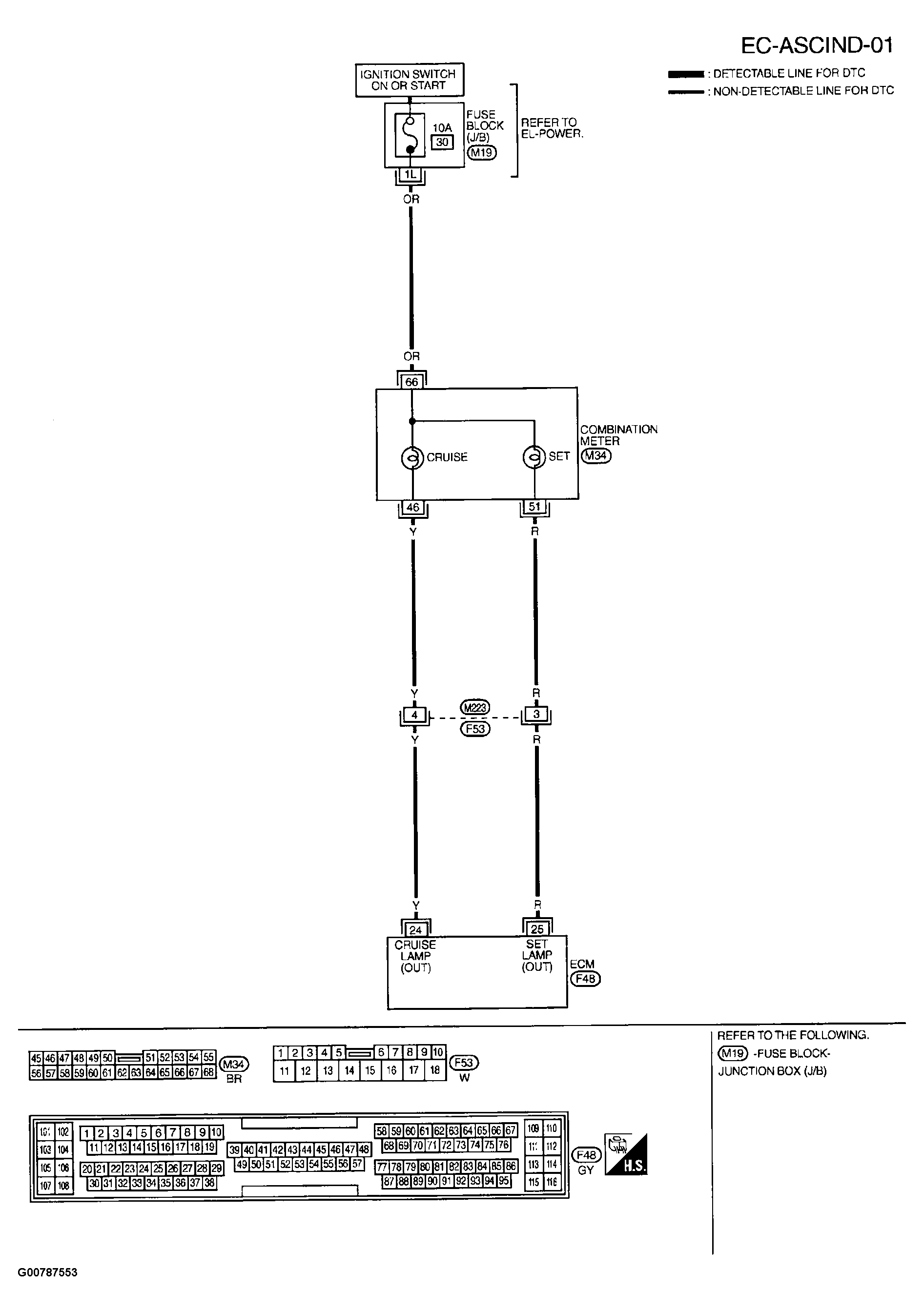

Fig 1: Displaying Wiring Diagram (EC-ASCIND-01)

G00787553

Courtesy of NISSAN MOTOR CO., U.S.A.
