Fuel Pressure Release

WITH CONSULT-II

1. Turn ignition switch ON.

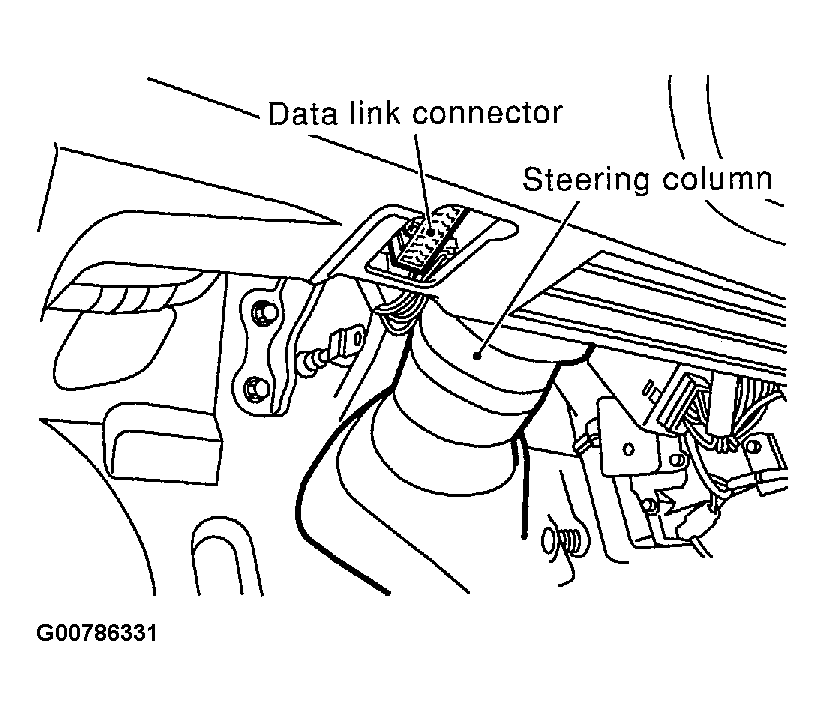

   Fig 1: Locating Data Link Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Perform FUEL PRESSURE RELEASE in WORK SUPPORT mode with CONSULT-II.
   Fig 2: Displaying CONSULT-II FUEL PRESSURE RELEASE Screen

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Start engine.
4. After engine stalls, crank it two or three times to release all fuel pressure.
5. Turn ignition switch OFF.

WITHOUT CONSULT-II

1. Remove fuel pump fuse located in fuse box.

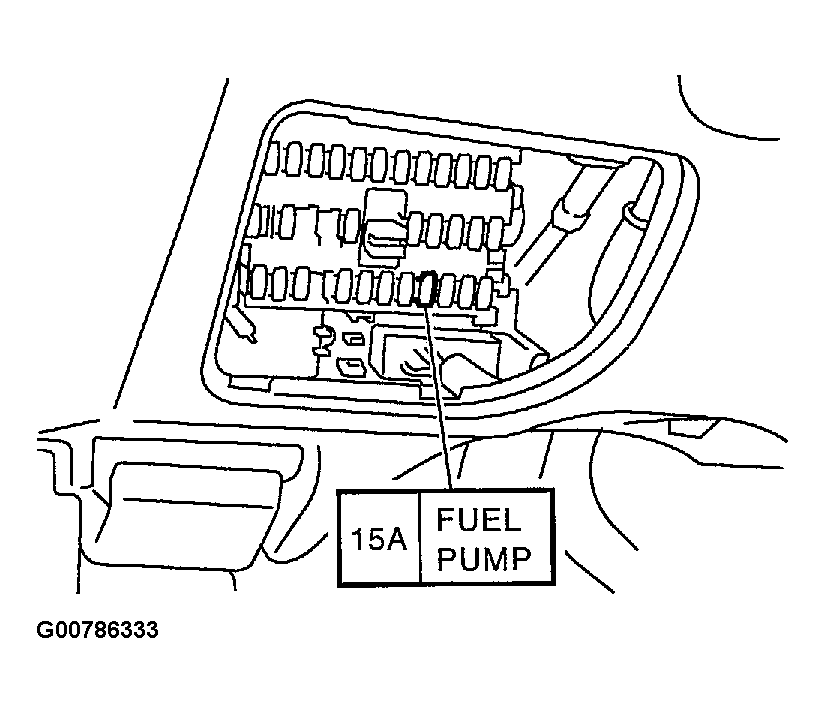

   Fig 3: Locating Fuel Pump Fuse

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Start engine.
3. After engine stalls, crank it two or three times to release all fuel pressure.
4. Turn ignition switch OFF.
5. Reinstall fuel pump fuse after servicing fuel system.
