Consult-II Reference Value In Data Monitor Mode

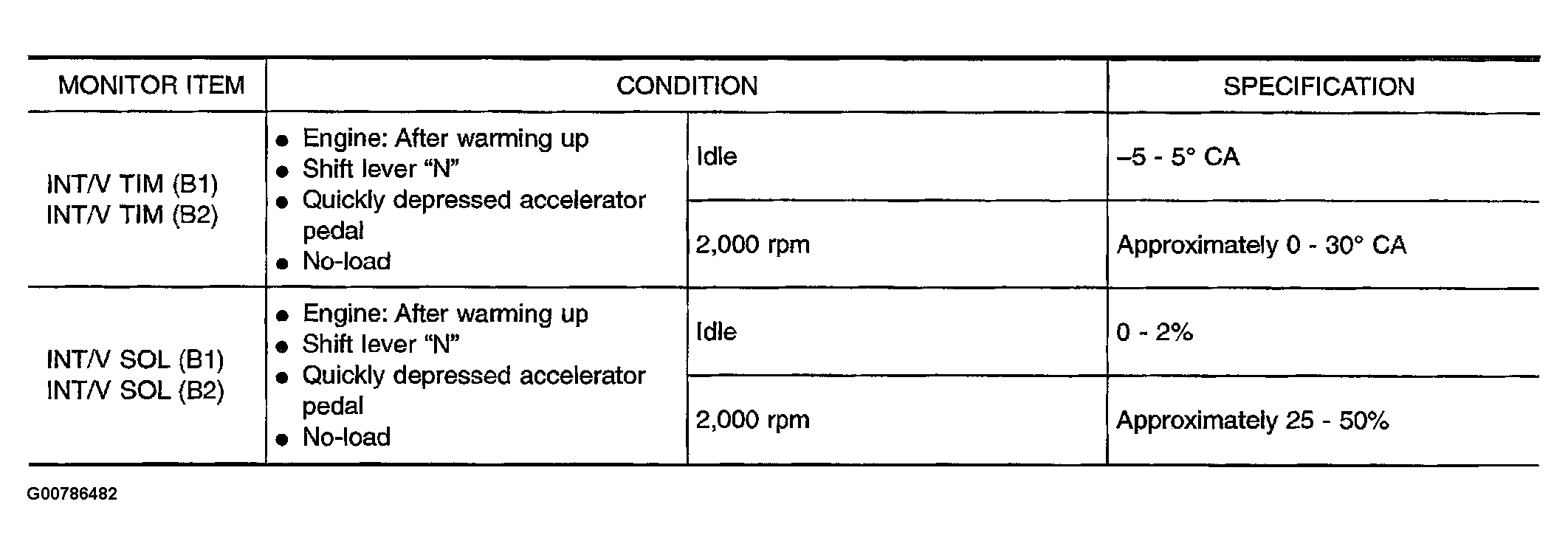

Fig 1: Identifying Monitor Item Specifications Based On Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
