Testing Condition:

Before performing the following procedure, confirm that battery voltage is between 10V and 16V at idle.

With CONSULT-II

1. Turn ignition switch ON .

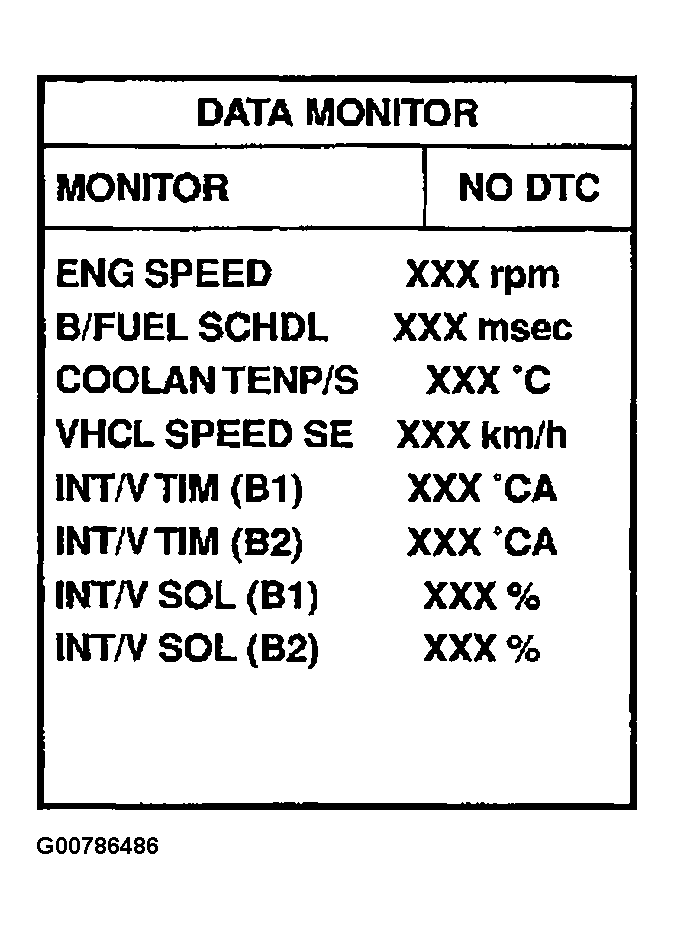

   Fig 1: Displaying CONSULT-II DATA MONITOR Screen

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Select DATA MONITOR mode with CONSULT-II.
3. Maintain the following conditions for at least 20 consecutive seconds.

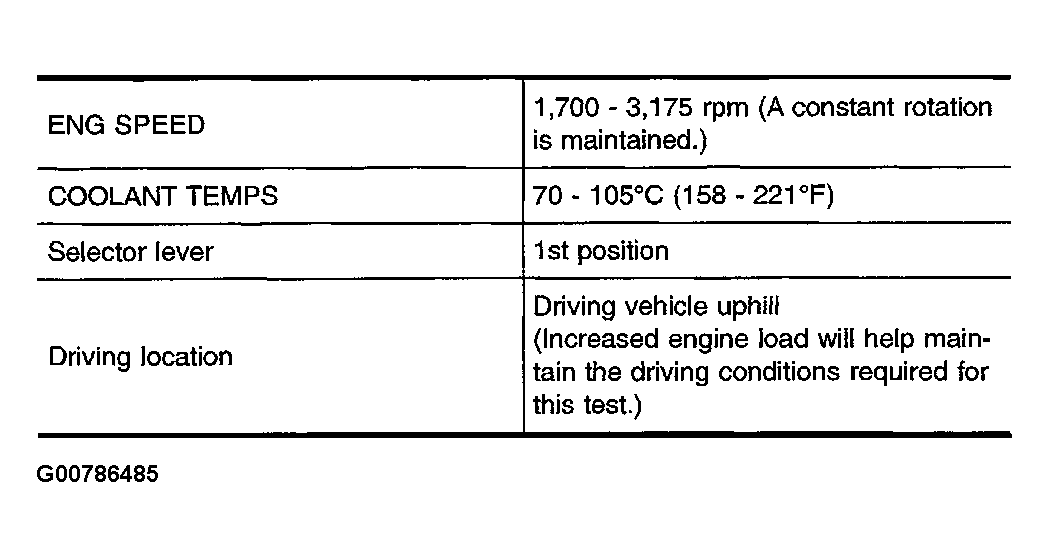

   Fig 2: Identifying Condition Specifications

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE  .
