Throttle Position Sensor

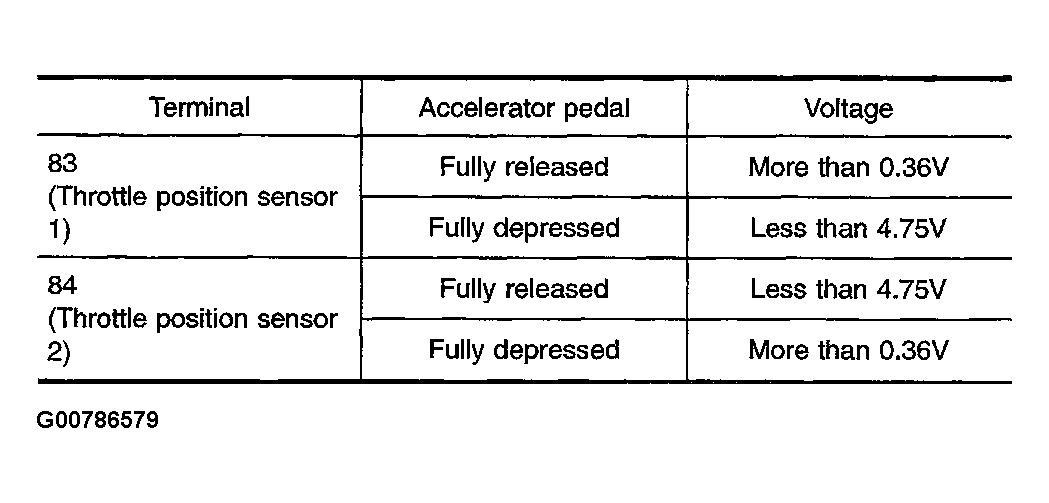

Fig 1: Displaying Terminal Voltage Table Of Throttle Position Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

Reconnect all harness connectors disconnected.
Perform THROTTLE VALVE CLOSED POSITION LEARNING .
Turn ignition switch ON.
Set selector lever to D position.
Check voltage between ECM terminals 83 (TP sensor 1), 84 (TP sensor 2) and engine ground under the following conditions.

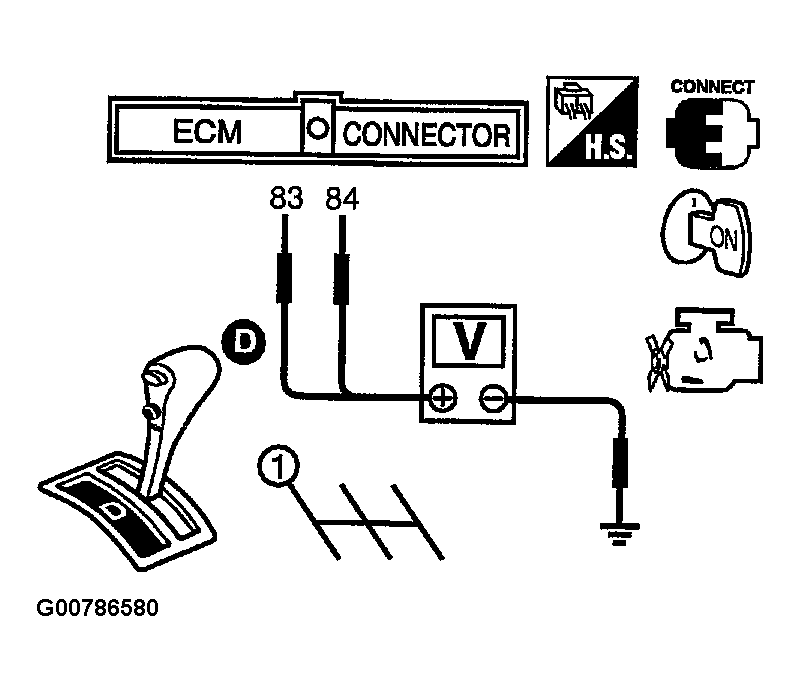

Fig 2: Checking Throttle Position Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace electric throttle control actuator and go to the next step.
Perform THROTTLE VALVE CLOSED POSITION LEARNING .
Perform IDLE AIR VOLUME LEARNING .
