Testing Condition:

This test may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test is expected to be easier, it is unnecessary to lift the vehicle.

WITH CONSULT-II

1. Wait until engine coolant temperature is less than 90° C (194° F).
   1. Turn ignition switch ON.
   2. Select DATA MONITOR mode with CONSULT-II.

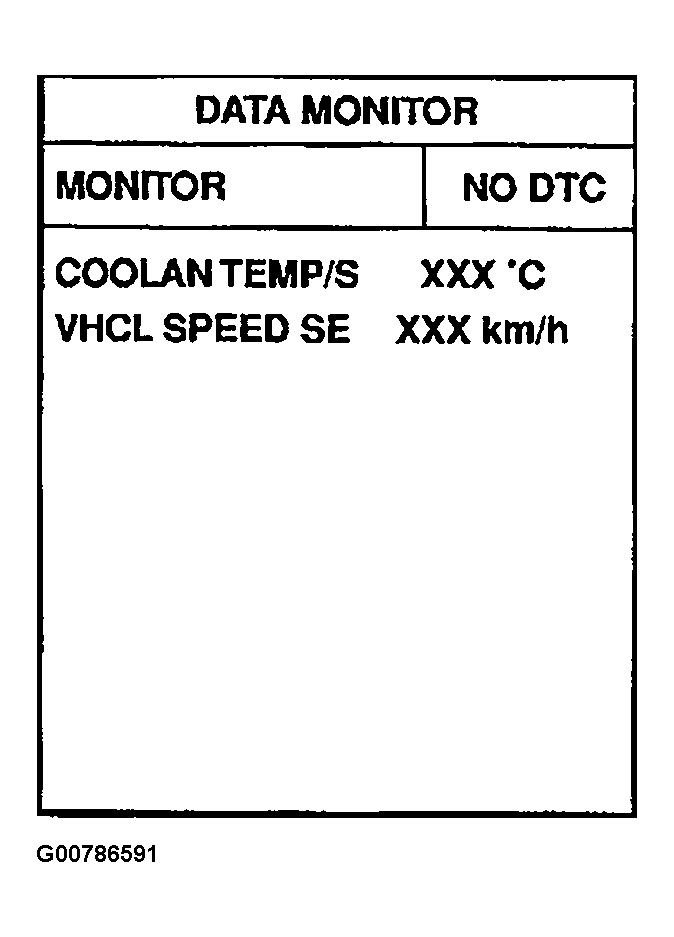

   Fig 1: Displaying CONSULT-II DATA MONITOR Screen
   Courtesy of NISSAN MOTOR CO., U.S.A.
   3. Check the engine coolant temperature.
   4. If the engine coolant temperature is not less than 90° C (194° F), turn ignition switch OFF and cool down engine.
      • Perform the following steps before engine coolant temperature is above 90° C (194° F).
2. Turn ignition switch ON.
3. Select DATA MONITOR mode with CONSULT-II.
4. Start engine.
5. Hold vehicle speed at more than 70 km/h (43 MPH) for 100 consecutive seconds.
6. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE  .

WITH GST

Follow the procedure WITH CONSULT-II Above.
