Consult-II Reference Value In Data Monitor
Specification data are reference values.

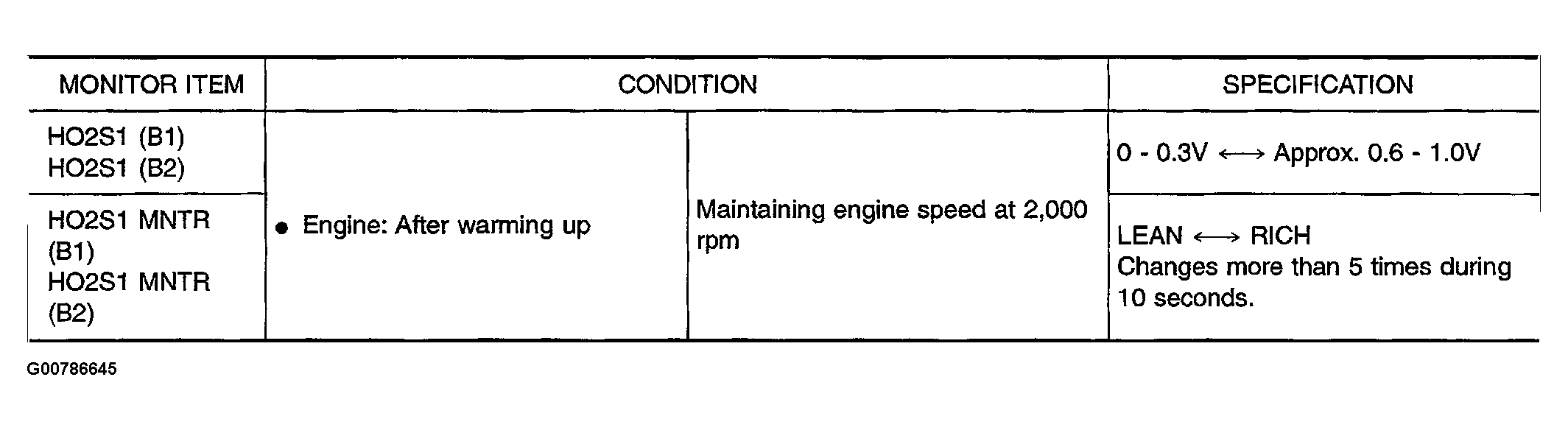

Fig 1: Displaying HO2S1 Reference Values
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
