Overall Function Check

Use this procedure to check the overall function of the heated oxygen sensor 1 circuit. During this check, a DTC might not be confirmed.

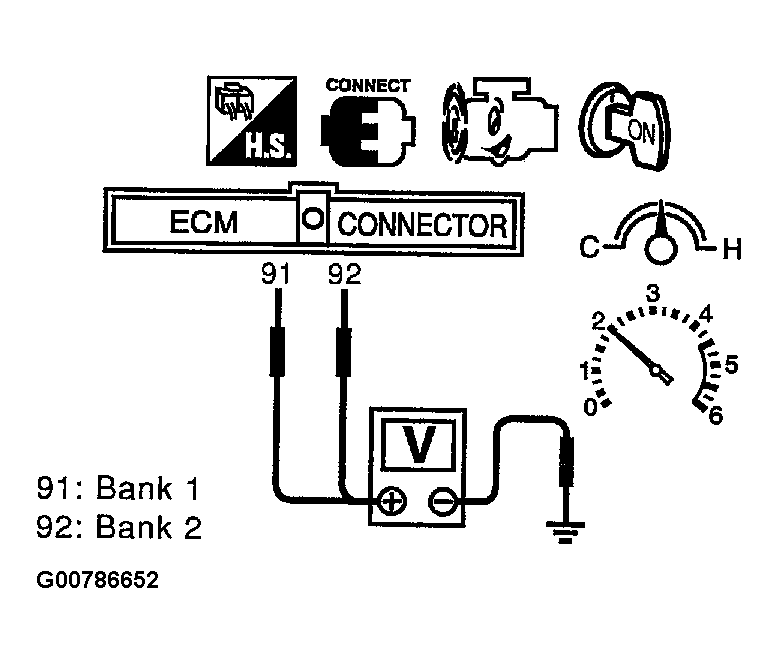

Fig 1: Checking Overall Function Of Heated Oxygen Sensor 1

Courtesy of NISSAN MOTOR CO., U.S.A.

WITH GST

1. Start engine and warm it up to normal operating temperature.
2. Set voltmeter probes between ECM terminal 91 (HO2S1 bank 1 signal) or 92 (HO2S1 bank 2 signal) and engine ground.
3. Check the following with engine speed held at 2,000 rpm constant under no load.
   • The voltage does not remain in the range of 0.2 - 0.4V.
4. If NG, go to DIAGNOSTIC PROCEDURE  .
