DTC P0340 & DTCP0345: CMP Sensor (Phase)
>>
Wiring Diagram
>>
Bank 1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Bank 1

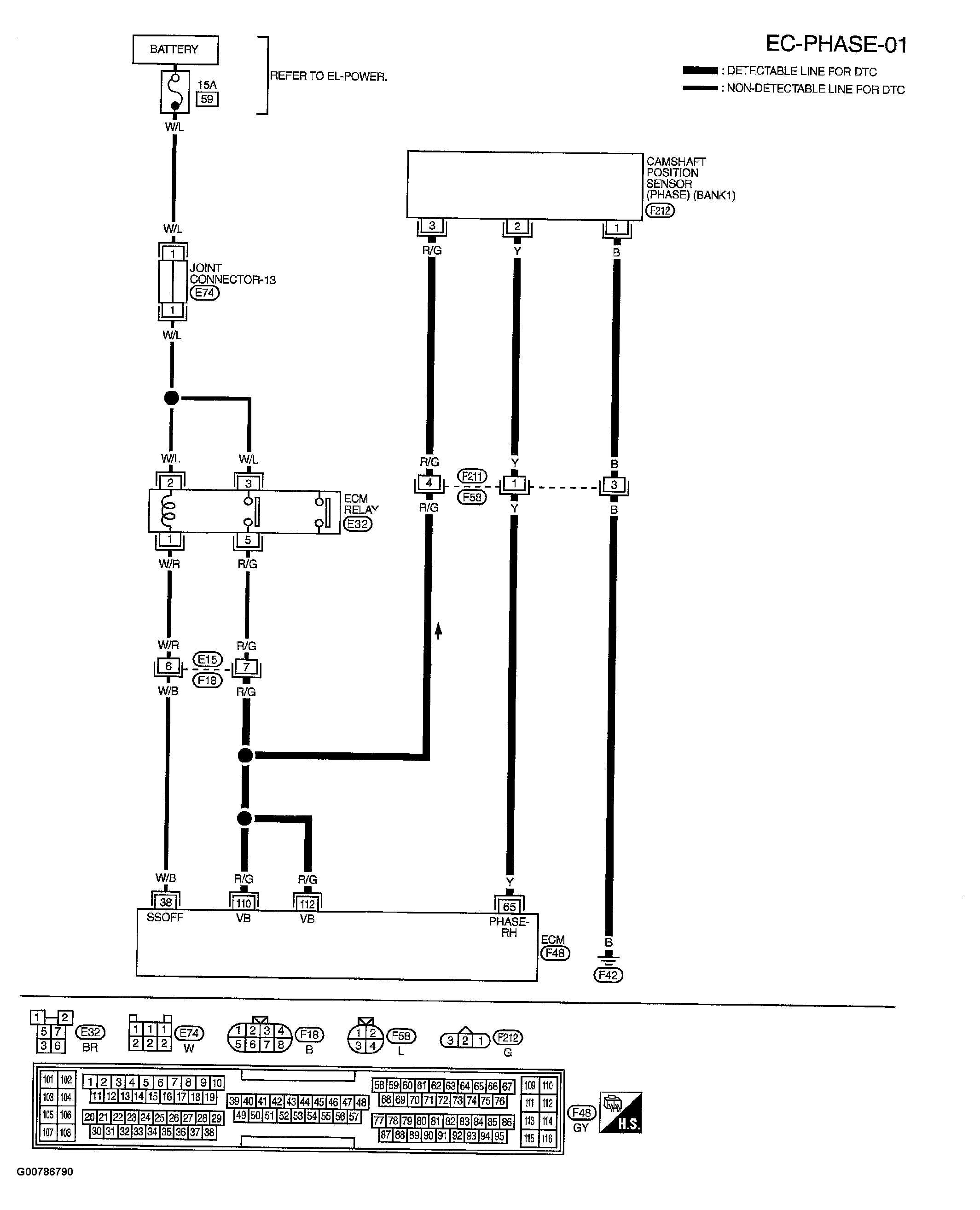

Fig 1: Displaying Wiring Diagram (EC-PHASE-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
