On Board Diagnosis Logic

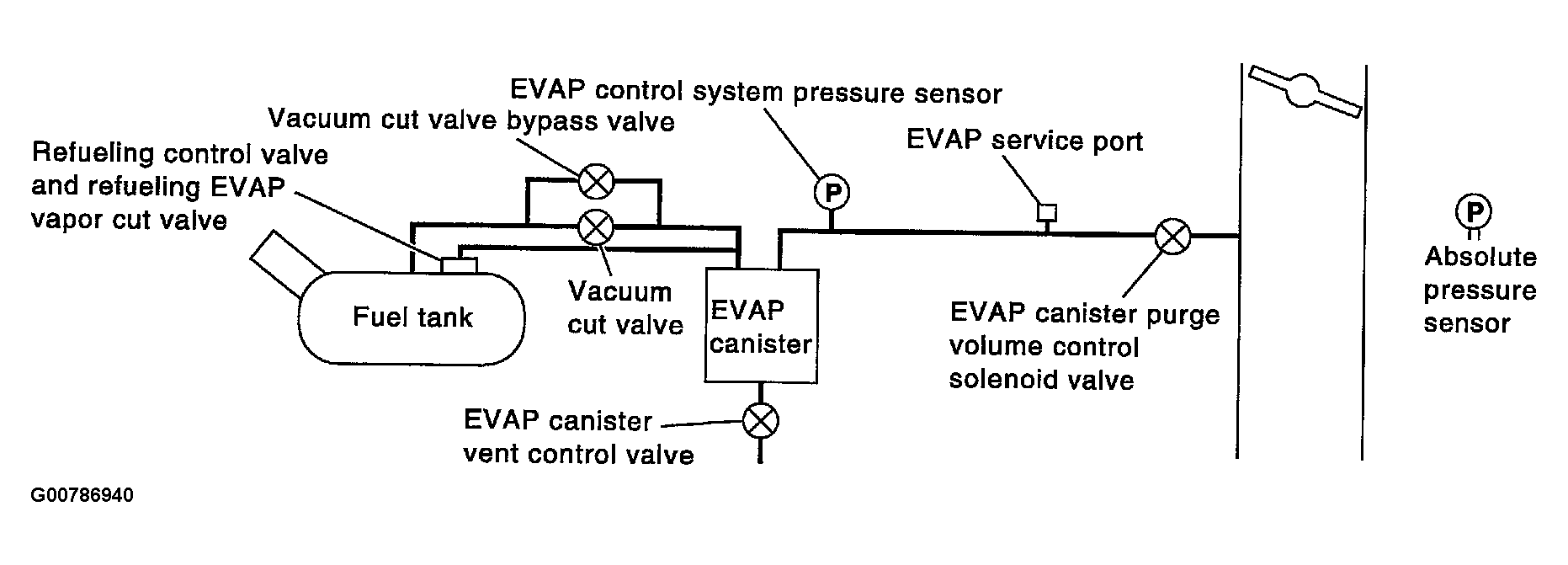

Fig 1: Identifying EVAP Control System

Courtesy of NISSAN MOTOR CO., U.S.A.

This diagnosis detects very small leaks in the EVAP line between fuel tank and EVAP canister purge volume control solenoid valve, using the intake manifold same as a conventional EVAP small leak diagnosis.

If ECM judges a leak which corresponds to a very small leak, the very small leak P0456 will be detected.

If ECM judges a leak equivalent to a small leak, EVAP small leak P0442 will be detected.

If ECM judges there are no leaks, the diagnosis will be OK.

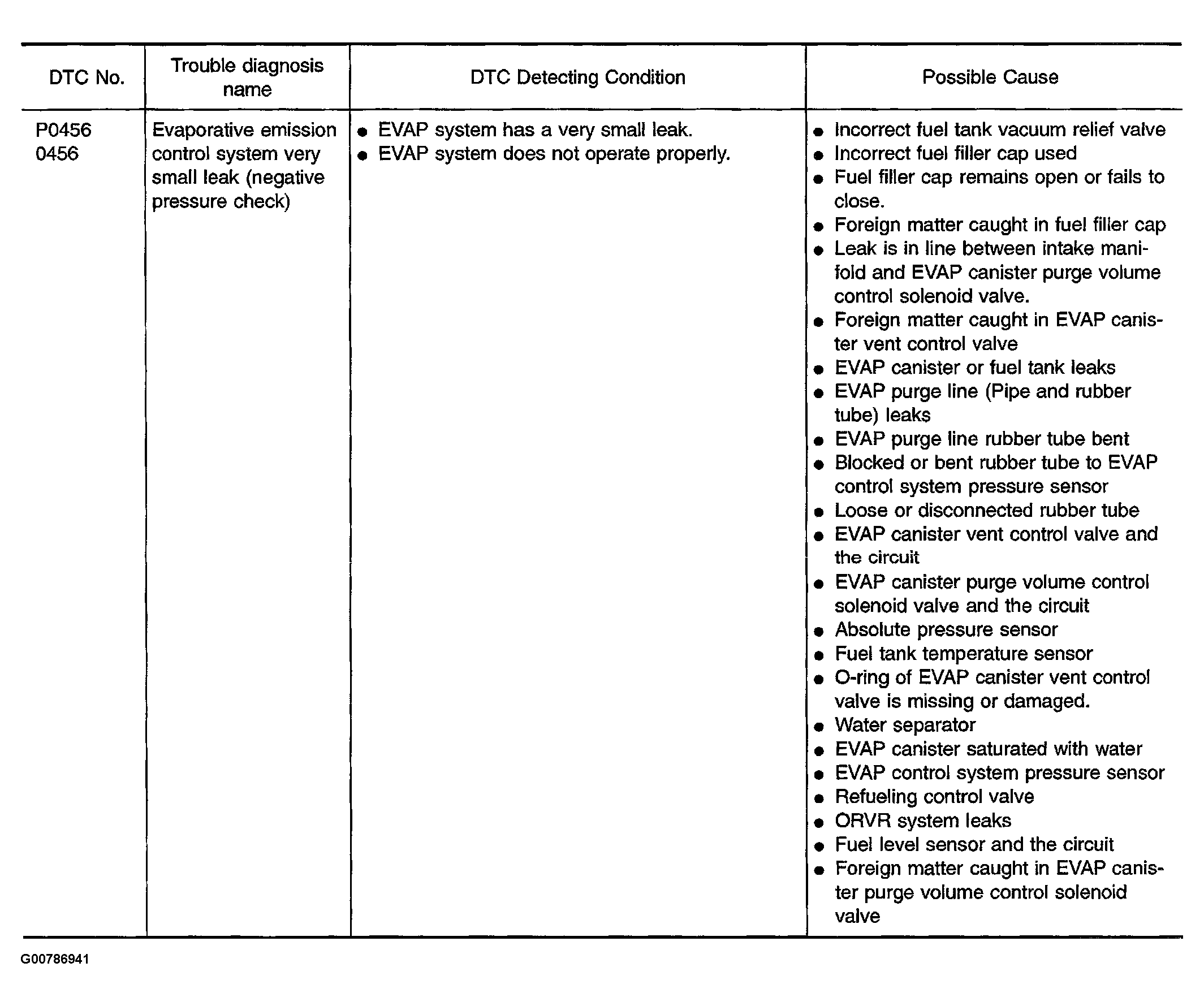

Fig 2: DTC Detecting Condition And Possible Causes
