On Board Diagnostic Logic

When the vehicle is parked, naturally the fuel level in the fuel tank is stable. It means that output signal of the fuel level sensor does not change. If ECM senses sloshing signal from the sensor, fuel level sensor malfunction is detected.

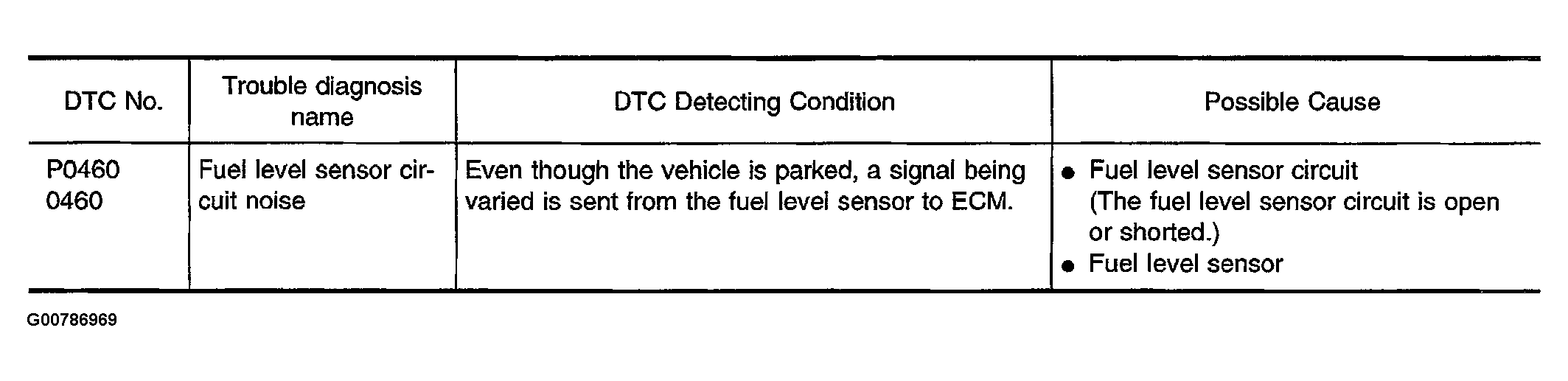

Fig 1: Displaying On Board Diagnostic Logic

Courtesy of NISSAN MOTOR CO., U.S.A.
