DTC Confirmation Procedure

CAUTION: Always drive vehicle at a safe speed.

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

TESTING CONDITION:

Steps 1 and 2 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test is expected to be easier, it is unnecessary to lift the vehicle.

WITH CONSULT-II

Start engine.
Read VHCL SPEED SE in DATA MONITOR mode with CONSULT-II. The vehicle speed on CONSULT-II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.
If NG, go to DIAGNOSTIC PROCEDURE .

If OK, go to following step.
Select DATA MONITOR mode with CONSULT-II.

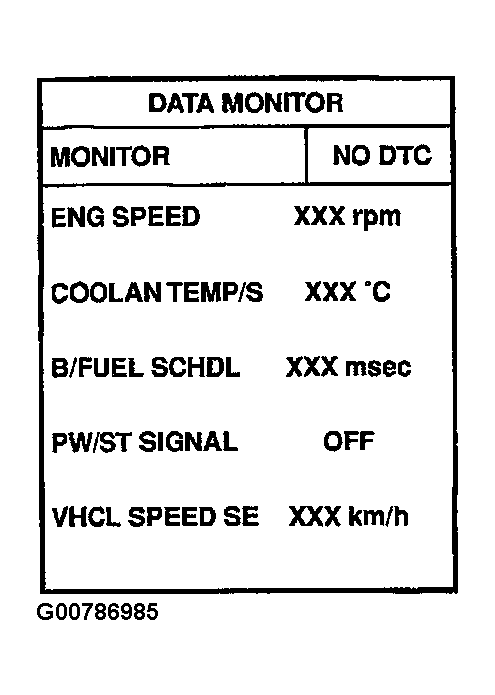

Fig 1: Displaying CONSULT-II DATA MONITOR Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Warm engine up to normal operating temperature.
Maintain the following conditions for at least 10 consecutive seconds.

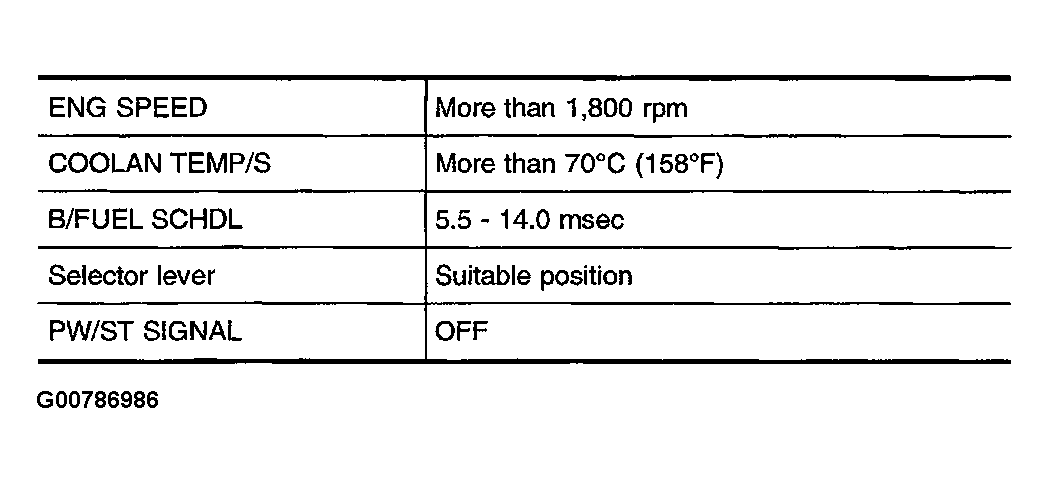

Fig 2: Displaying Conditions Of DATA MONITOR Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .
