Throttle Control Motor

  1. Disconnect electric throttle control actuator harness connector. See Figure .
  2. Check resistance between terminals 3 and 6.

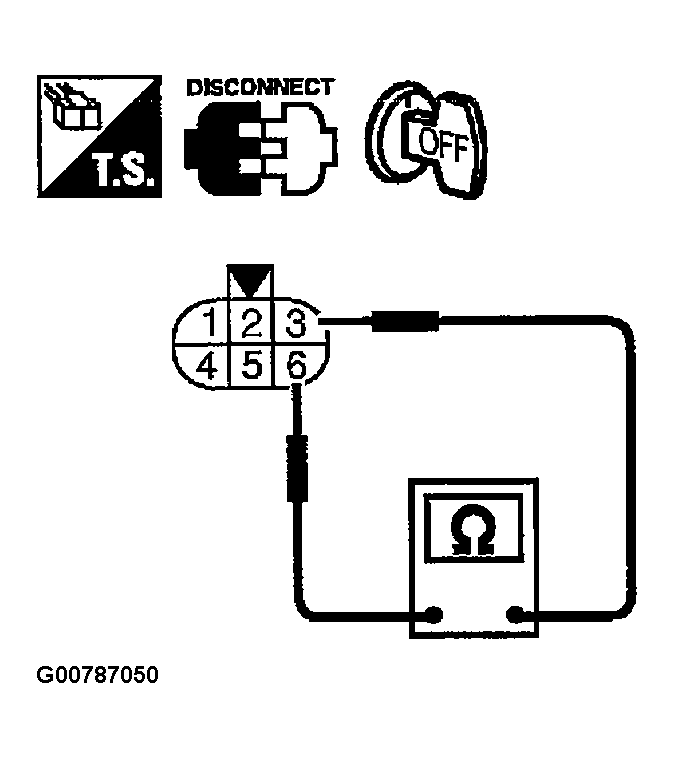

    Fig 1: Checking Resistance Between Electric Throttle Control Actuator Harness Connector Terminals 3 And 6
    G00787050Courtesy of NISSAN MOTOR CO., U.S.A.

    Resistance: Approximately 1 - 15ohm [at 25° C (77° F)]

  3. If NG, replace electric throttle control actuator and go to next step.
  4. Perform THROTTLE VALVE CLOSED POSITION LEARNING  .
  5. Perform IDLE AIR VOLUME LEARNING  .
