Consult-II Reference Value In Data Monitor Mode

Specification data are reference values.

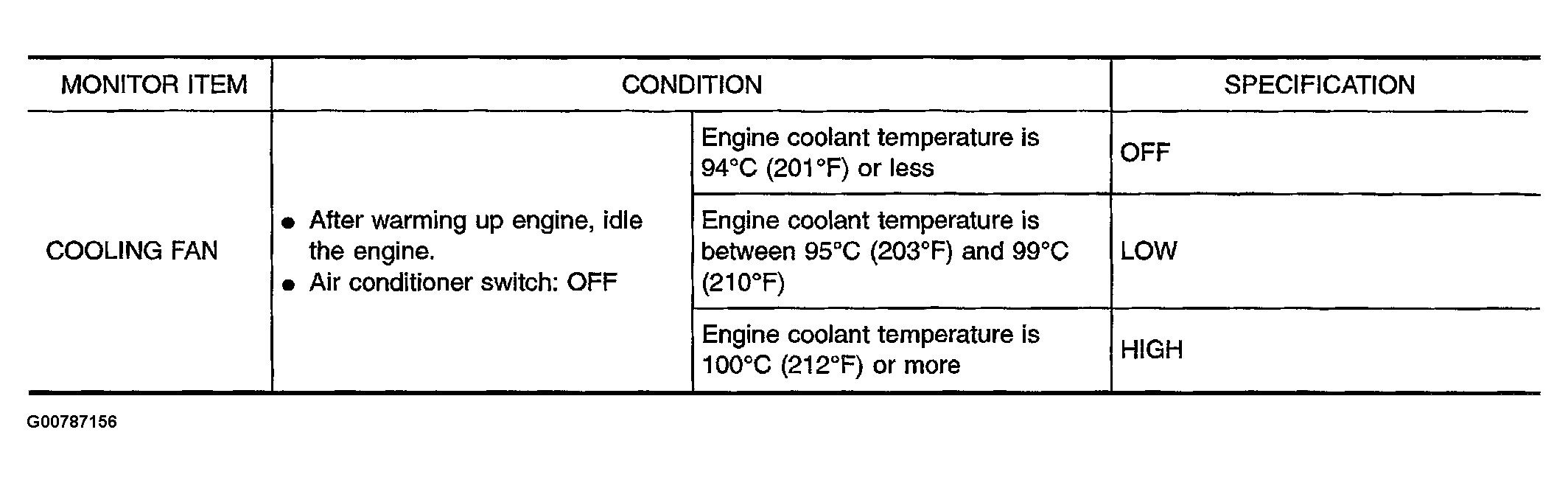

Fig 1: Identifying Monitor Item Specifications Based On Conditions (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

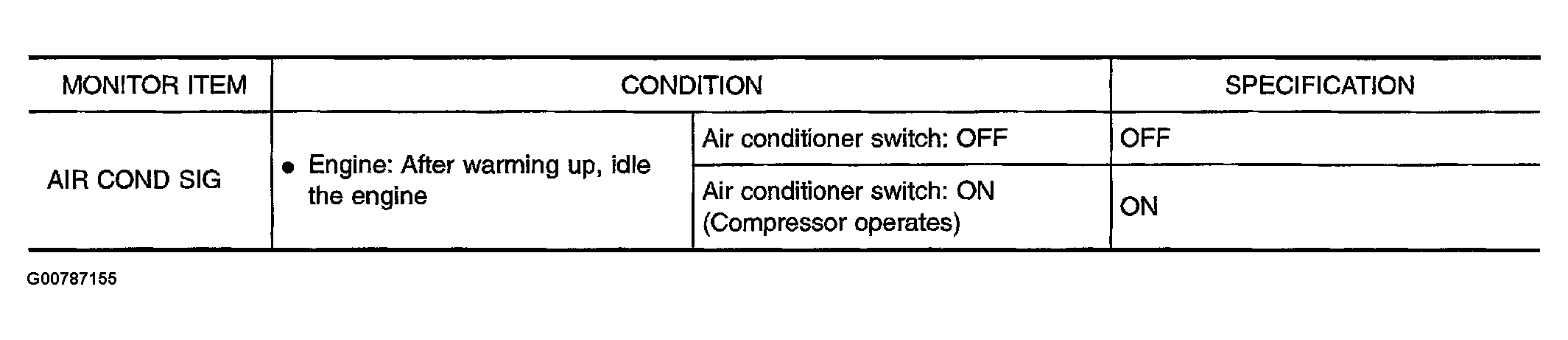

Fig 2: Identifying Monitor Item Specifications Based On Conditions (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
