DTC P1217: Engine Over Temperature
>>
System Description
>>
Operation
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Description: Operation

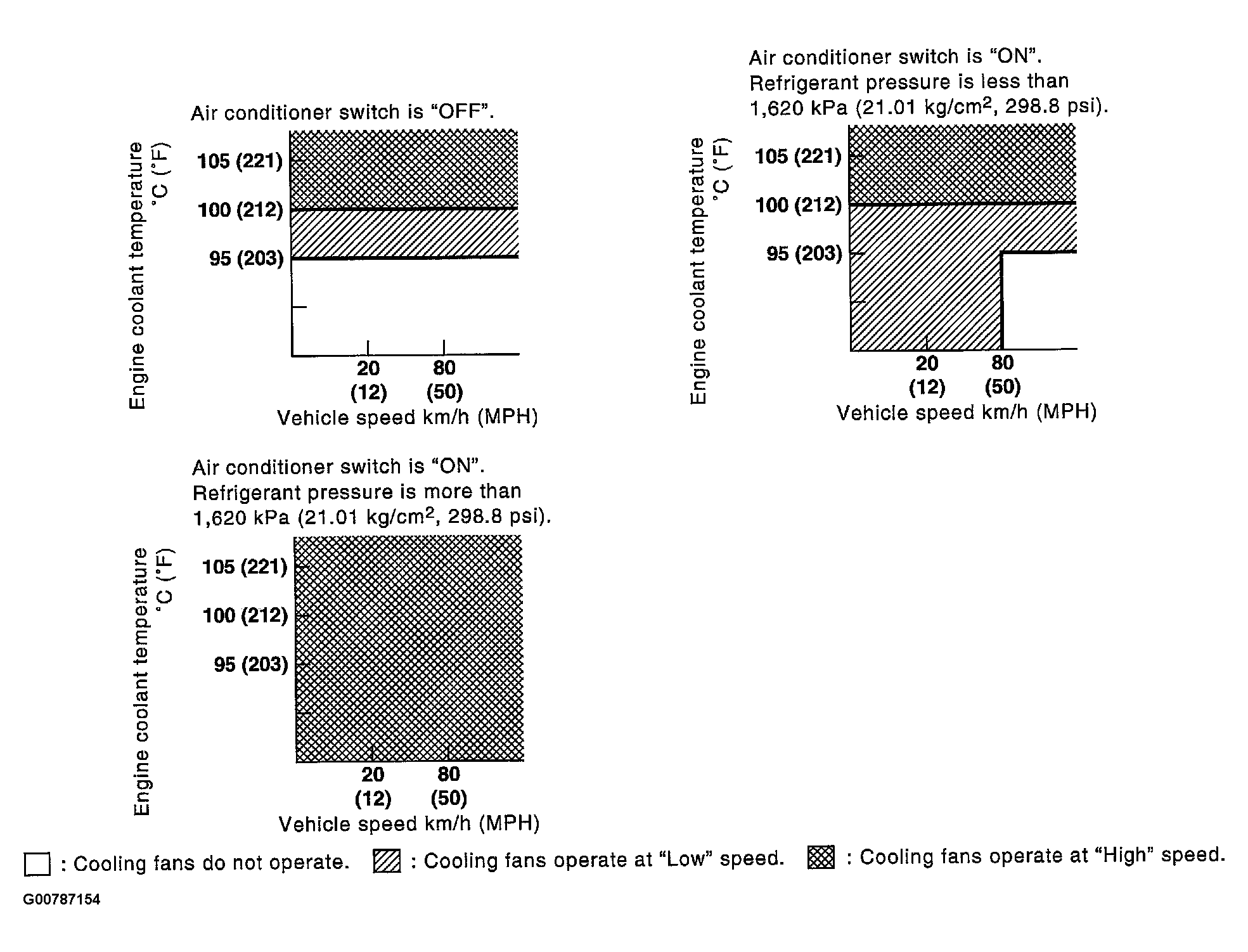

Fig 1: Displaying Cooling Fan Control Operation
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
