Diagnostic Procedure

1. Turn ignition switch OFF.
2. Remove the intake air duct.

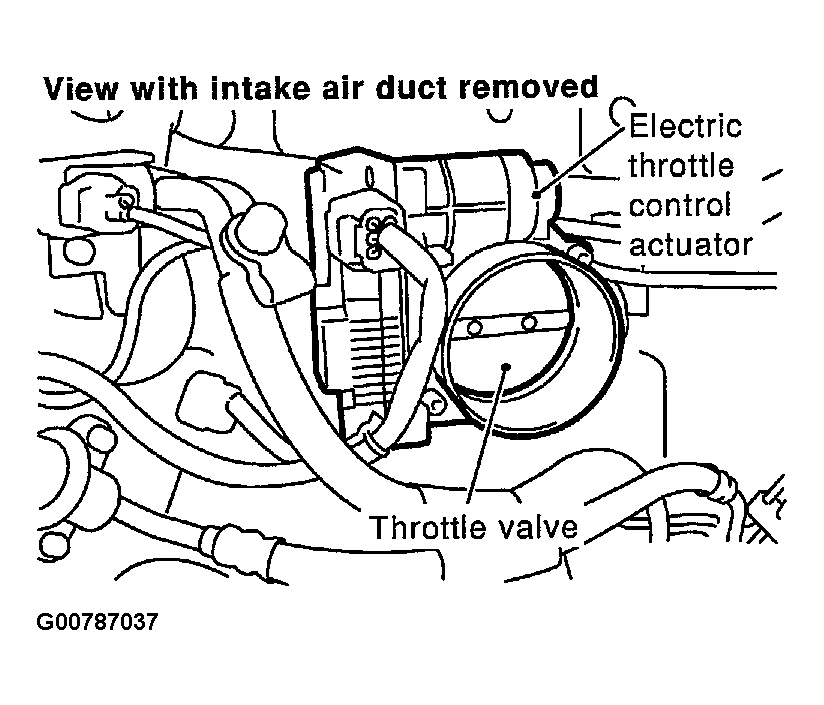

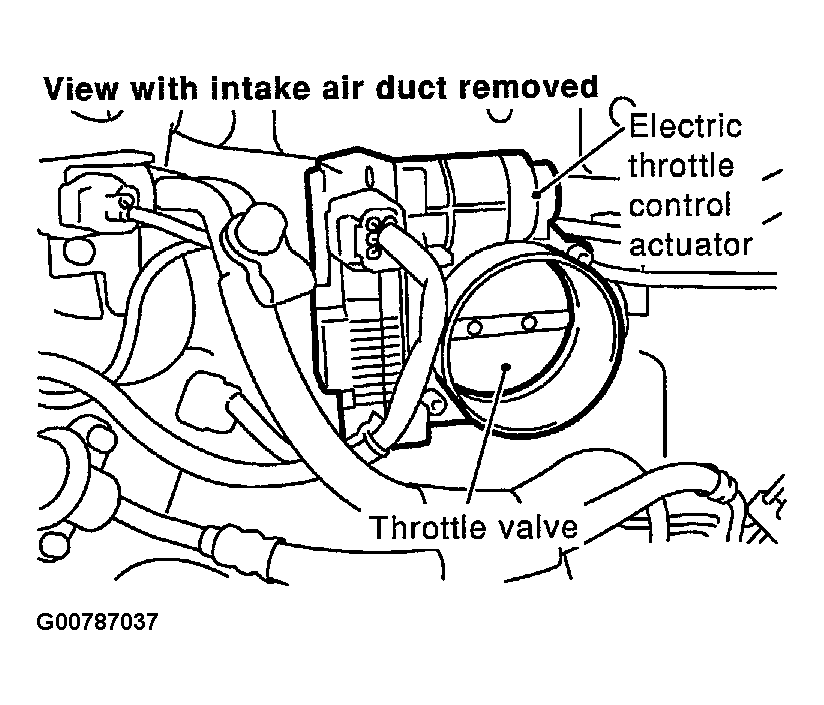

3. Check if foreign matter is caught between the throttle valve and the housing. See Figure .

OK or NG

1. OK: GO TO 2.
2. NG: Remove the foreign matter and clean the electric throttle control actuator inside.

1. Replace the electric throttle control actuator.
2. Perform THROTTLE VALVE CLOSED POSITION LEARNING  .
3. Perform IDLE AIR VOLUME LEARNING  .

1. : INSPECTION END
