DTC Confirmation Procedure

CAUTION: Always drive vehicle at a safe speed.

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

WITH CONSULT-II

Turn ignition switch ON.
Select DATA MONITOR mode with CONSULT-II.

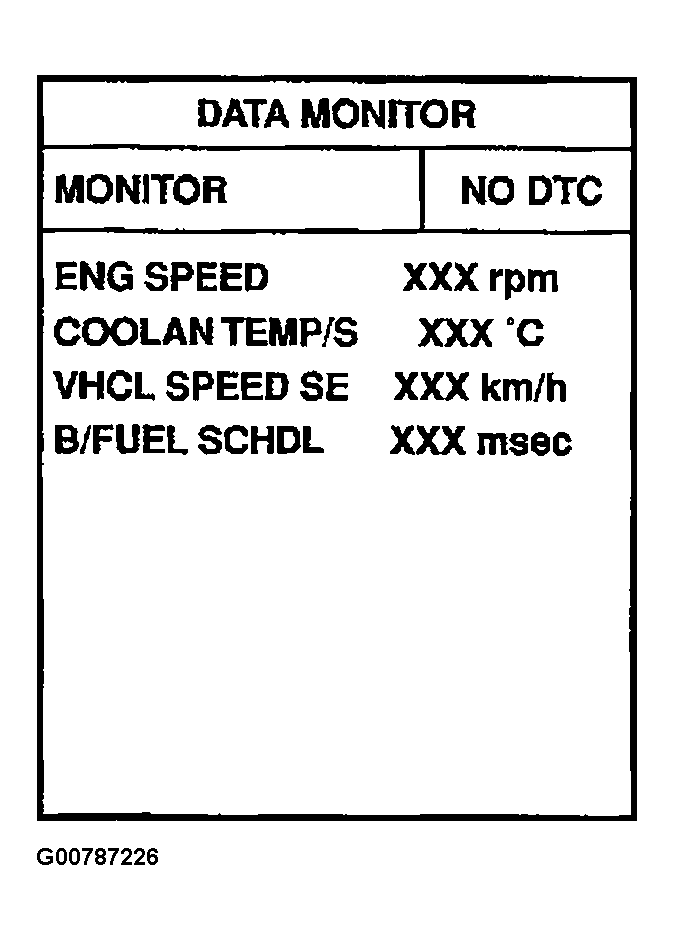

Fig 1: Displaying CONSULT-II DATA MONITOR Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine.
Drive vehicle at a speed of approximately 80 km/h (50 MPH) for a maximum of 15 minutes.
NOTE: If a malfunction exists, NG result may be displayed quicker.
If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .

WITH GST

Follow the procedure WITH CONSULT-II.
