Component Description

ASCD steering switch has variant values of electrical resistance to each button. ECM reads voltage variation of switch, and determines which button is operated.

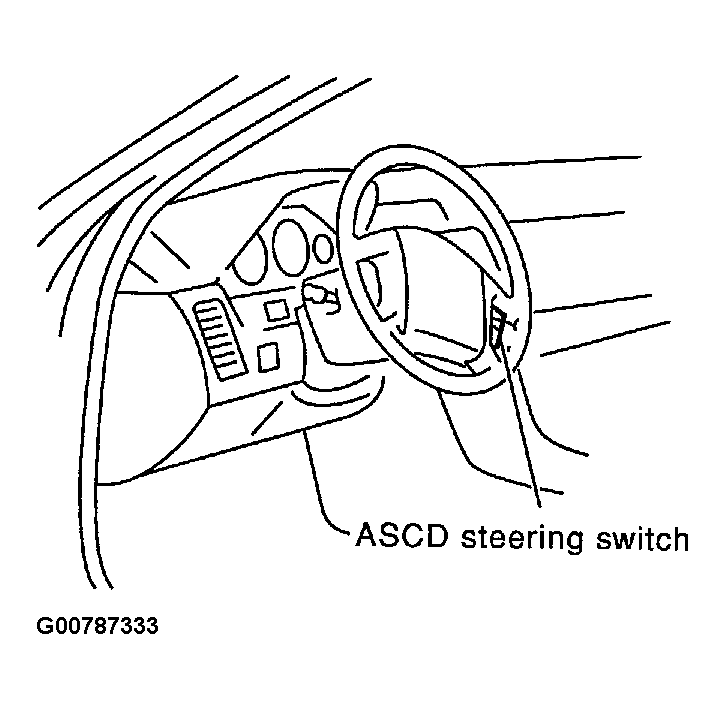

Fig 1: Locating ASCD Steering Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to AUTOMATIC SPEED CONTROL DEVICE (ASCD) SYSTEM  for the ASCD function.
