DTC Confirmation Procedure

CAUTION: Always drive vehicle at a safe speed.

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

WITH CONSULT-II

Turn ignition switch ON
Select P/N POSI SW in DATA MONITOR mode with CONSULT-II. Then check the P/N POSI SW signal under the following conditions.

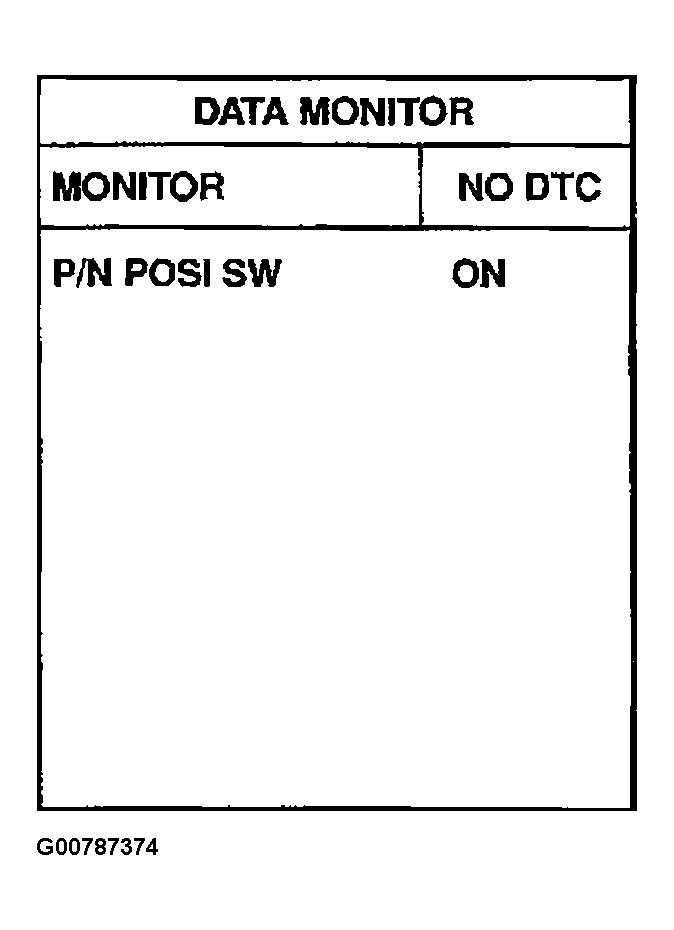

Fig 1: Displaying CONSULT-II DATA MONITOR Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

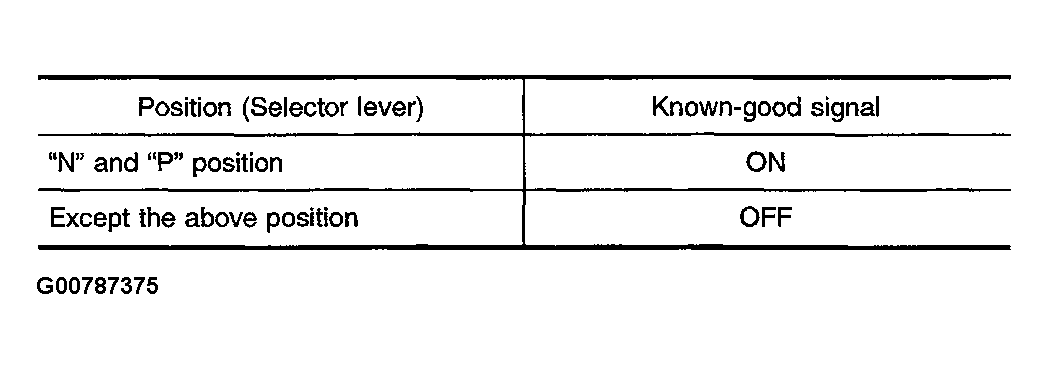

Fig 2: Displaying CONSULT-II Position Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, go to DIAGNOSTIC PROCEDURE .

If OK, go to following step.
Select DATA MONITOR mode with CONSULT-II.

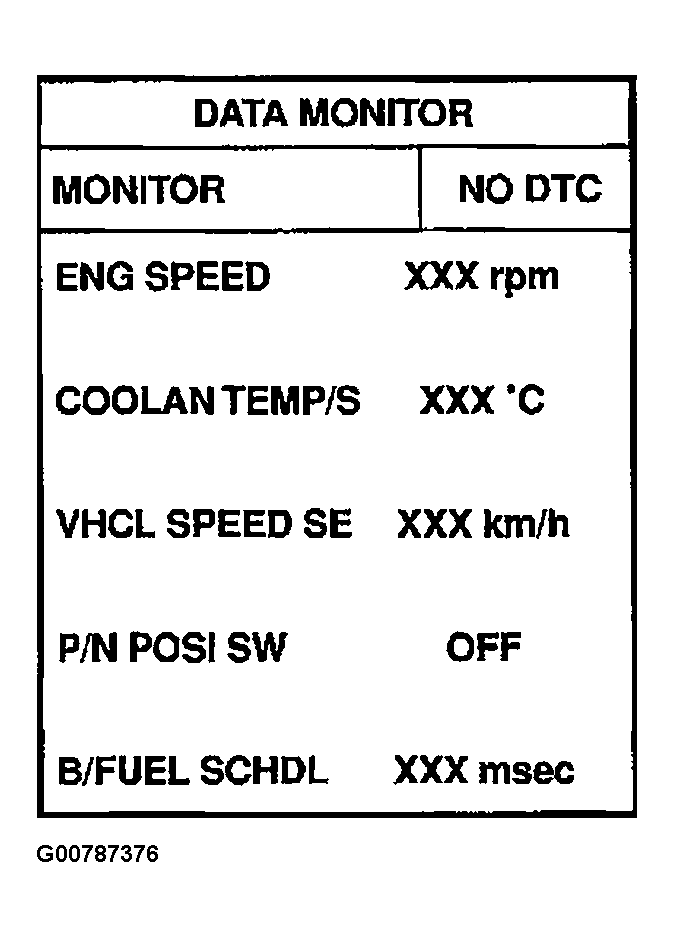

Fig 3: Displaying CONSULT-II DATA MONITOR Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and warm it up to normal operating temperature.
Maintain the following conditions for at least 60 consecutive seconds.

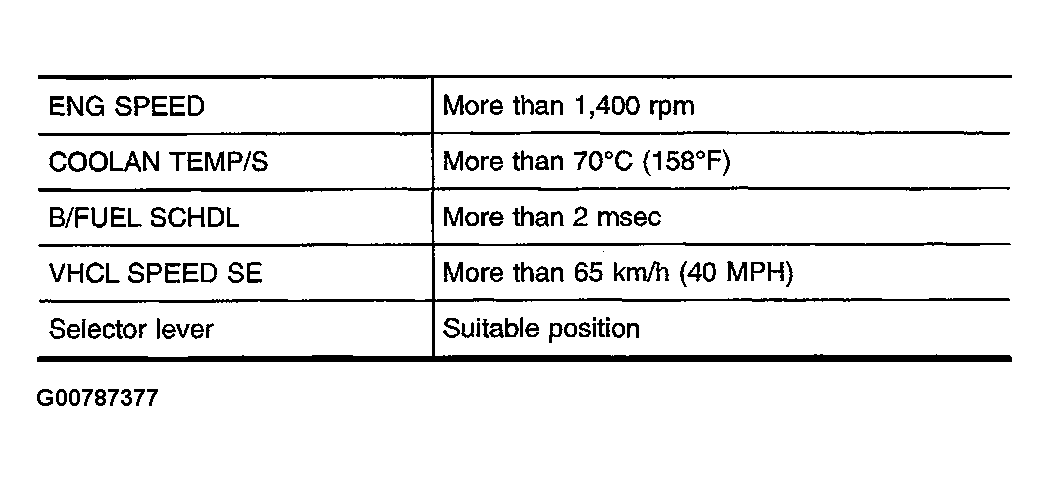

Fig 4: Displaying Conditions Needed To Be Maintained
Courtesy of NISSAN MOTOR CO., U.S.A.
If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .
