Component Inspection

STOP LAMP SWITCH

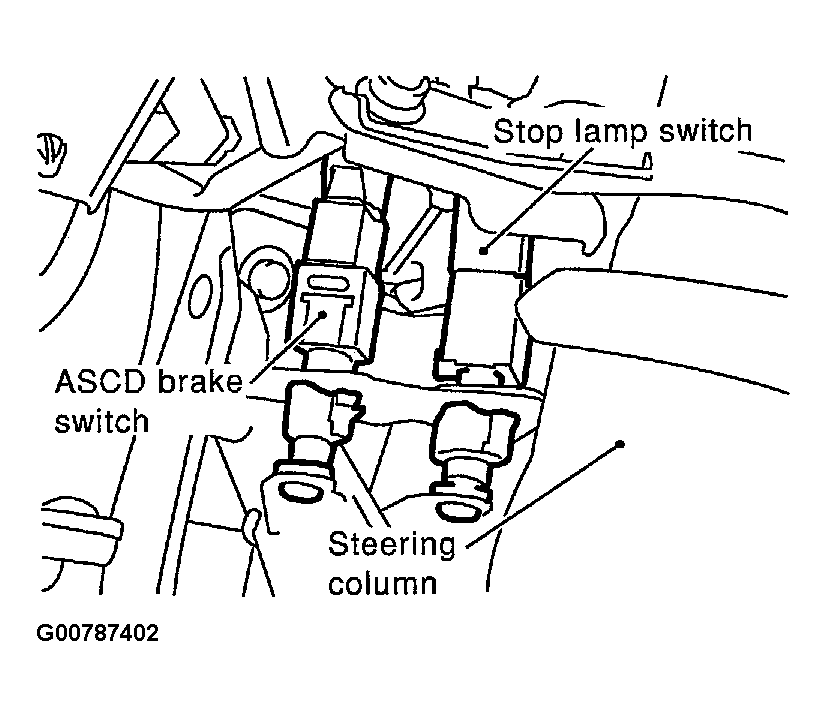

1. Disconnect stop lamp switch harness connector. See Figure .

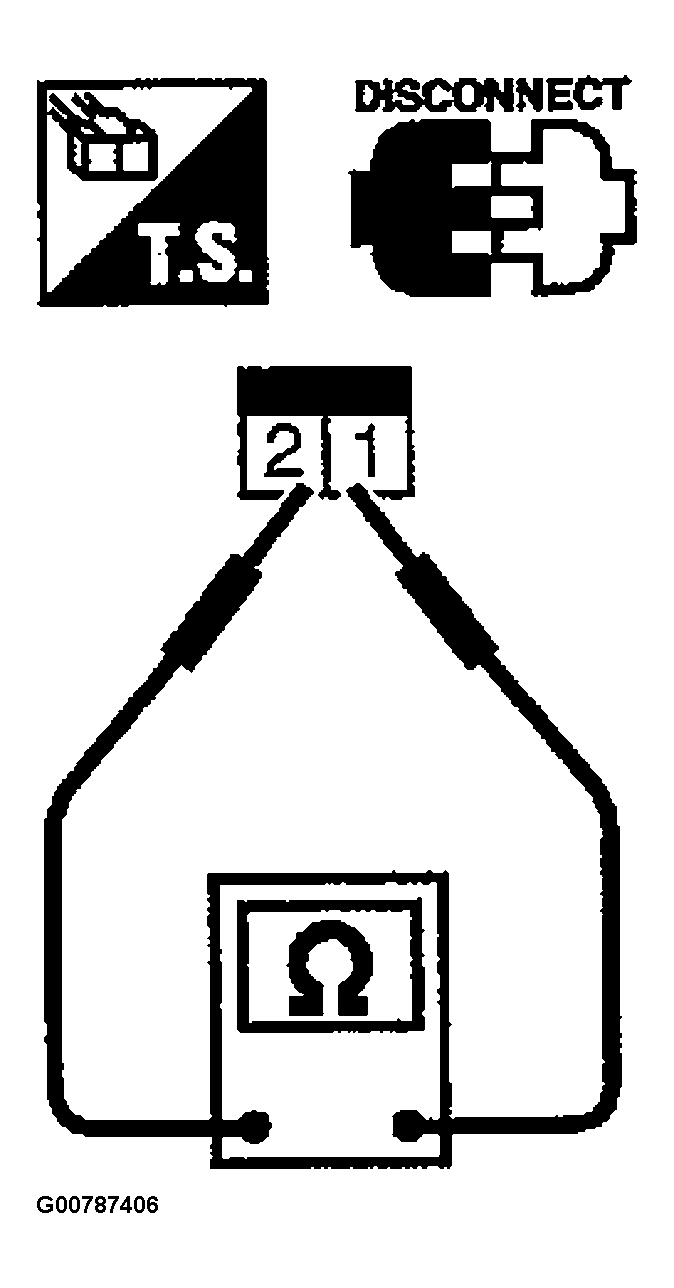

   Fig 1: Terminals Continuity Inspection Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.

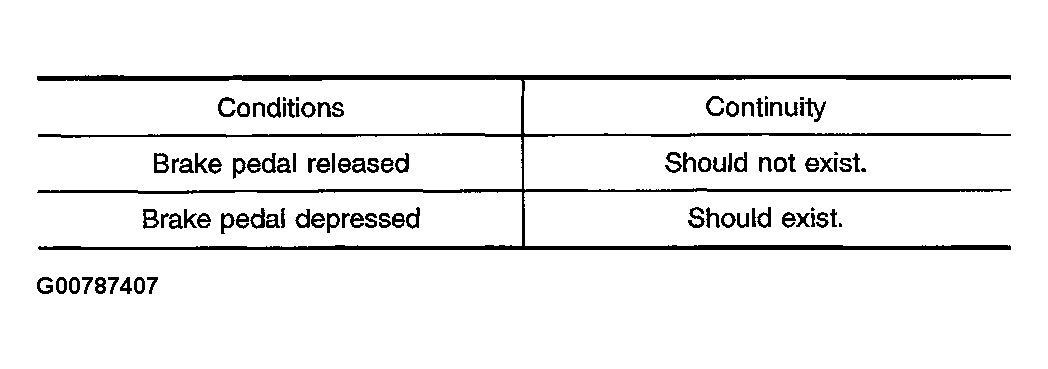

   Fig 2: Checking Continuity Between Stop Lamp Switch Terminals Based On Conditions

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. If NG, replace stop lamp switch.
