Data Link Connectors: Wiring Diagram

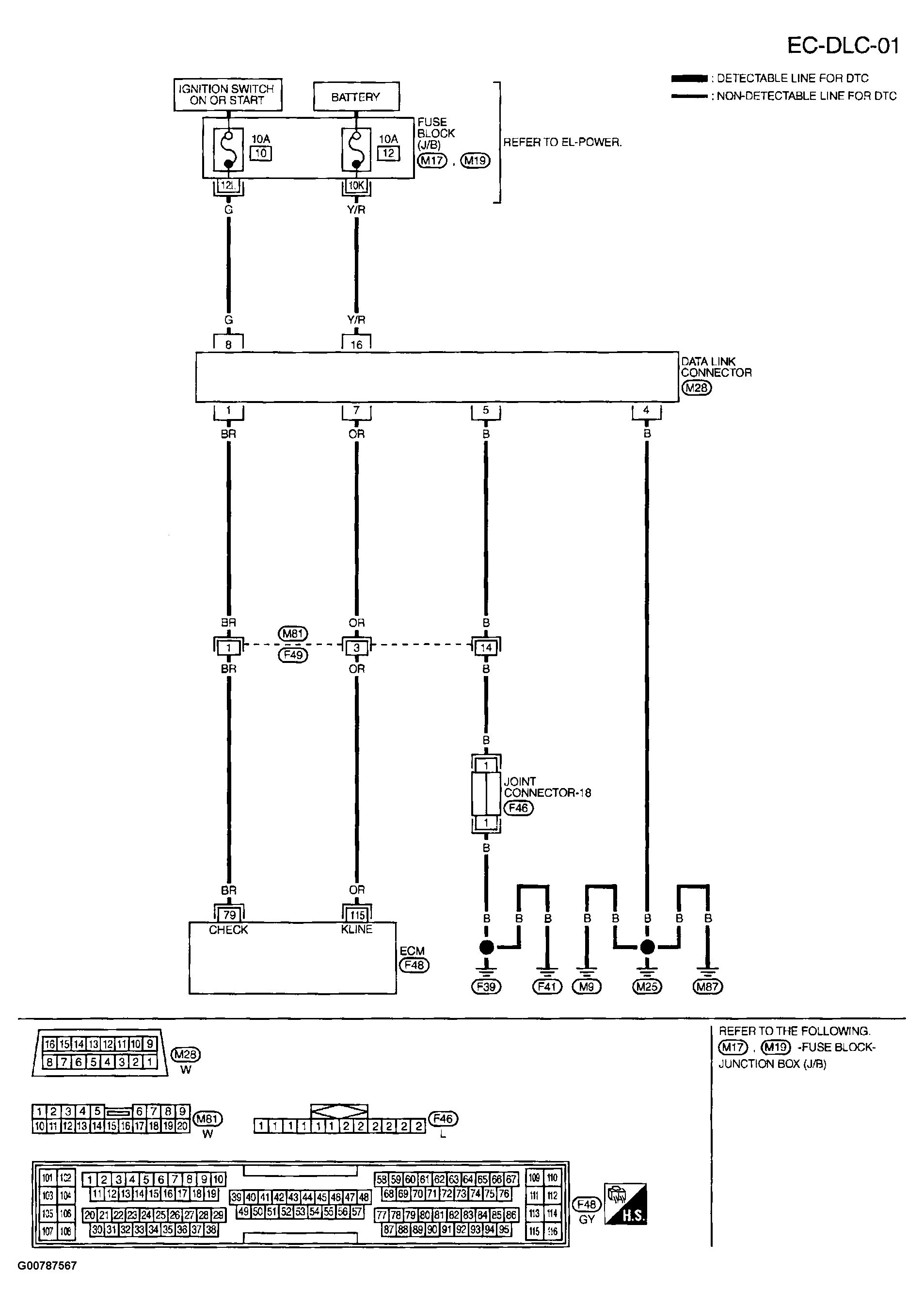

Fig 1: Displaying Wiring Diagram (EC-DLC-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
