Tightening Torque

Tighten EVAP canister as shown in Fig 1 .

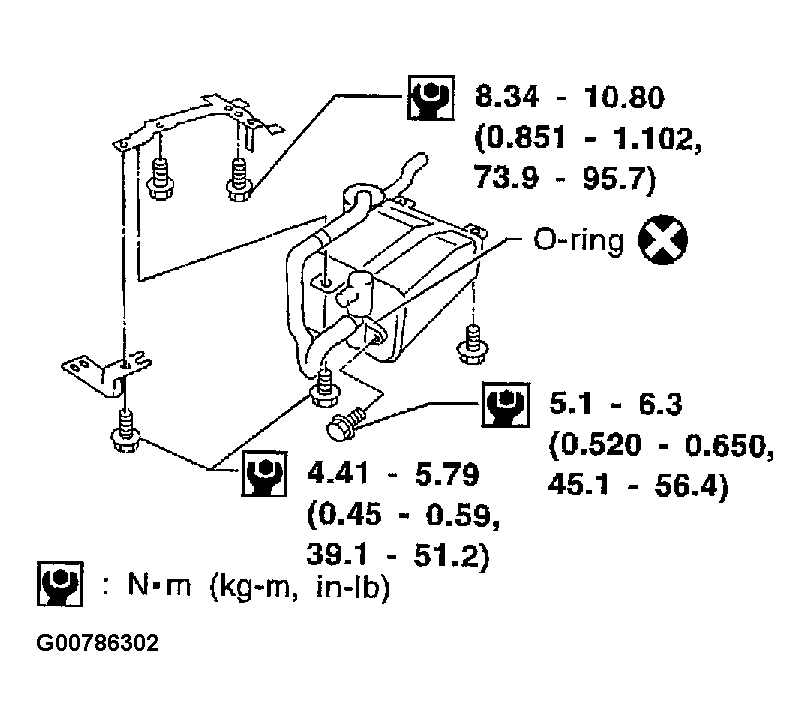

Fig 1: Identifying EVAP Canister Tightening Torque

Courtesy of NISSAN MOTOR CO., U.S.A.

Make sure new O-ring is installed properly between EVAP canister and EVAP canister vent control valve.
